8 – Troubleshooting and System Tests

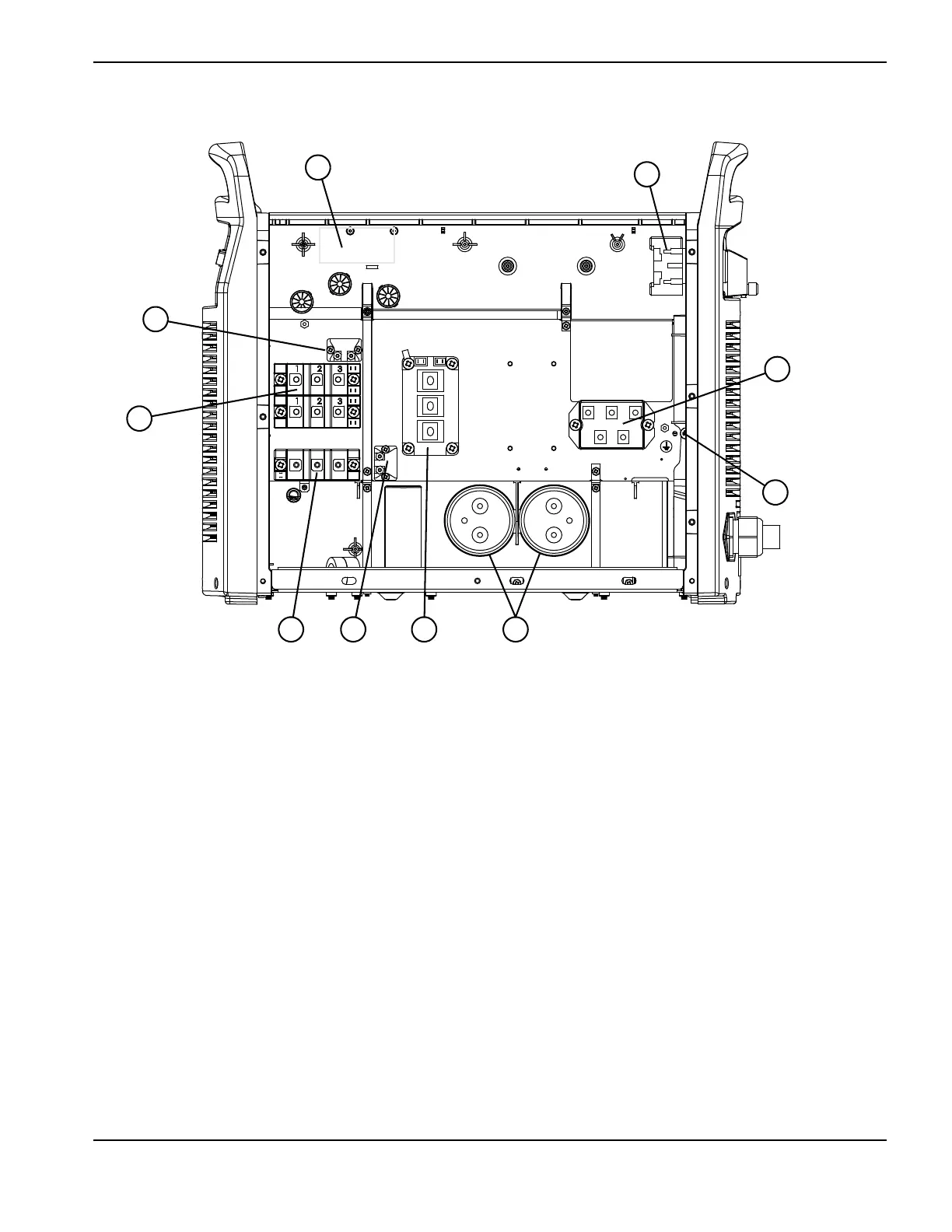

Figure 15 – Power supply overview, all systems (power board removed)
1
2
3 4 5 6
7
8
9
10
1 Output snubber resistor
2 Output diode bridge
3 Pilot arc IGBT
4 Inverter snubber resistor
5 Inverter IGBT module
6 Bulk capacitors
7 Ground
8 Input diode bridge
9 Power switch (S1)
10 Optional serial board
