250 Powermax125 Service Manual 808070
9 – Power Supply Component Replacement
3. Remove the 2 mounting screws from the base of the PFC inductor.

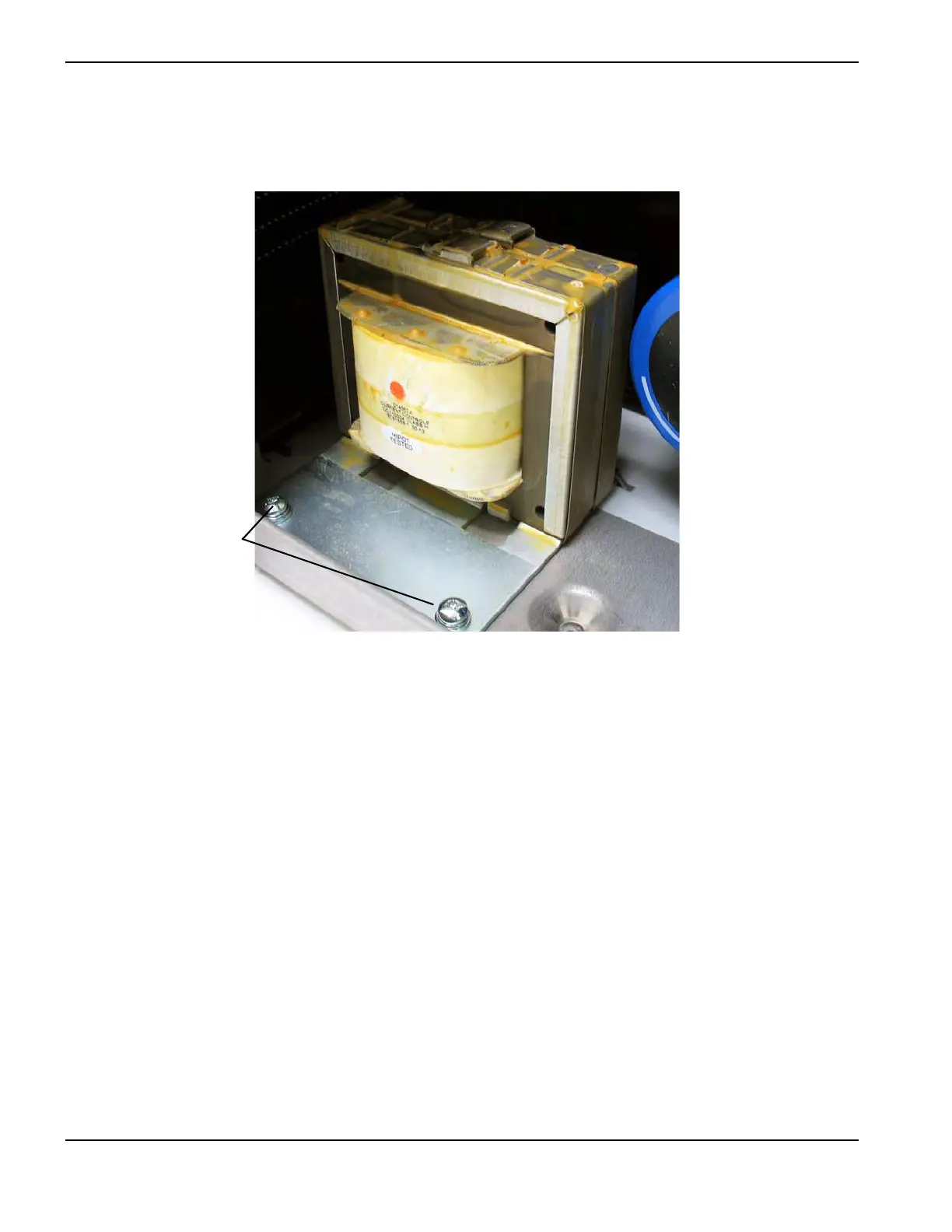

Figure 105
4. Lift the PFC inductor out of the power supply, while carefully guiding the PFC inductor wires through the opening in
the bottom of the center panel.
PFC inductor mounting
screws
