Hypertherm Powermax 125 Service Manual

70 Powermax125 Service Manual 808070
6 – Machine Torch Setup
4. If you are disassembling the full-length machine torch, unscrew the positioning sleeve from the coupler. If you are
disassembling the mini machine torch, unscrew the adapter from the coupler.
5. Unscrew the coupler from the mounting sleeve.
6. Remove the three screws from the consumables end of the mounting sleeve, and slide the mounting sleeve off the
front of the torch body.

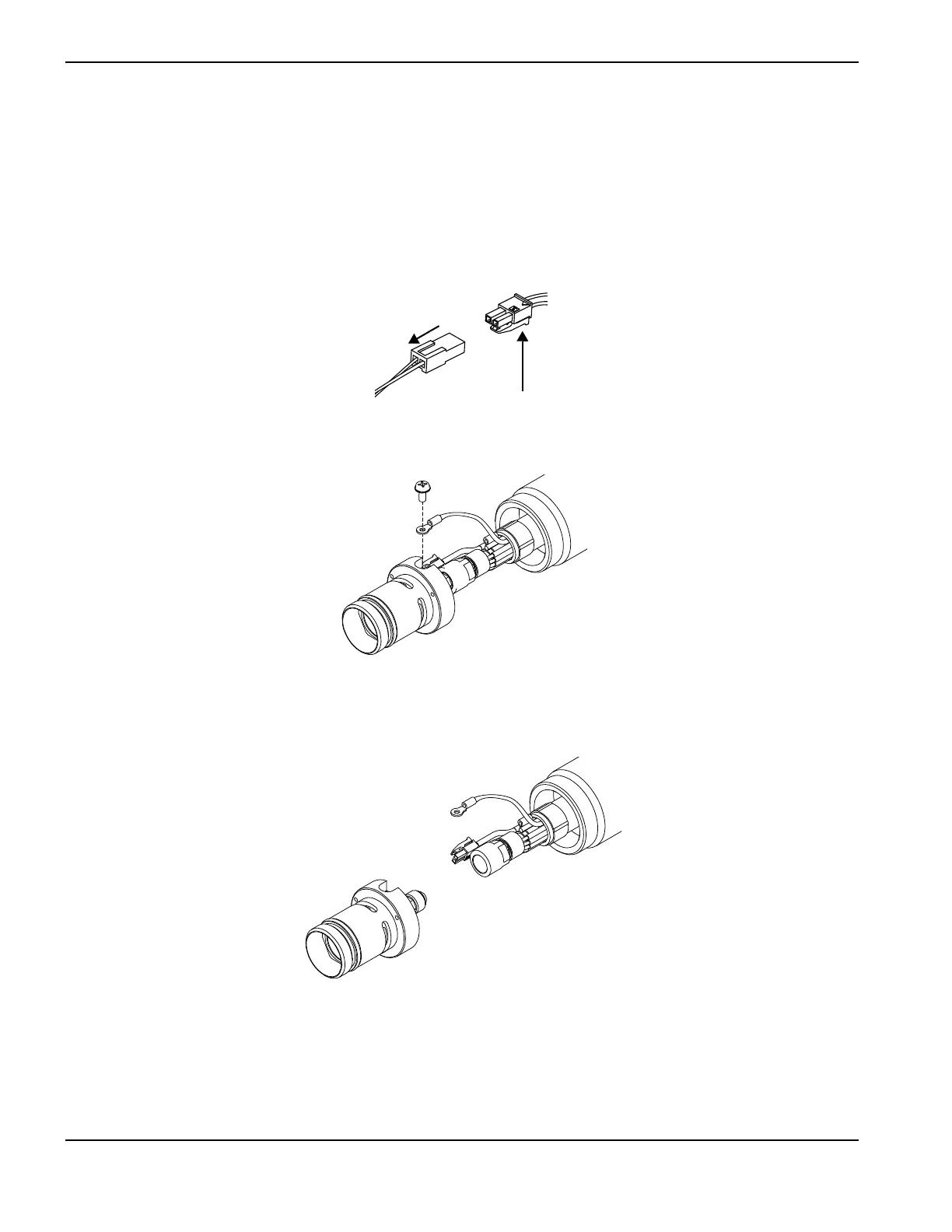

7. Disconnect the wire connector for the cap-sensor switch.
8. Remove the screw that secures the torch’s pilot wire to the torch body.
9. Use 5/16-inch and 1/2-inch wrenches, or adjustable wrenches, to loosen the nut that secures the gas supply line to
the torch lead. Set the torch body aside.
10. Slide the coupler off the front of the torch lead.
11. If you are disassembling a full-length machine torch, slide the positioning sleeve off the front of the torch lead. If you
are disassembling a mini machine torch, slide the adapter off the front of the torch lead.

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
