277

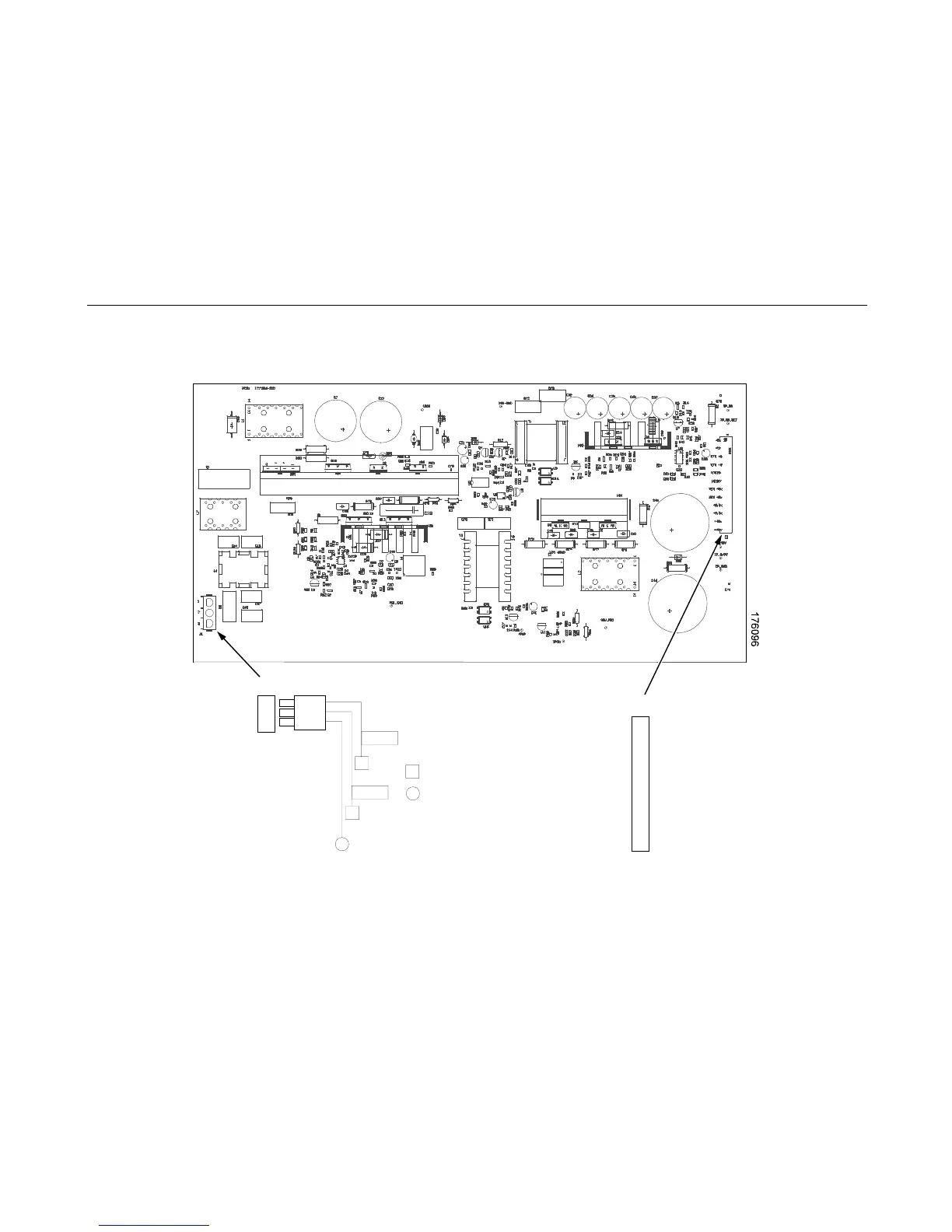

Power Supply: 6500-v
05, -v5P, -v10, and -v1P
1
2
3
P1
LOAD
GND
LOAD
= RING TERMINAL
= FAST-ON TERMINAL
1
2
3
4
5
6
7
8
9
10
11
12
N TEMP
N STDBY
P101
White
Orange
Red
Red
Black
Black
Brown
Brown
Yellow
Yellow
Blue
Blue
+5V
+5V
+5V RTN
+5V RTN
+48V RTN
+48V RTN
+8.5V
+8.5V
+48V
+48V
AC
AC Common
Chassis Ground
J1
Cable Assembly
AC In
Power Supply
1
2
3
