Replacing The Constant Force Spring
1. Remove the stacker assembly from the printer (page 465).
ATTENTION
In the next step, do not over-tighten the tie wraps or string. Tighten the tie wraps or string just enough to hold the
elevator up.
2. Raise the elevator assembly to about 1/4 inch short of its highest position and secure it to the vertical rails using tie wraps
or string. Do not over-tighten the tie wraps or string; tighten them just enough to hold the elevator up. (Figure 82.)

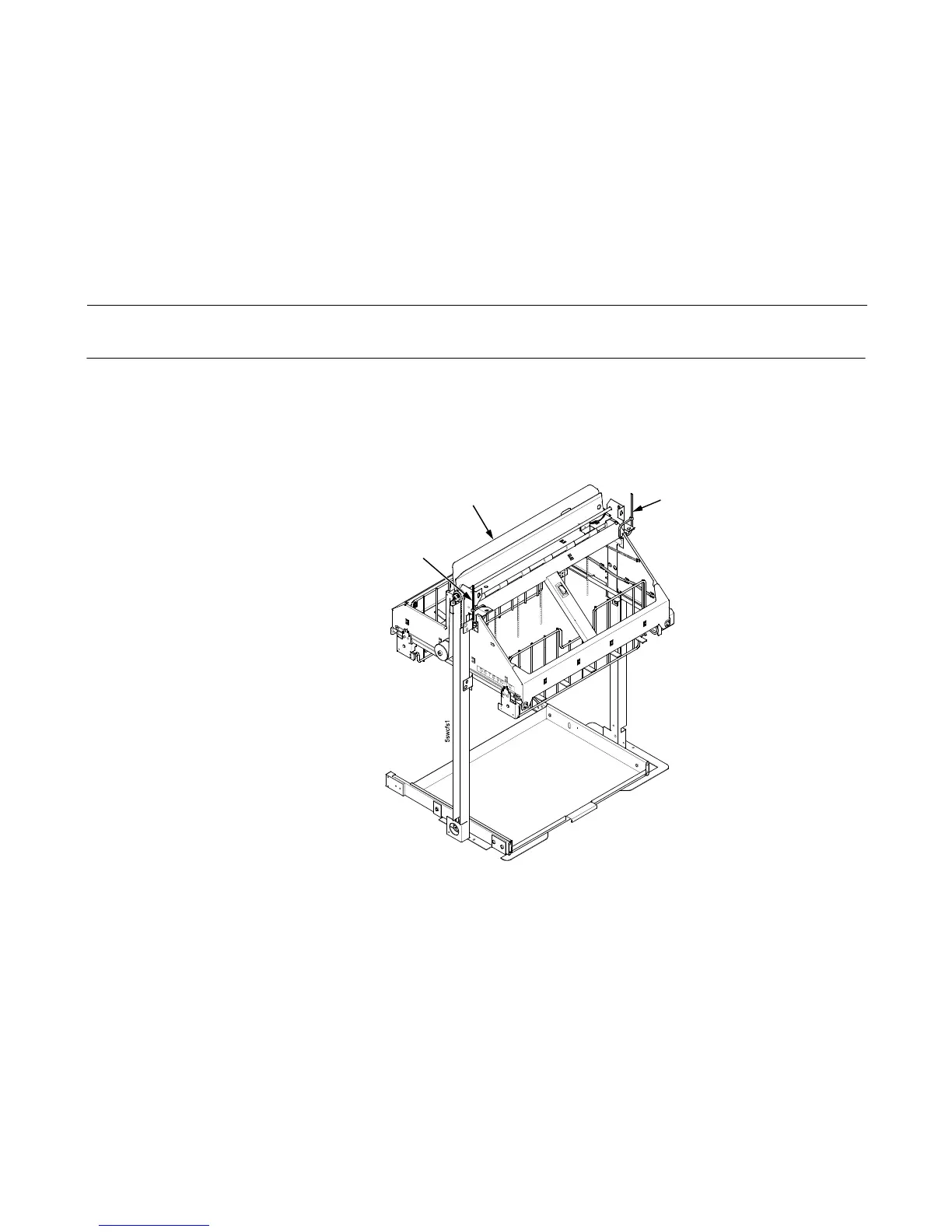

Figure 82. This figure shows how to tie the elevator assembly preparatory to removing the constant force spring.
Tie Wrap
Tie Wrap
Elevator
Assembly
