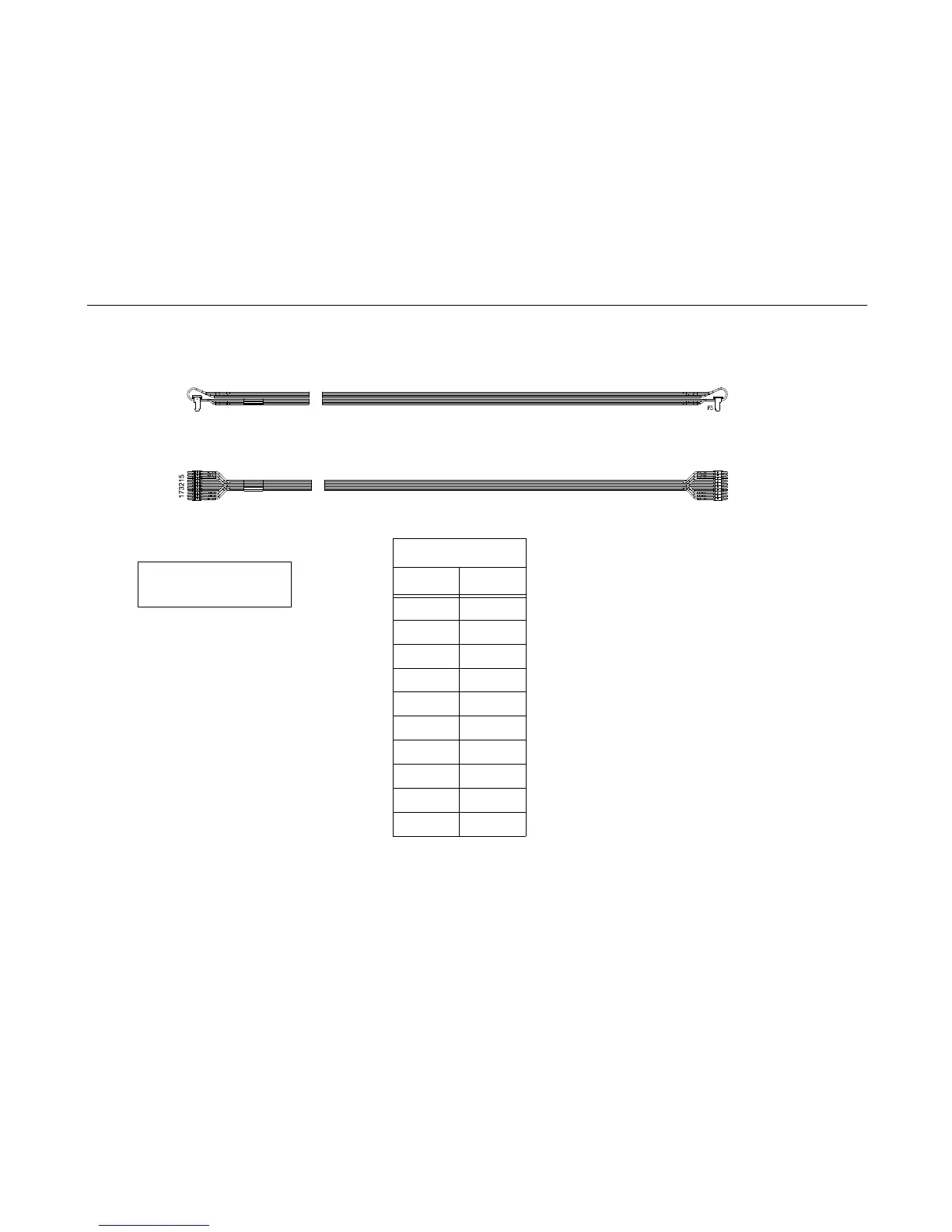

Cable Assembly, Hammer Bank Power
02N6214
To Shuttle
IMPORTANT:
Use this cable on the 6500-v20
printer. On all other Infoprint 6500
printers use 39U2533, shown on the
previous page.
P06
P3
To Power Supply
Wire Table
P06 P3
21
12
43
34
65
56
87
78
10 9
910
