Replacing The Timing Belts
1. Remove the stacker assembly from the printer (page 465).
2. Raise the elevator assembly to its highest position and secure it to the vertical rails using tie wraps or string. (Figure 82,
page 485.)
3. If you are removing the left timing belt, remove the screw and washer from the pulley at the bottom of the left vertical rail,
and remove the pulley. (Figure 84.) Go to step 6.
4. If you are removing the right timing belt, remove the two metric Allen screws that secure the timing belt motor to the right
vertical rail. (Figure 84.) Go to step 5.

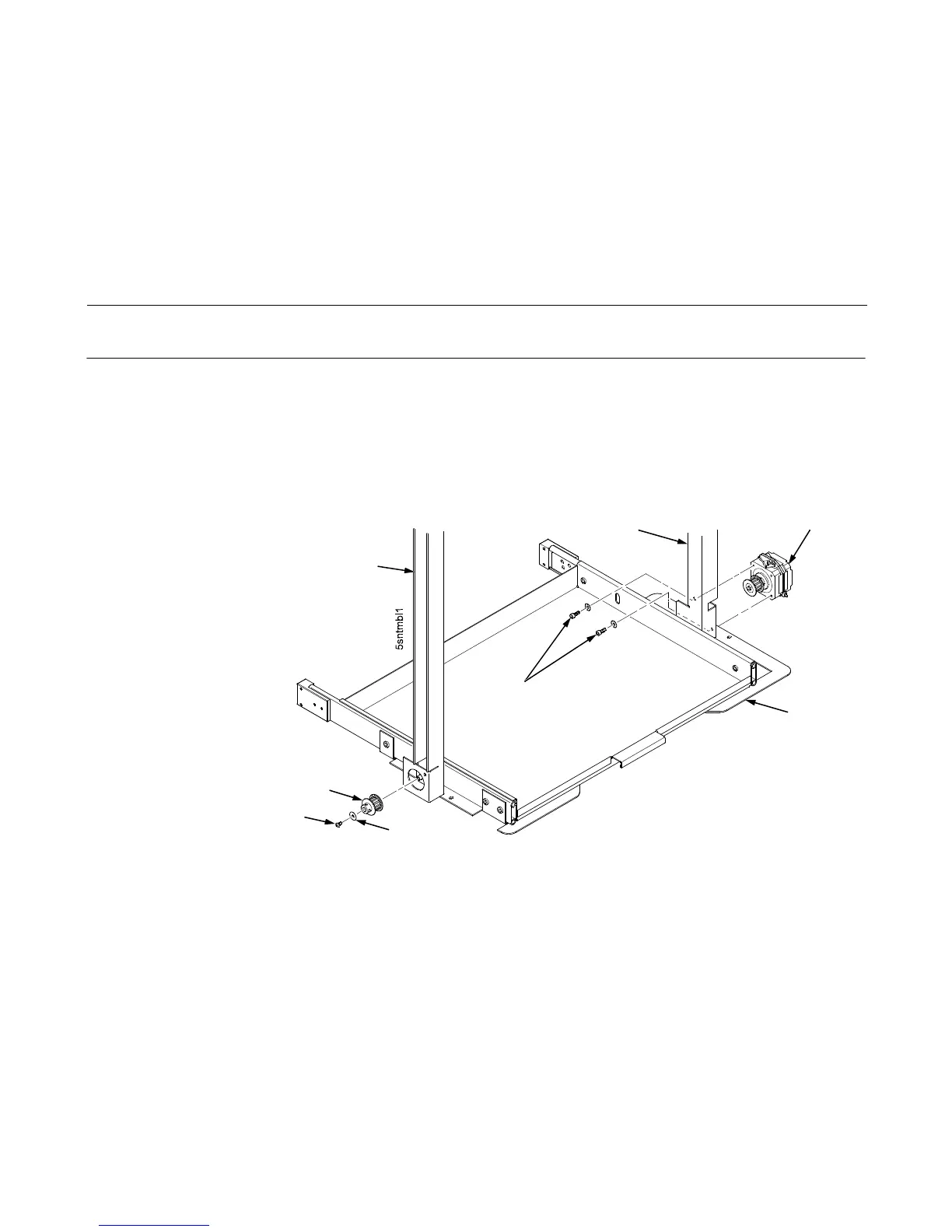

Figure 84. This figure shows how to remove the timing belt pulley and timing belt motor.
Metric Allen Screw
and Washer
Right Vertical Rail
Stacker Base
Pulley
Washer
Screw
Left Vertical Rail
Timing Belt Motor
