5. Loosen the two setscrews on the motor pulley and remove the pulley. Unplug the motor cable, if necessary. (Figure 85.) Go
to step 6.

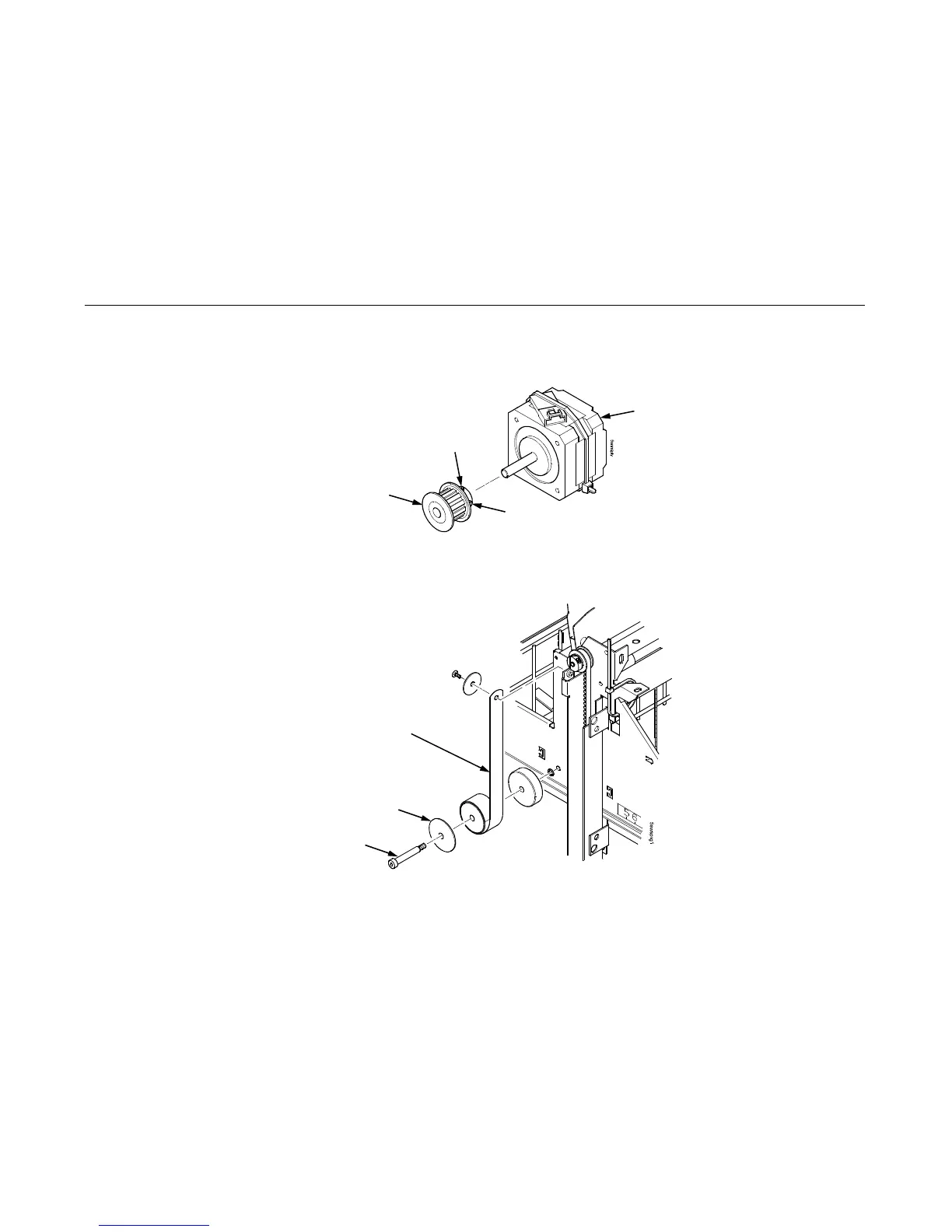

Figure 85. This figure shows how to remove the pulley from the timing belt motor.
6. Remove the shoulder screw, washers, and spacer that secures the constant force spring to the vertical rail. (Figure 86.)
Figure 86. This figure shows how to release the constant force spring.
Timing Belt Motor
Setscrew
Pulley
Setscrew
NOTE: Left is shown.
Right is the same.
Large Washer
Constant Force Spring
Shoulder Screw
