7. Remove two Allen screws from the belt clamp that secures the timing belt to the stacker frame. (Figure 87.)

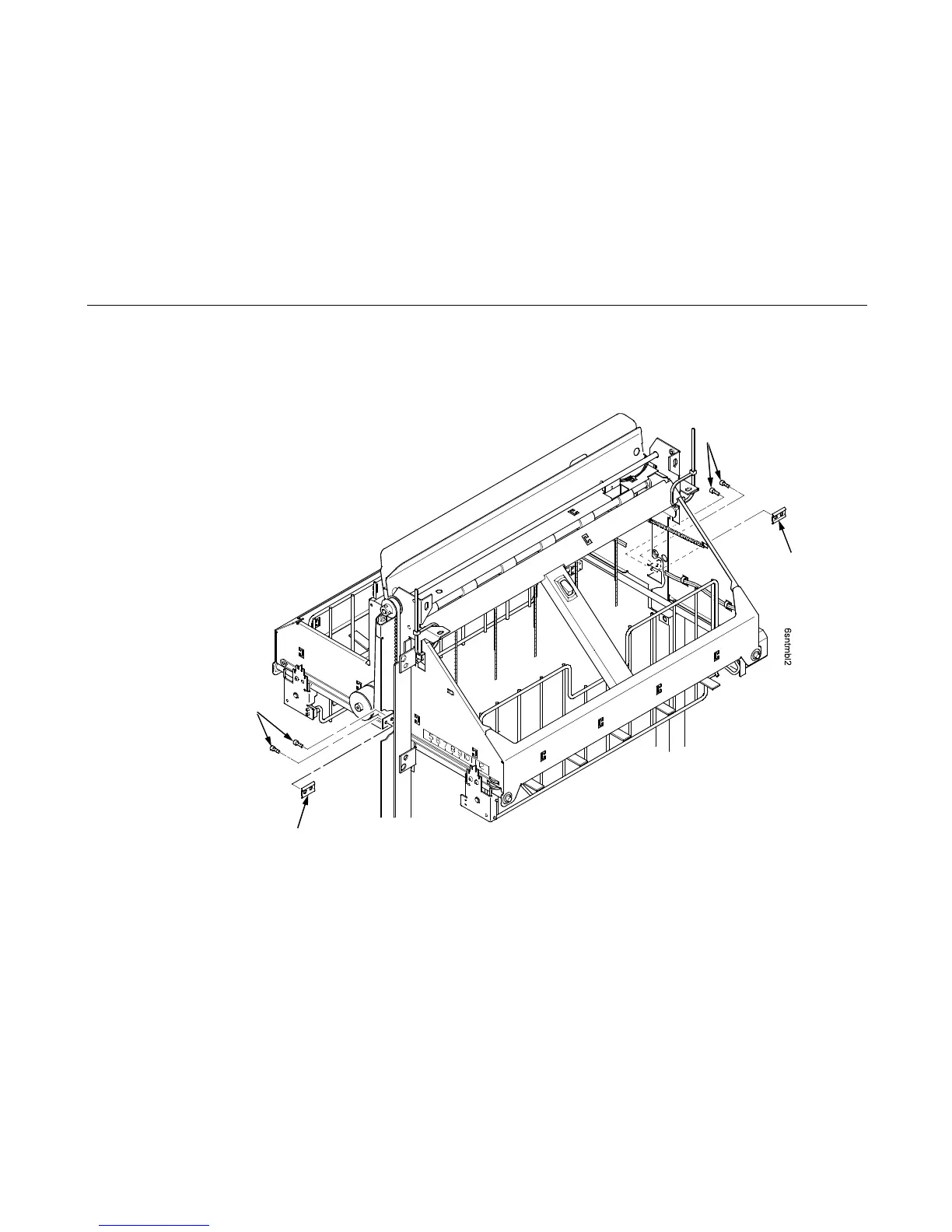

Figure 87. This figure shows how to remove the timing belt clamps.

Allen Screw

Belt Clamp

Allen Screw
