8. Remove the timing belt by working it around the vertical rail and constant force spring. (Figure 88.)

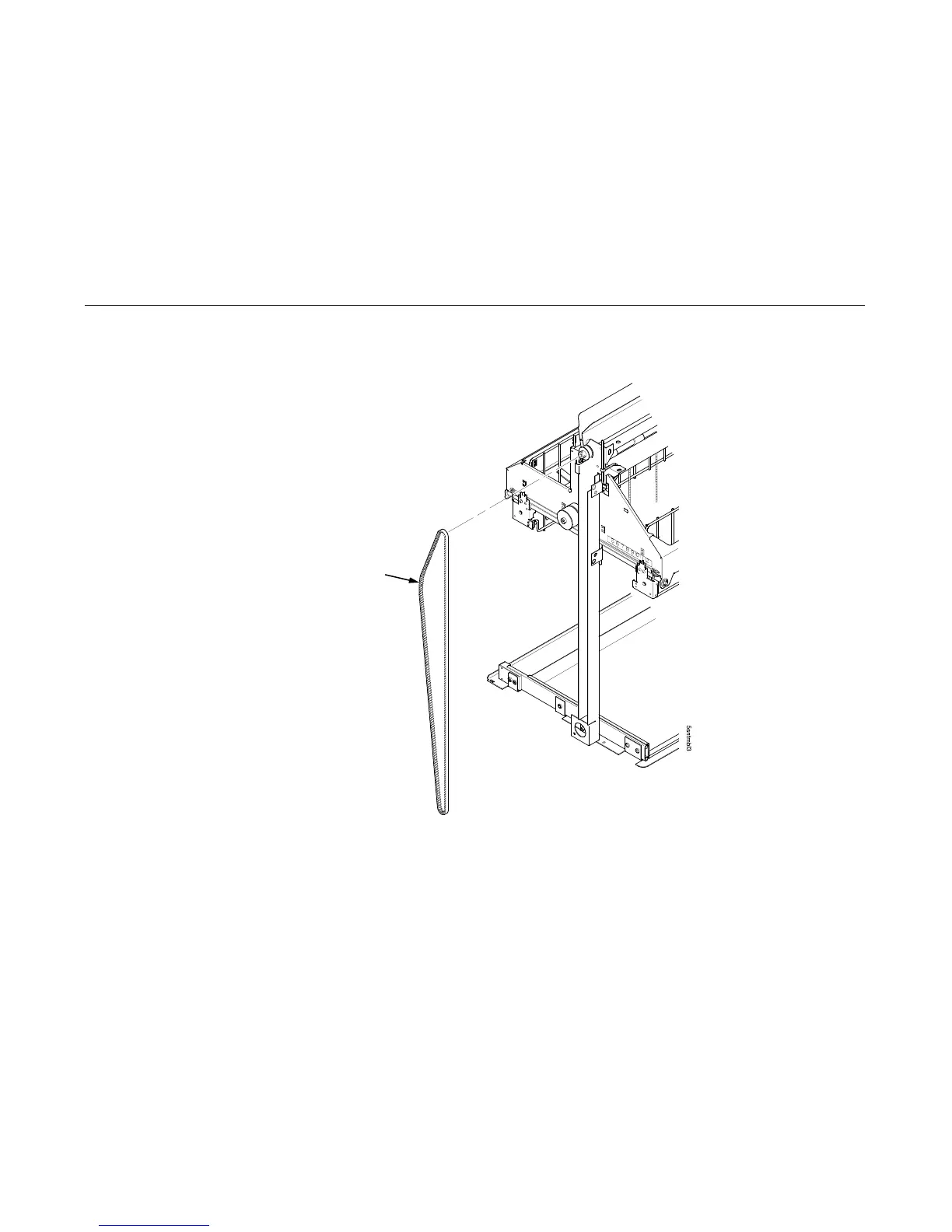

Figure 88. This figure shows how to remove the timing belt.
9. To install a timing belt, reverse the steps of this procedure.
NOTE: Left timing
belt is shown. Right is
the same.
Timing Belt
