Paper Scale Alignment (Figure 26)
373
Paper Scale Alignment (Figure 26)
1. Open the printer cover.
2. Load paper.
3. Connect the power cord to the AC power source.
4. Set the printer power switch to 1 (on).
5. Verify that the shuttle cover (1) is properly installed (page 326).
6. Print a full 136 column line by selecting and running one of the operator print tests (page 213).
7. Check alignment of the scale to the print at column positions 1 and 136.
8. If adjustment is necessary, loosen the three button-head 5/64 inch hex screws (2).
9. Position the scale (3) so that column positions 1 and 136 line up with the first and last characters on the 136 character
printout.
10. Tighten the 5/64 inch button-head screws (2).
11. Close the printer cover.
Legend:
1) Shuttle Cover
2) Screw, Button-Head, 5/64 inch hex (3)
3) Paper Scale

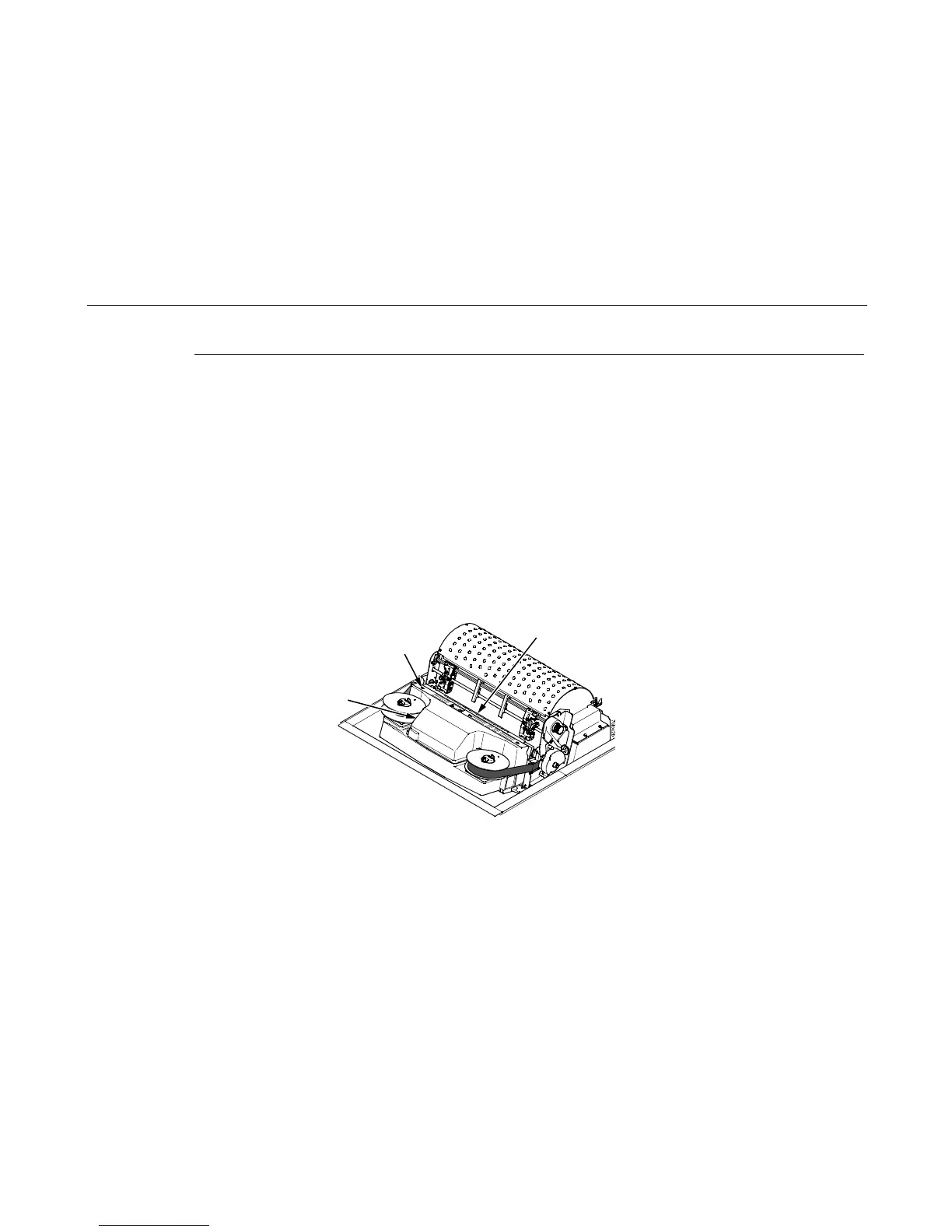

Figure 26. This figure shows how to adjust the paper scale.
1
2
3
