How To Operate The Power Stacker

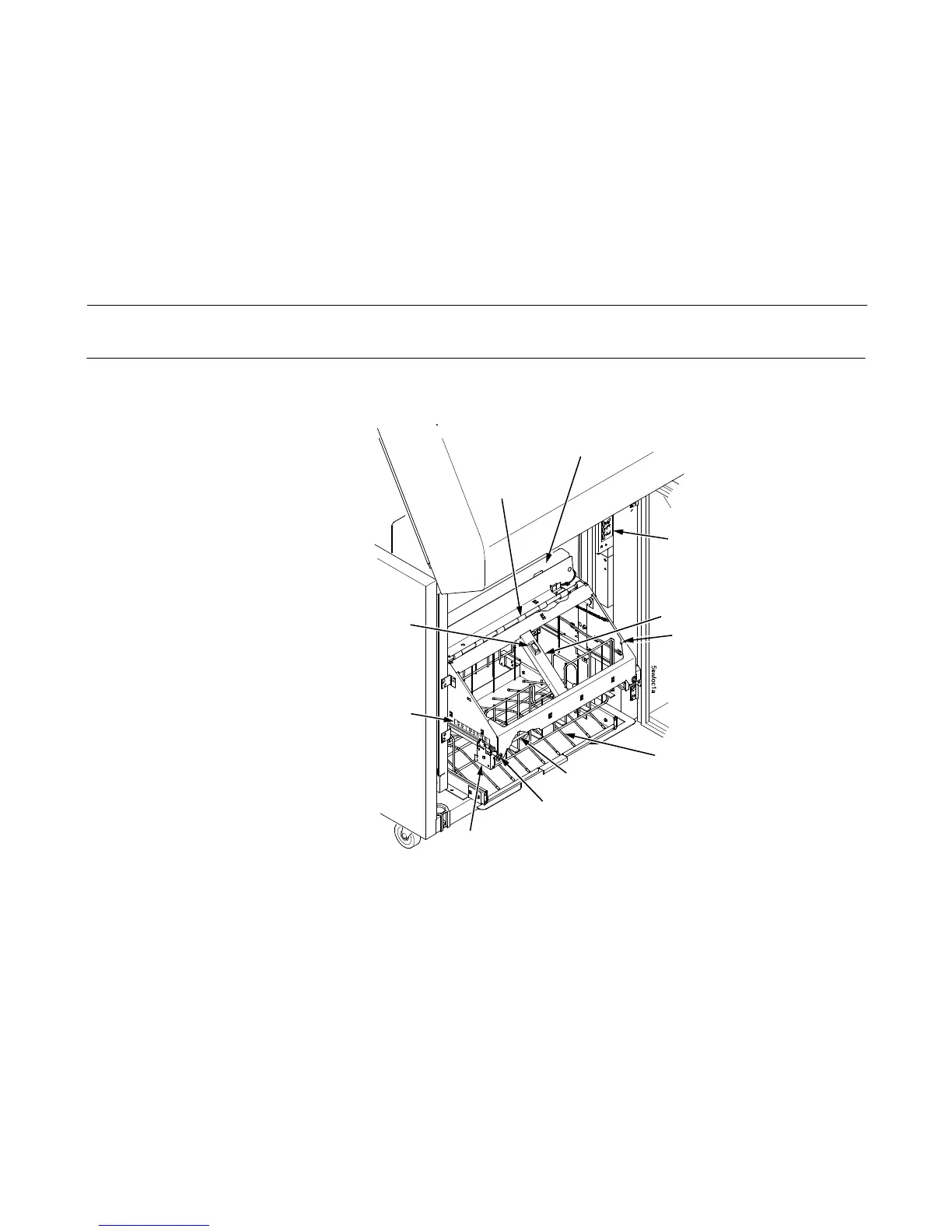

Figure 56 shows the locations of the principal components of the power stacker.
Figure 56. This figure shows the locations of the main parts of the power stacker.
Pinch Rollers
Paper Throat
Stacker
Operator
Panel
Elevator
Assembly
Wire Paper Tent
In Pull Out
Paper TrayPaddle Shaft
Adjustment Rod (2)
Bearing Bracket
Paper Length
Indicator
Elevator
Disable
Switch
Elevator Lift
Handle
