Paper Guide Assembly
348
Paper Guide Assembly
This procedure applies only to cabinet models.
Removal
1. Prepare the printer for maintenance (page 313).
2. Open the printer cover.
3. Loosen—do not remove—the three paper guide assembly hold-down screws (Figure 19).
4. Slide the paper guide assembly to the left and lift it off the card cage.
Installation
1. Position the paper guide assembly offset slightly to the left on the card cage with the keyway cutouts over the three
loosened hold-down screws (Figure 19).
2. Slide the paper guide assembly to the right, engaging the three hold-down screws in the keyway slots. Slide the paper
guide assembly to the right as far as it will go.
3. Tighten the three hold-down screws (Figure 19).
4. Return the printer to normal operation (page 314).

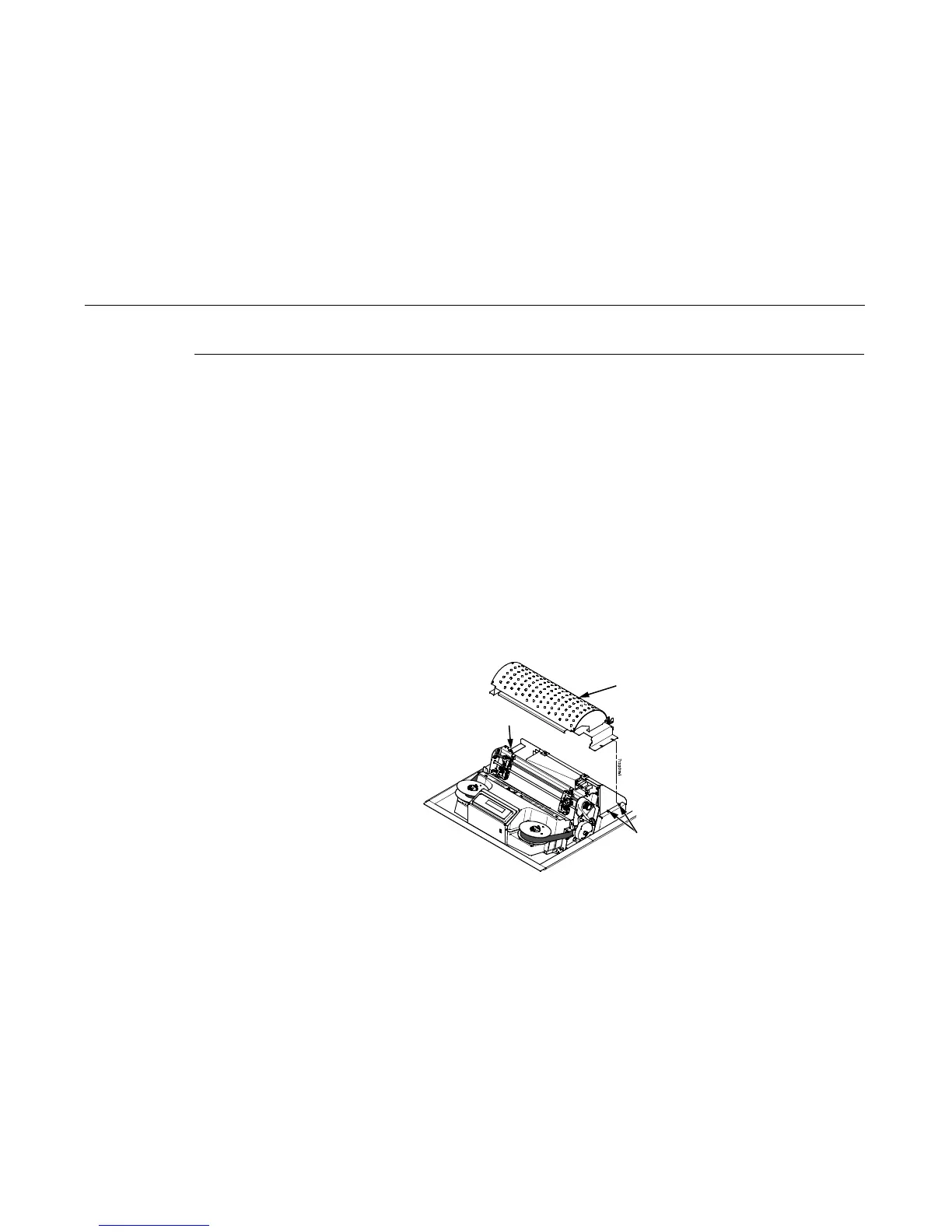

Figure 19. This figure shows how to remove the paper guide assembly from the card cage.
Paper Guide Assembly
Screw
Screw
To Next Page
