Platen
352

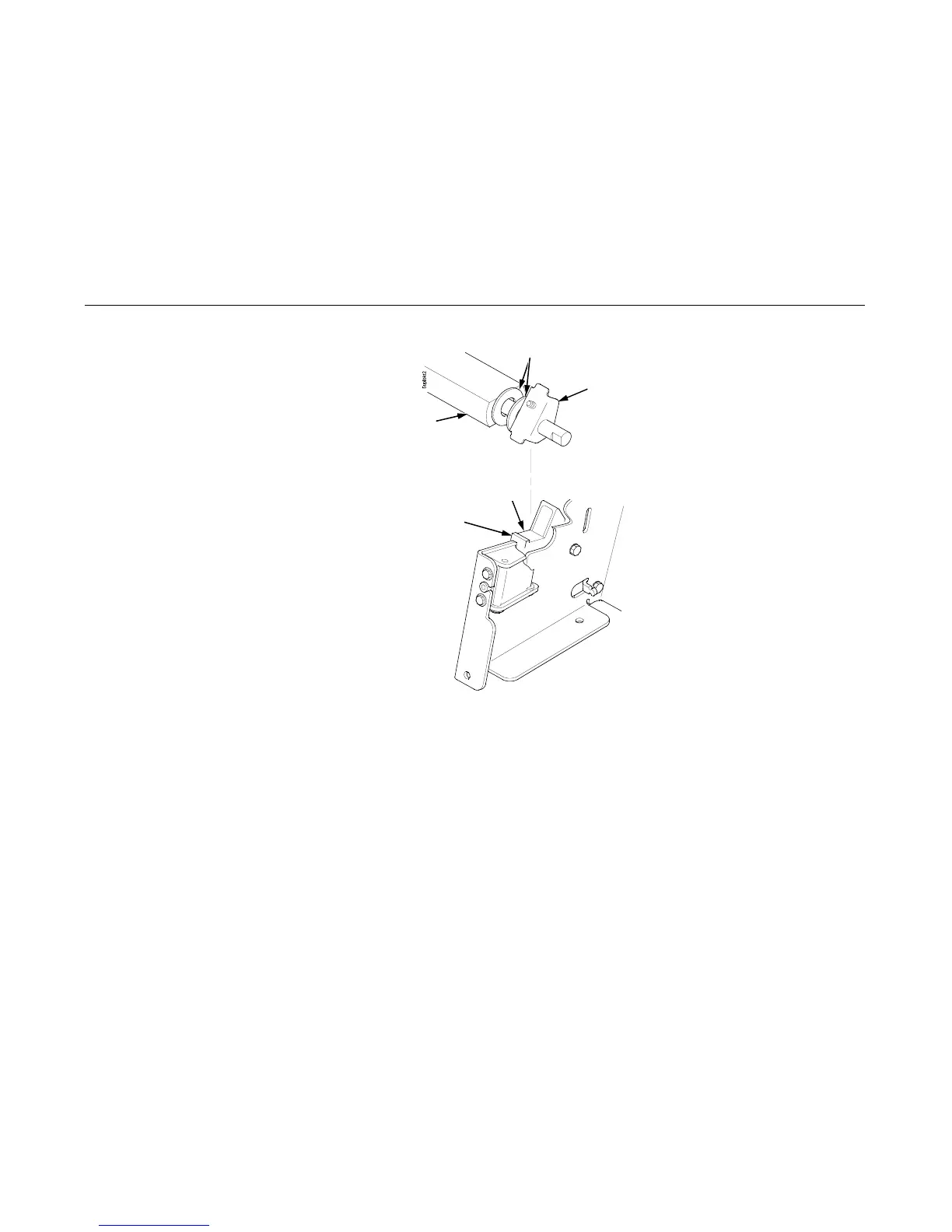

Figure 21. This figure shows how to position the platen adjust brackets on the mechanism base and wear saddles.
9. Slide the right ribbon guide assembly into the side plate and install the two 7/32 inch screws and washers. (See Figure 46,
page 416, items 11, 13 and 14.)
10. Install the interlock switch bracket:
a. Slide the bracket, with the interlock switch assembly attached, onto the platen shaft and up against the right side plate.
b. Install the Phillips #1 screw and washer securing the switch and bracket.
11. Install the black metal washer onto the left side of the platen shaft. (See Figure 45, page 413, item 26.)
12. Apply bearing lubricant to the nylon bearings in the two spring links, slide the spring links onto the two platen shafts, and
connect the springs to the spring hooks in the side plates. (See Figure 45, page 413, items 16, 17, and 18.)
Platen Adjust
Bracket
Washers
Platen
Wear
Saddle
Mechanism
Base Platen
Seat
To Next Page
