476
12. Position the elevator assembly at the bottom of the vertical rails. (Figure 73.)
13. Connect the elevator I/O cable to the elevator assembly and install the two 4-40 x 1/4 inch screws, as shown in Figure 73.

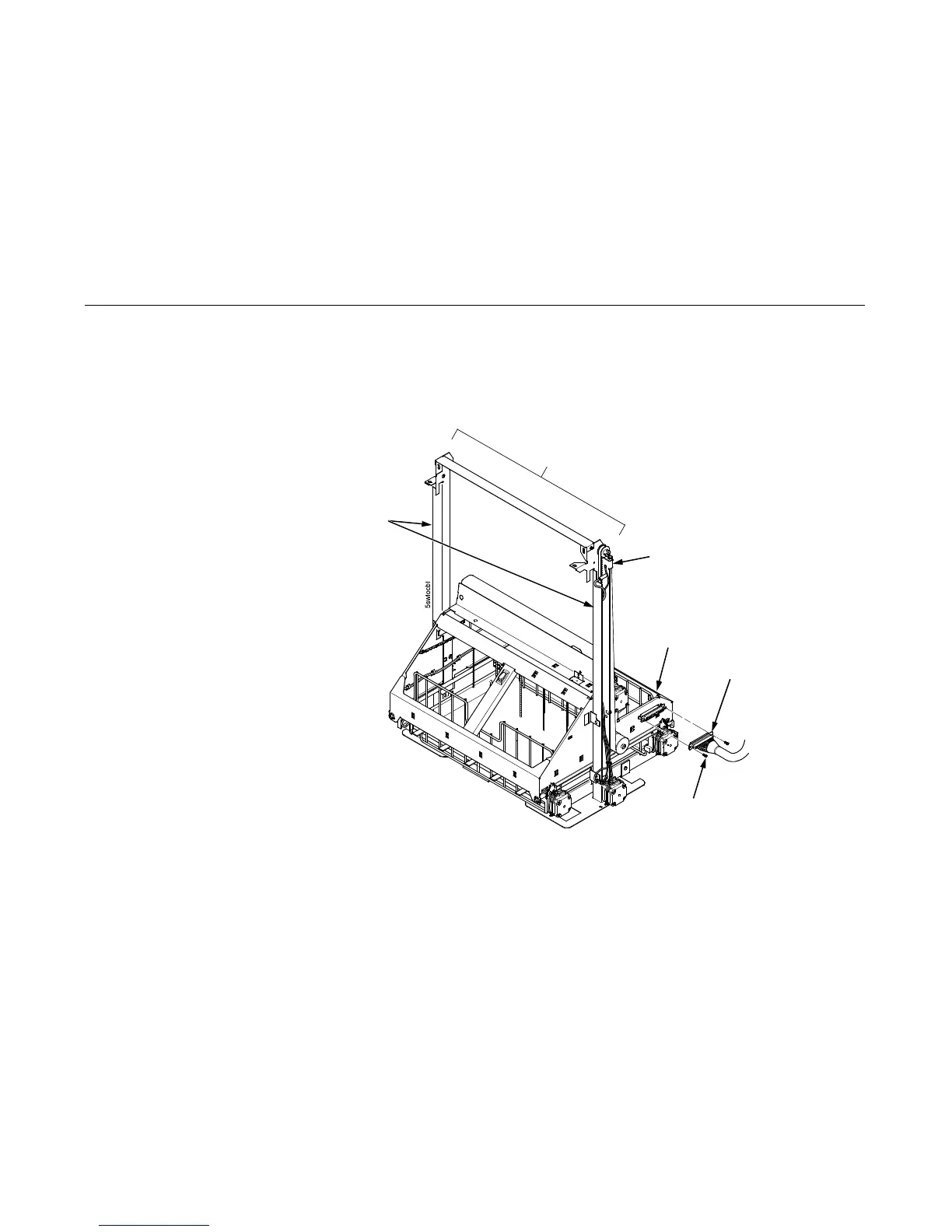

Figure 73. This figure shows where to connect the stacker I/O cable to the stacker elevator.
Stacker I/O Cable
Vertical Rail
Elevator Assembly
Screw, 4-40x1/4, Pan Head (2)
Do not grasp the
stacker in this area to
lift it.
Lift the stacker by
grasping the vertical rails.
To Next Page
