16. Connect the stacker cables to the rear of the stacker operator panel assembly and make sure the ejector levers close over
the connectors. (Figure 75.)
17. Press rail cable connector P107 into the operator panel until the ejectors close, then tie wrap the ejectors to the connector.
(Figure 75, detail.)

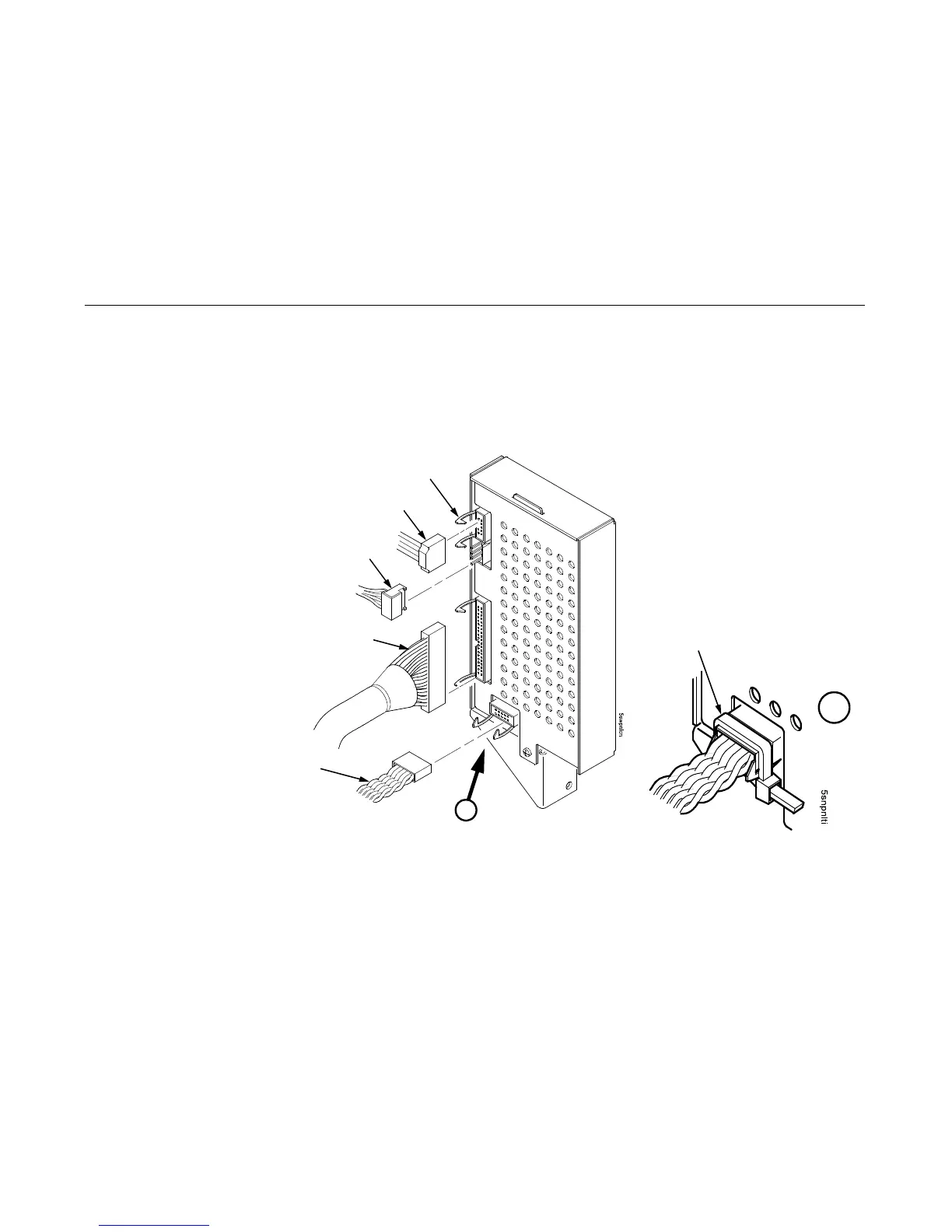

Figure 75. This figure shows how to install the operator panel cables to the rear of the stacker operator panel.
A
Tie Wrap
Logic Cable (P104)
Power Cable
Elevator I/O Cable
(P102)
Rail Cable (P107)
A
Ejection Lever
