Chapter 3. Systems management 135
From the switch overview page, right-click one of the switches, and select Remote access 
Launch Web Browser. It will open the switch web GUI login prompt, from where the switch

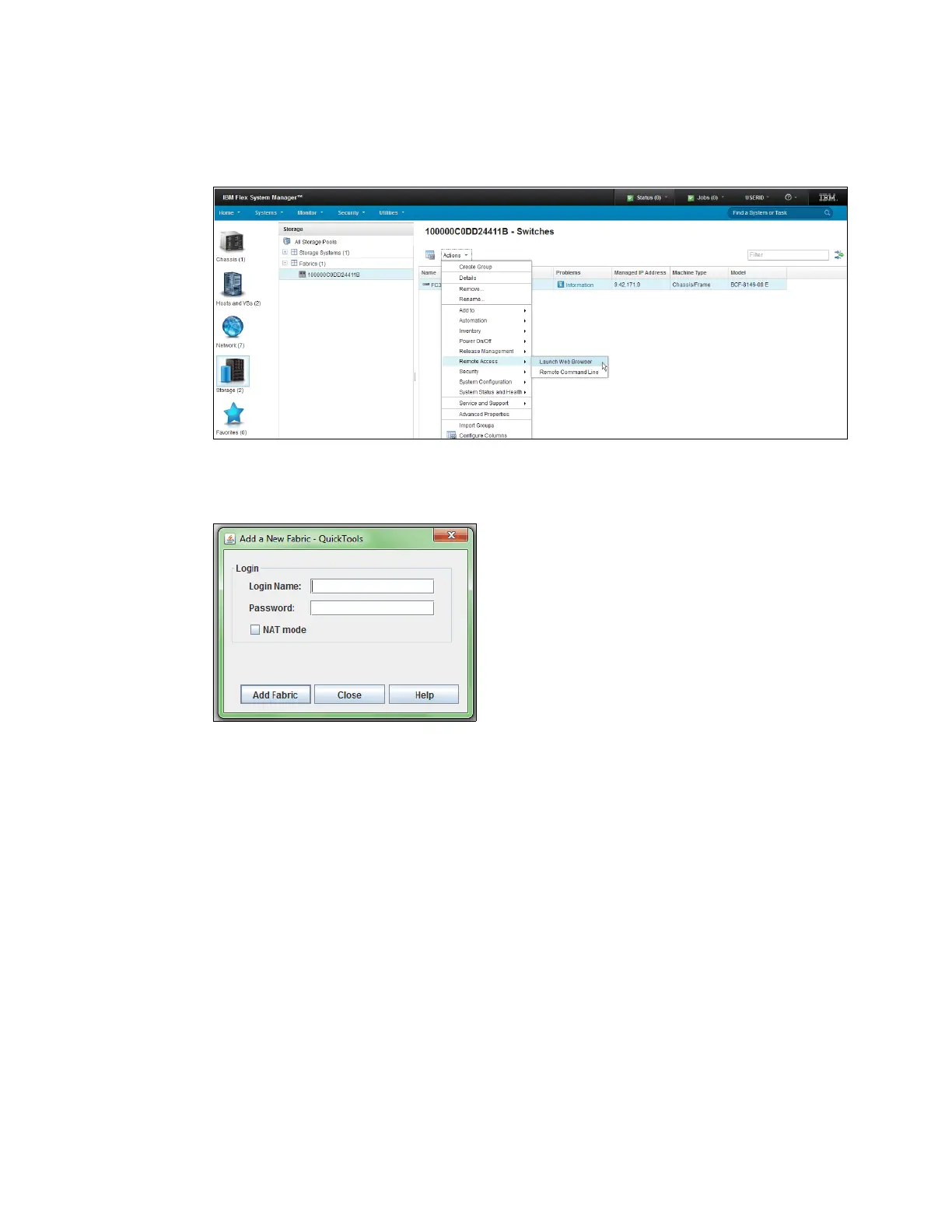

can be configured. Figure 3-70 shows how to open the switch web GUI.
Figure 3-70 IBM FSM Explorer - Storage page - Switch GUI
Figure 3-71 shows the FC switch login page.
Figure 3-71 FC Switch login
3.3.5 Accessing I/O modules using FSM
In an IBM Flex system, node to node communication happens within the Chassis.
Network Control
Network Control is a plug-in that enables utilization of integrated network management
capabilities of an FSM. It has the following key features:
򐂰 Logical network management allows management of port profiles, VLANs, ACLs, and
QoS in virtualized, live-migration environments.
򐂰 It uses 802.1Qbg standards in integrated switches and PowerVM, KVM, and IBM “Osiris”
vSwitch for VMware.
򐂰 Optional Fabric Management extends QoS Management by providing advanced
monitoring, VM priority, and rate limiting.
򐂰 Network monitoring at a glance is provided by network topology perspectives with the
ability to see the components affected by network outages.
򐂰 It enables end-to-end network and virtualization management.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
