IBM V7000 User Manual

204 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
5.3.2 Monitoring Events menu
IBM Flex System V7000 Storage Node might, from time to time, show the Health Status
status bar as Yellow (Degraded) or even Red (Critical). Events on the IBM Flex System V7000
Storage Node system are logged in the Event Log of the Monitoring Events menu.
An example of one of the most common errors that can be reviewed and fixed from the Event
Log is the error 1630 “Number of Device Logins Reduced”. This error happens when an
underlying disk array loses connectivity through one or more of its ports that are zoned to and
connected to IBM Flex System V7000 Storage Node. A few possible reasons for that could be
a faulty Fibre Channel connection, a SAN-switch that was rebooted, or if an underlying disk
array controller was taken out for service.
Such events are logged as errors and need to be fixed before IBM Flex System V7000
Storage Node recovers out of the error condition it was in, due to the event.
To navigate to the Event Log, hover the cursor over the Monitoring icon and click Events
(Figure 5-18).

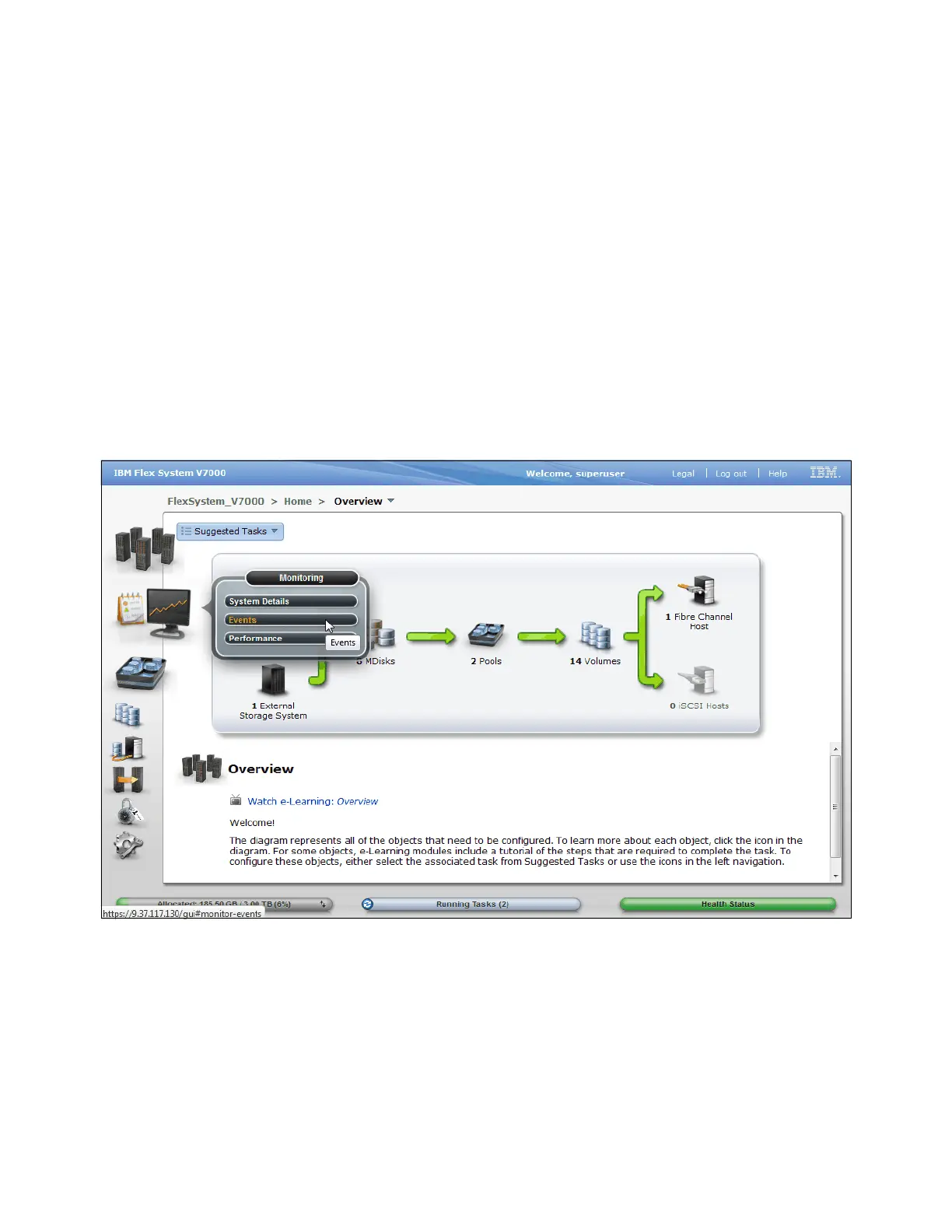

Figure 5-18 Navigate to the Monitoring Events menu

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
