192 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

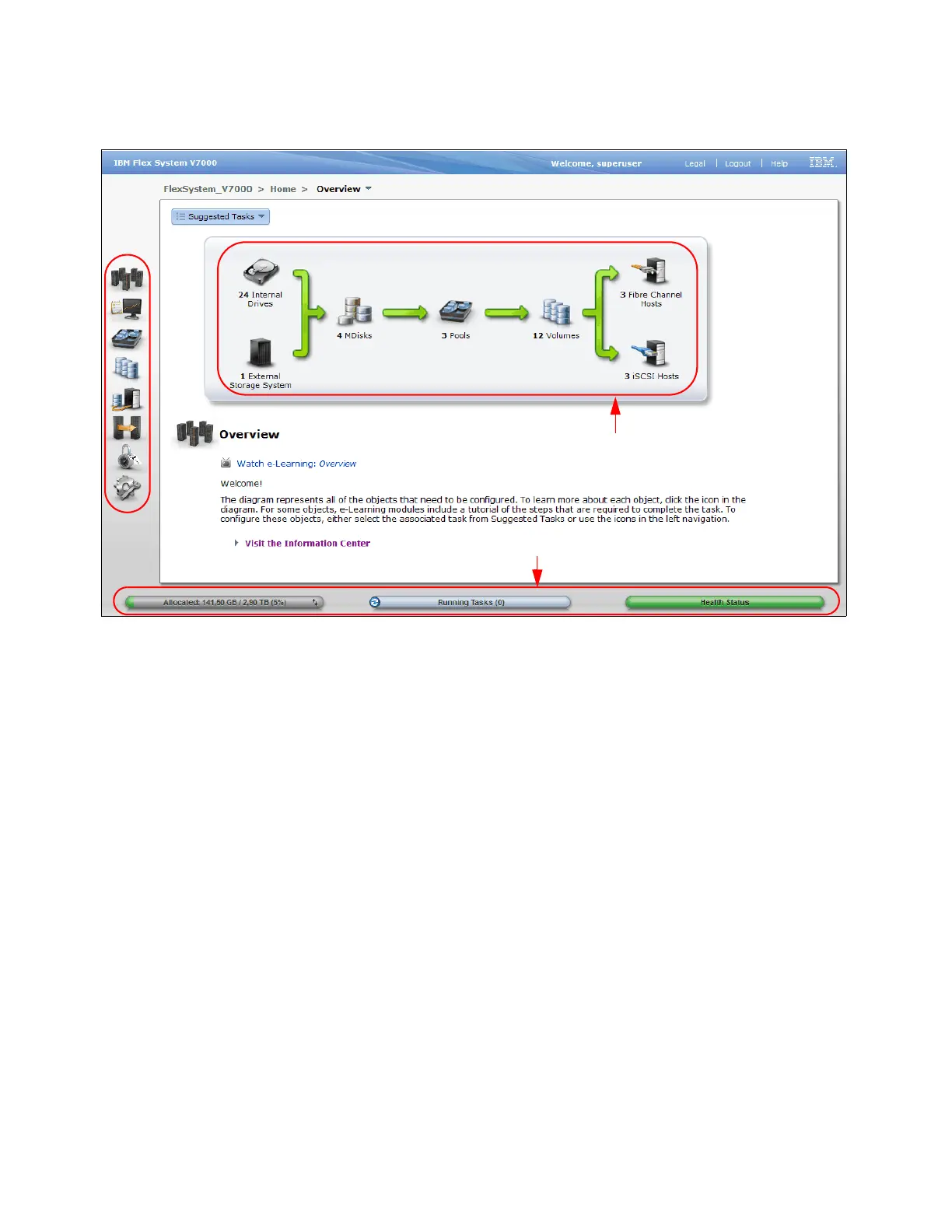

Figure 5-3 shows the main areas of the GUI Home Overview.
Figure 5-3 Main areas for management GUI navigation
5.1.3 Navigation
Navigating around the management tool is simple. You can hover the cursor over one of the
eight function icons on the left side of the window, which highlights the function icon and
shows a list of options. You can then move the cursor to the option you want and click it as
shown in Figure 5-4.
Status Indicators
Extended Help
Function Icons

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
