Chapter 13. Maintenance and troubleshooting 591
13.4.2 Using FSM Storage Management to manage a storage node
The FSM Storage Management summary page in the management software web interface
enables you to view storage capacity details and provides links to storage monitoring tasks.
To access the Storage Management summary page, from the Home page, click the Plug-ins
tab and click Storage Management. The Storage Management summary page opens, as
shown in Figure 13-11.

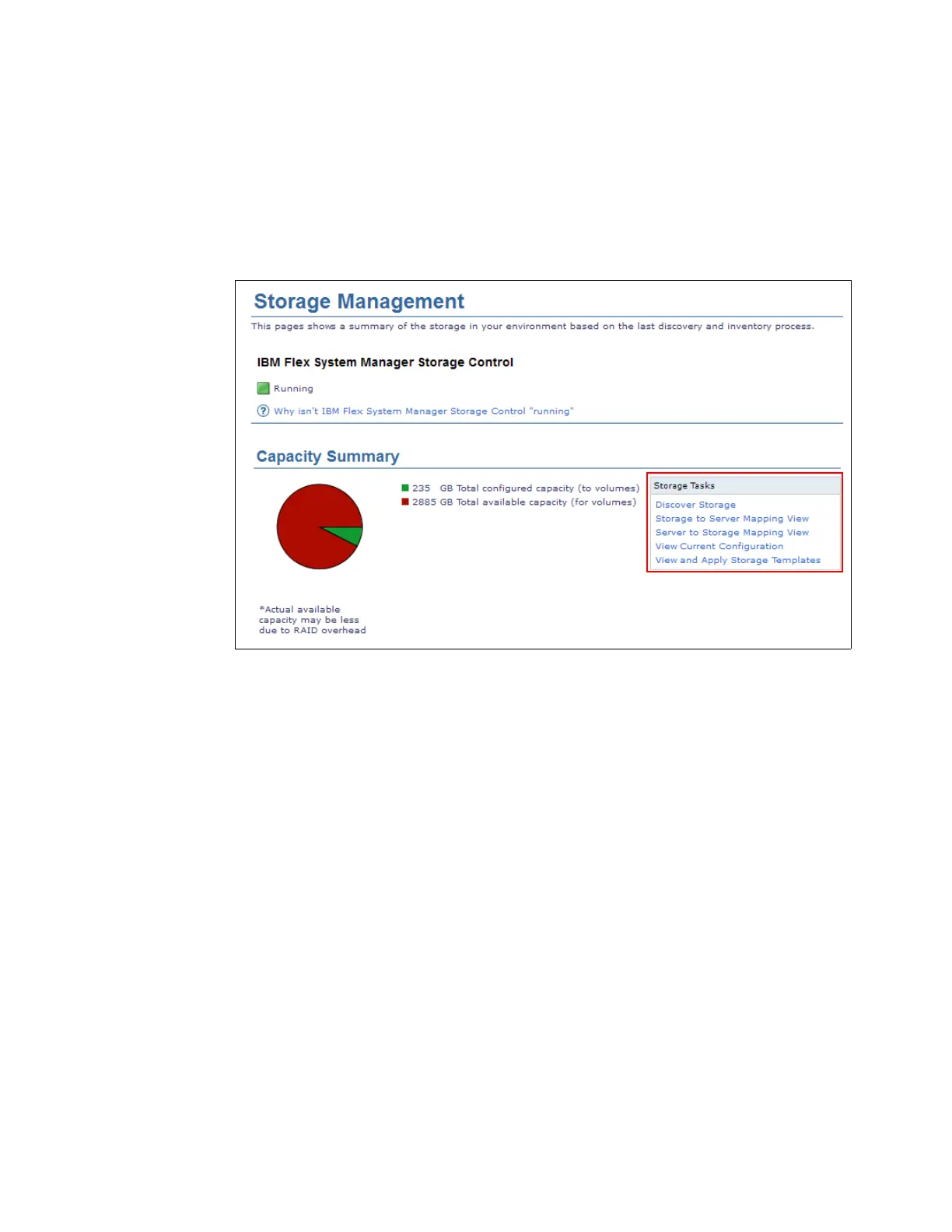

Figure 13-11 FSM - Storage Management
The following links are available under Storage Tasks:
򐂰 Discover Storage: Use discover storage to discover and automatically collect inventory
for manageable storage resources, including Fibre Channel switches and storage
subsystems.
򐂰 Storage to Server Mapping View: View the selected storage and their attached servers.
򐂰 Server to Storage Mapping View: View the selected servers and their attached storage.
򐂰 View Current Configuration: Display the configuration settings for the selected system.
򐂰 View and Apply Storage Templates: Use configuration templates to deploy settings on
one or more systems.
For implementation details, see 3.3.2, “IBM Flex System Manager storage management
features” on page 115.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
