502 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Creating an alias
The next task is to create aliases for the WWN (shown in the right side display in
Figure 11-43). From the main zoning panel, click the Alias box and enter the alias name in
the Create Alias window as shown in Figure 11-44, and click OK when completed.

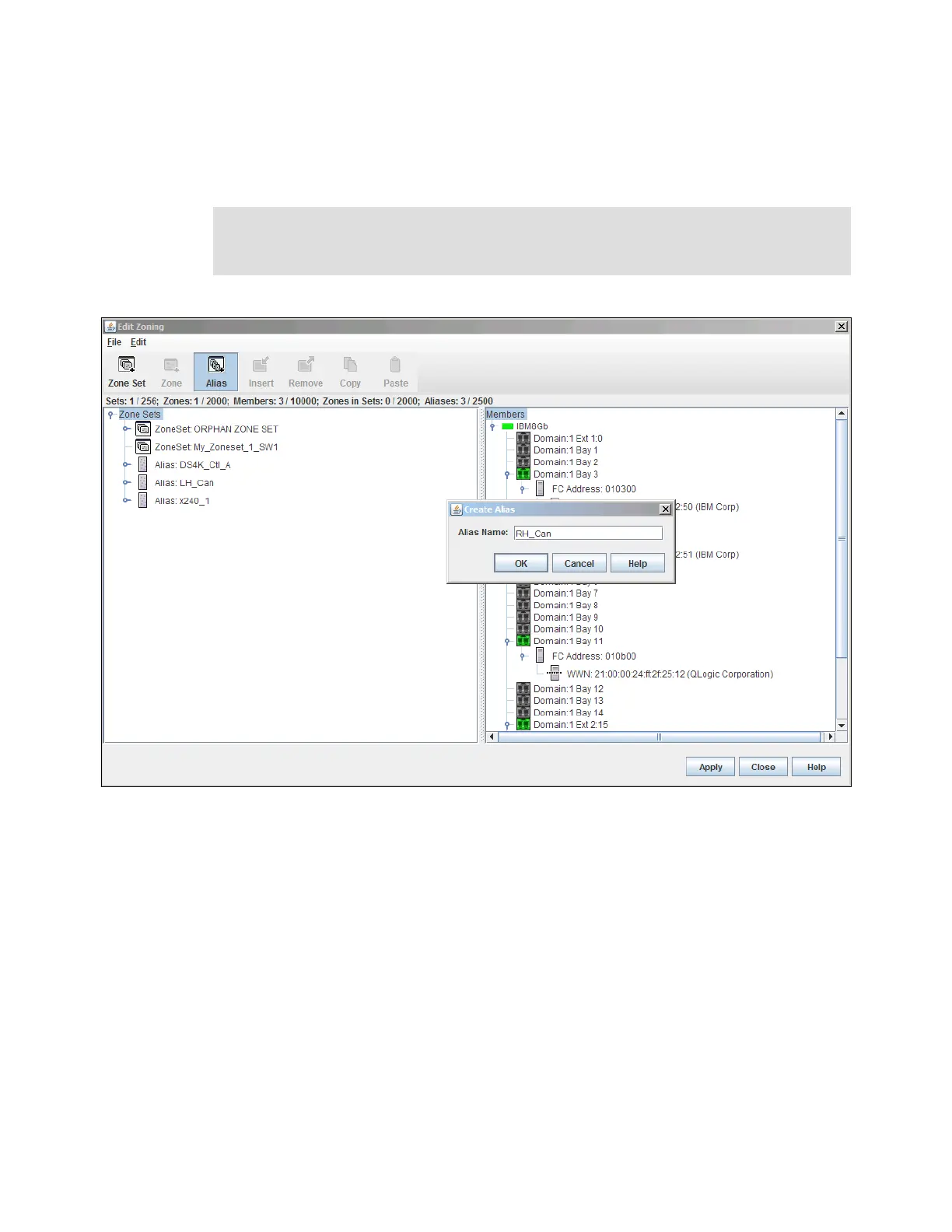

Figure 11-44 Creating an alias name
A WWN has to be added to the alias just created. In Figure 11-45, with the mouse, highlight
the alias you want to use and the WWN that you want to add. In this example, we have
created the alias “RH_Can” and now we want to add the WWN as seen from the right side
column. The WWN in Bay 4 is from the right side canister, so we have selected it to add.
Tip: When creating or changing zonesets, aliases, and zones, all changes will not be made
to the switch until the Apply box has been clicked with the mouse at the bottom right of the
zoning window, as shown in Figure 11-43.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
