450 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
10.4 Managing Volume Mirror and migration with the GUI

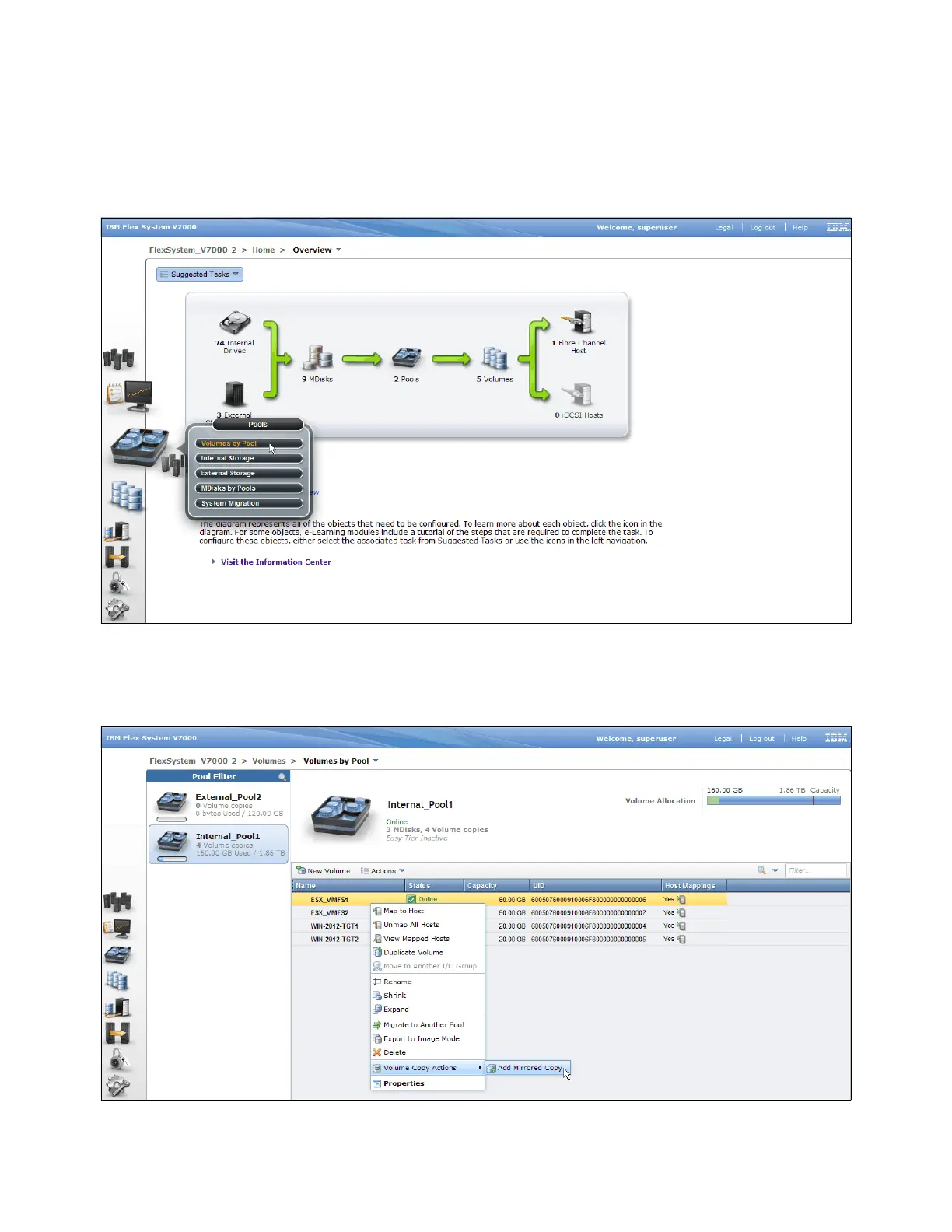

To begin the Volume Mirror process, first select the Volume by Pool from the storage Pool
icon drop-down list as shown in Figure 10-1.
Figure 10-1 Volumes by Pool from the Storage Pool icon
To make a volume mirror using the GUI, click Add Mirrored Copy from the Volume Copy
Actions menu drop-down box (Figure 10-2).
Figure 10-2 Add Volume Mirrored Copy
