Chapter 11. SAN connections and configuration 507
11.5.6 FC Switch Transparent Mode and N_Port ID Virtualization (NPIV)
The IBM Flex System FC3171 8Gb SAN Switch used in the zoneset and zone creation
example (11.5.4, “Zoning a compute node for storage allocation” on page 496) shows where
it has the full functionality of an FC switch. It can connect to an external FC SAN fabric as
shown in Figure 11-38 on page 495. The switch can also be configured into Transparent
Mode, where it will connect to an external FC SAN switch using F_Port-N_Port instead of
E-Port-E-Port connectivity. From the external SAN and switches, all zoning configuration and
management is undertaken. It negates the zoning requirement described previously to be
carried out on the FC3171 8Gb SAN Switch.
FC Switch Transparent Mode

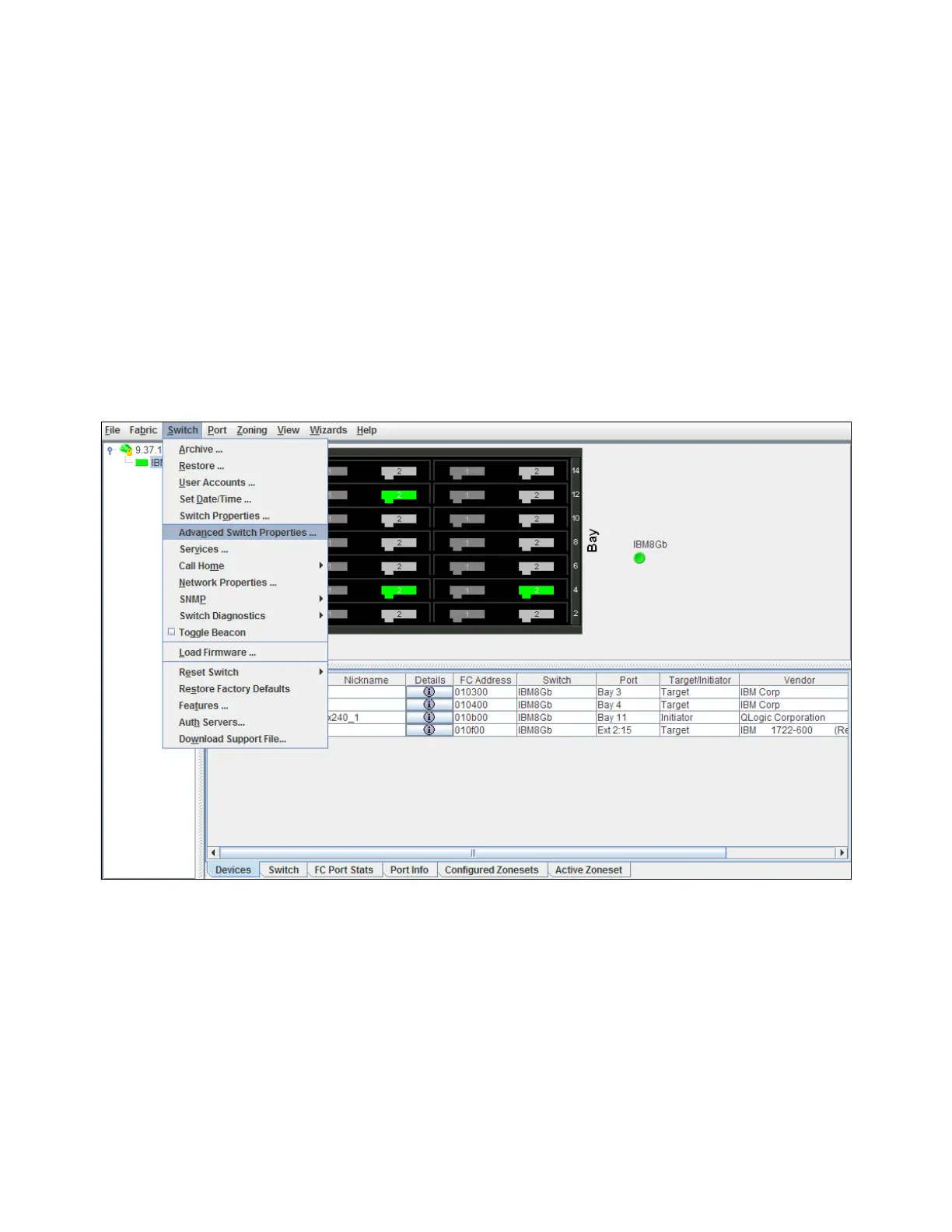

Figure 11-51 shows how to enable Transparent Mode. From the main Switch view, select the
Switch option in the top left corner of the window, then click Advanced Switch Properties
with the mouse.
Figure 11-51 Accessing Advanced Switch Properties on FC Switch

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
