276 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
The CLI commands window displays, and after the task is completed, click Close. The
FC-attached host is now created successfully and it appears on the list of configured hosts.
You can right-click the server here to perform any additional configuration tasks as shown in
Figure 6-27.

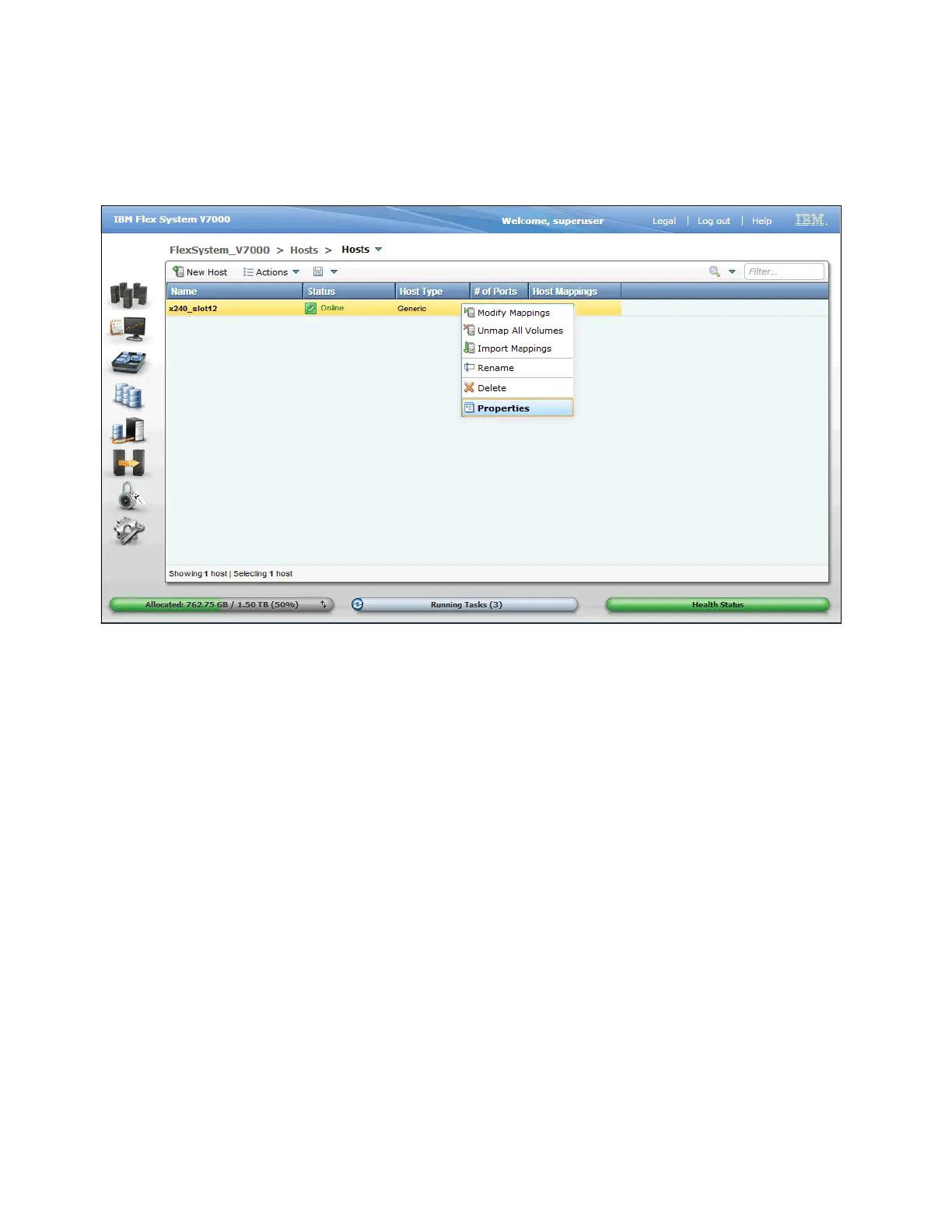

Figure 6-27 The newly created host appears
6.2.2 Creating an iSCSI attached host
The process of creating a iSCSI attached host is almost similar to creating an FC-attached
host as shown in 6.2.1, “Creating a Fibre Channel attached host” on page 273. The only
difference is that instead of configuring the new host with WWNs from our host, we instead
configure an iSCSI initiator name. The iSCSI initiator name is obtained from the iSCSI initiator
software installed on the host computer and represents a unique, however changeable, iSCSI
address of our host on the network.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM V7000 and is the answer not in the manual?

IBM V7000 Specifications

General IconGeneral
ModelIBM Storwize V7000
Storage TypeHybrid Flash Array
Maximum Capacity1.2PB
RAID Levels0, 1, 5, 6, 10
Connectivity8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
ManagementCommand-line interface (CLI), Graphical user interface (GUI)
Form Factor2U
Drive Bays12
Maximum Raw Capacity1.2PB
Operating System SupportAIX, HP-UX, Linux, VMware, Windows
Data Reduction FeaturesReal-time Compression, Deduplication
Drive TypesSSD, HDD
ScalabilityScale-up (drive enclosures) and scale-out (clustering) capabilities
