Chapter 2. Introduction to IBM Flex System V7000 Storage Node 55
2.5.2 Expansion canister
The expansion canister connects the expansion disks to the control canister using the SAS2
6 Gbps chain interface. This module also enables the daisy-chaining of additional expansions
to be connected behind it to further expand the capacity of the system’s storage. The
expansion canister is also a Customer Replaceable Unit (CRU). Figure 2-6 shows a picture of
the expansion canister with its cover removed.

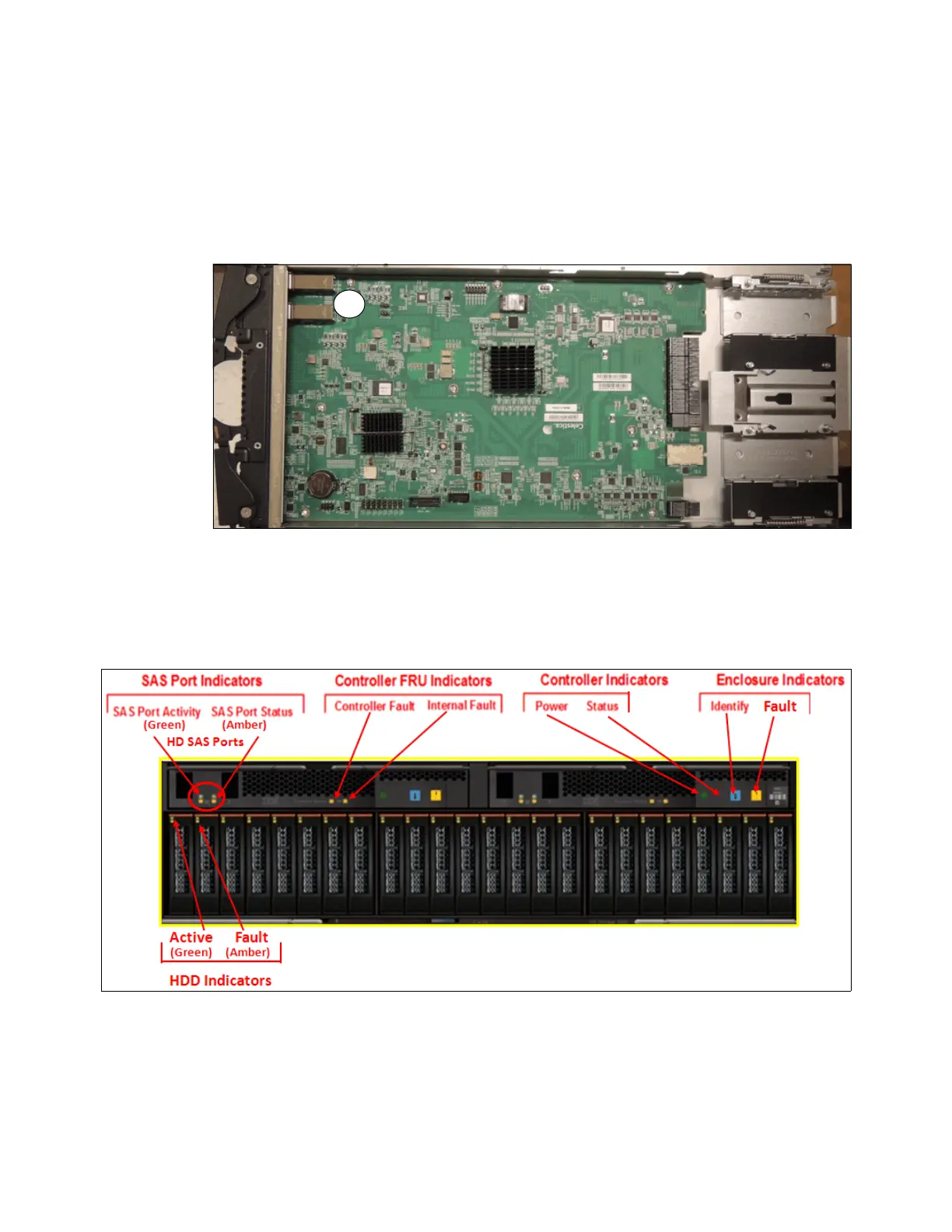

Figure 2-6 Components and board layout of the expansion canister
As shown in Figure 2-6, the expansion canister does not contain a battery backup unit as the
control canister does. It does have an additional SAS2 connection (A) on it to allow for the
continuation of the chain to additional expansions. Figure 2-7 shows the SAS connection
ports and the status indicators on the front of the expansion enclosures.
Figure 2-7 Expansion enclosure with connection ports and indicators
As the indicators on the expansion enclosure are a subset of the ones that are available on
the control enclosure, Table 2-5 on page 54 provides the details of their definitions.
A

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
