Chapter 11. SAN connections and configuration 503

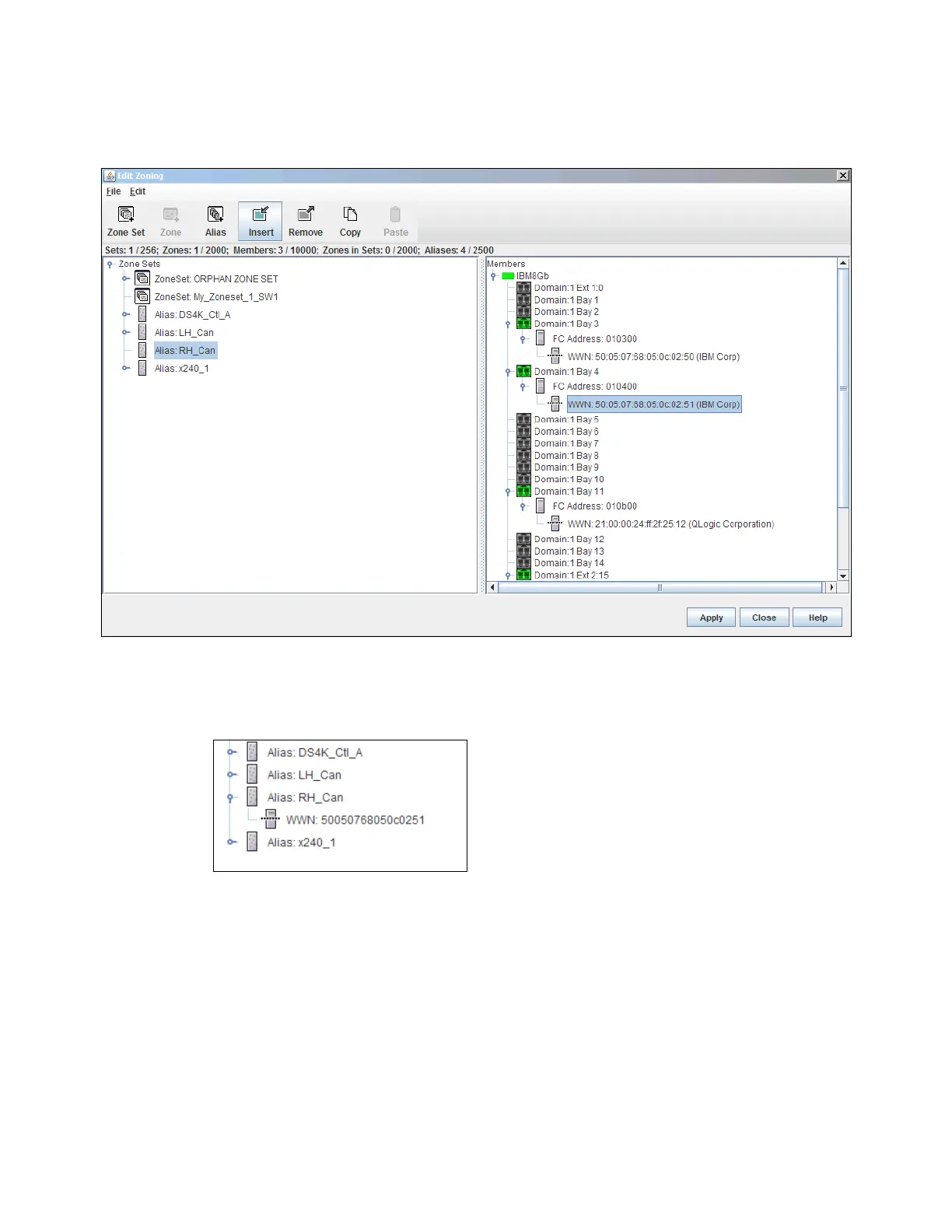

When both alias name and WWN name are highlighted with the mouse, click the Insert box
as shown in Figure 11-45.
Figure 11-45 Add WWN to alias
When this operation is completed, you can check that the WWN has been added to the alias
as shown in Figure 11-46.
Figure 11-46 Check that WWN has been added to alias
Creating a zone
We now want to create a zone and add to it aliases that are already created. Figure 11-47
shows the main zoning window. Highlight the zoneset that you want the zone to belong to,
and click the Zone square. When the Create Zone pop-up window displays, you can type in
the zone name. When completed, click OK.
