3 Data Storage Area Management Dialog Box
16-4 WindO/I-NV4 User’s Manual

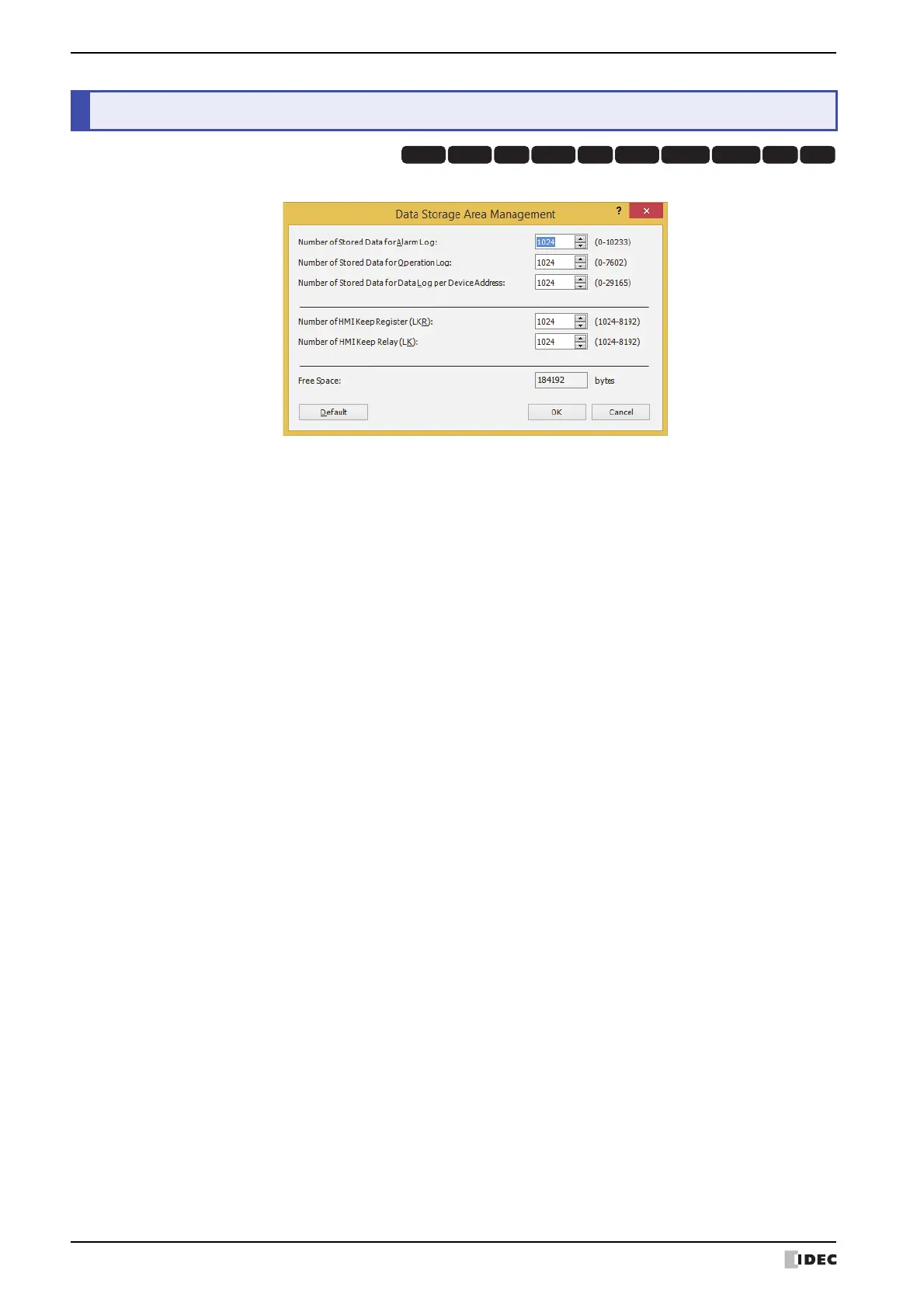

This section describes items and buttons on the Data Storage Area Management dialog box.
â– Number of Stored Data for Alarm Log
Specifies the amount of Alarm Log data to save in the data storage area (HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F: 0
to 11660, HG2G-5T, HG1G/1P: 0 to 5520).
Alarm Log data is only saved in the data storage area when Store is selected under Block Settings, Data in the
Auto-Setup dialog box or in the Individual Settings dialog box for Alarm Log Settings.
â– Number of Stored Data for Operation Log
Specifies the amount of Operation Log data to save in the data storage area (HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F:
0 to 8330, HG2G-5T, HG1G/1P: 0 to 3945).
â– Number of Stored Data for Data Log per Device Address
Specifies the amount of Data Log data per device address to save in the data storage area (HG5G/4G/3G/2G-V,
HG4G/3G, HG2G-5F: 0 to 29165, HG2G-5T, HG1G/1P: 0 to 13808).
Data Log data is only saved in the data storage area when Enable is selected under Log function on the General
Tab i n the Individual Settings dialog box for Data Log Settings.
â– Number of HMI Keep Register (LKR)
Specifies the number of HMI Keep Register (LKR) addresses (1024 to 8192).
â– Number of HMI Keep Relay (LK)
Specifies the number of HMI Keep Relay (LK) addresses (1024 to 8192).
â– Free Space
Shows the amount of free space in the data storage area (in bytes).
â– Default
Returns the configured values to their default values.
