3 Global Script
20-20 WindO/I-NV4 User’s Manual

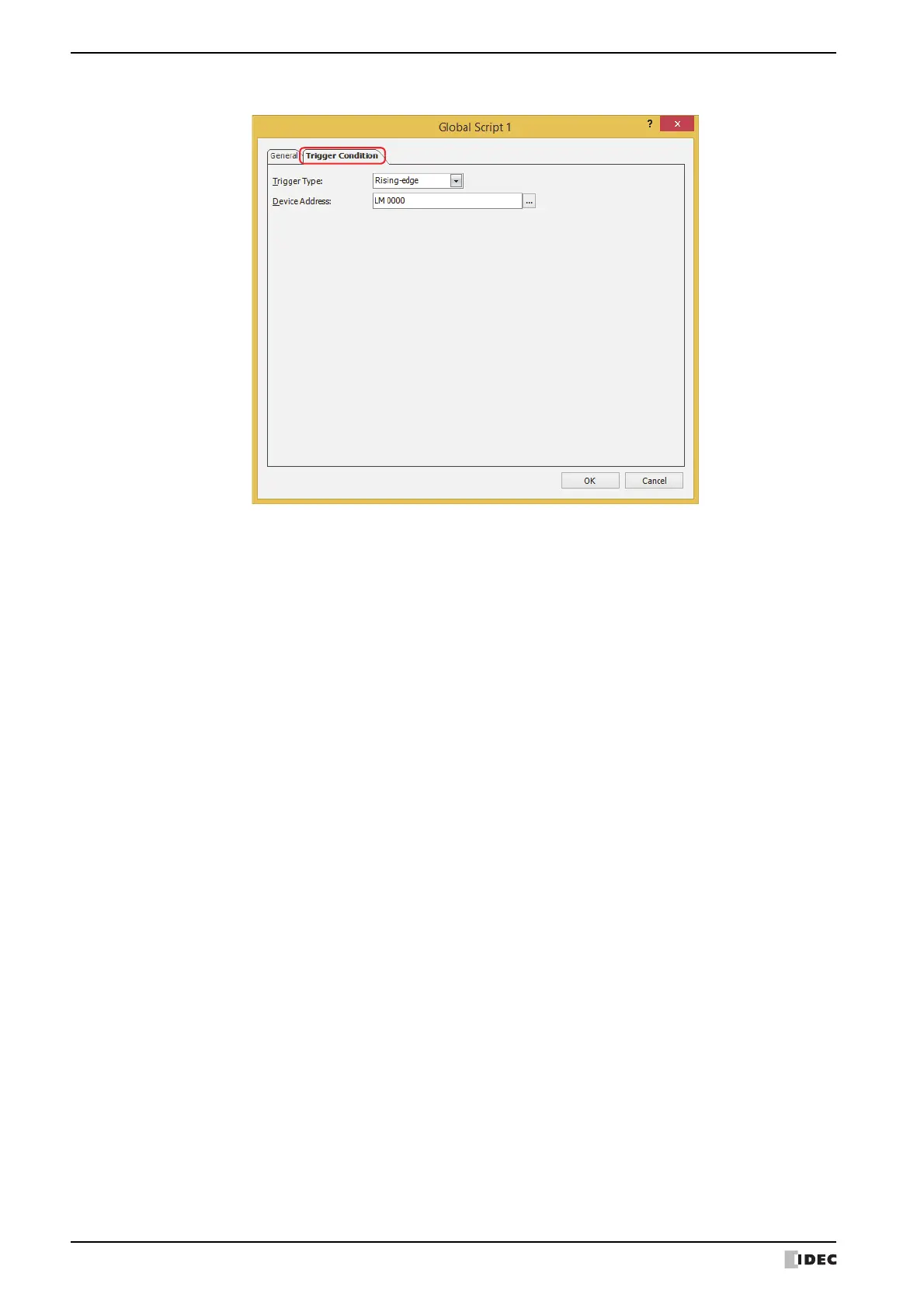

● Trigger Condition Tab
■ Trigger Type
Specify the condition to execute the script.
■ Device Address
Specify the bit device or the bit number of the word device.
This is enabled only when Rising-edge or Falling-edge is selected in Trigger Type.
■ Period (sec)
Specify the scan frequency in seconds (1 to 3,600).
This is enabled only when Fixed Period is selected in Trigger Type.
Rising-edge: Script is executed when trigger device address changes from 0 to 1.
Falling-edge: Script is executed when trigger device address changes from 1 to 0.
Always Enabled:The script is executed on every scan of the MICRO/I.
Fixed Period: Script is executed at set intervals.
