5 User Communication
3-14 WindO/I-NV4 User’s Manual
15

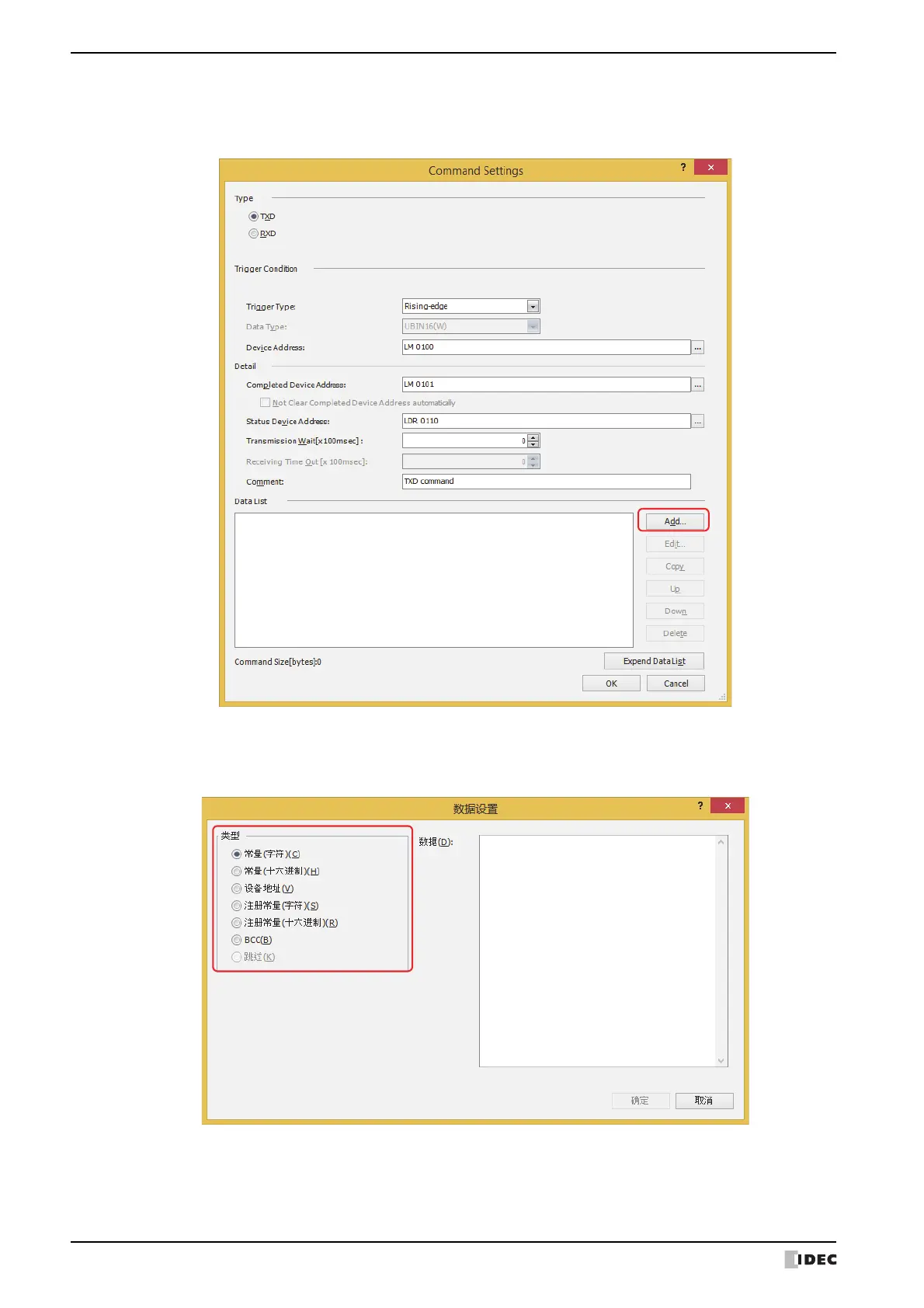

Set data for transmission command.
Click Add under Data List.
The Data Settings dialog box is displayed.
16
Select data type in Type.
Data setting items are displayed.
For details on transmission command, refer to “Transmission (TXD) Command” on page 3-49.
17
Set the data, and then click OK.
The data configured in Data List on the Command Settings dialog box is displayed.
To Next Page
