WindO/I-NV4 User’s Manual 35-31
2 HG4G/3G, HG2G-5F
35
MICRO/I Specifications

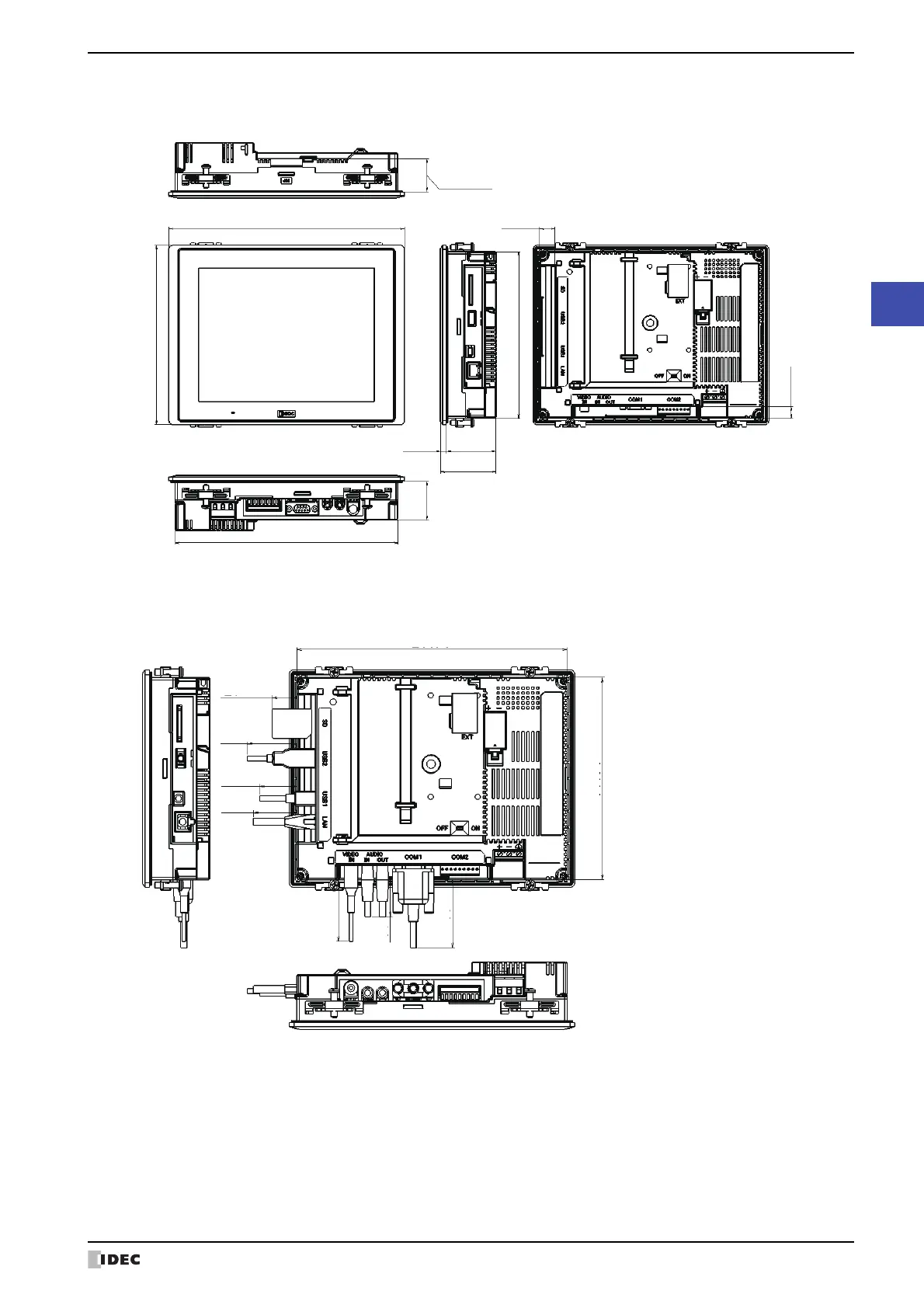

â–  HG3G-8 (8.4inch)
Unit: mm
# The size to the expansion module installation side
<Cable Attached Dimensions>
Depending on the type of connection cable used the dimensions shown above will change.
The dimensions given here are representative values and are intended for reference only.
32.6 #
15.2
54.4
48.4
163.5
176.0
11.4
38.2
6.0
231.0
218.5
20
40
30
35
218.5
163.5
55
50
30
