MICRO/I Specifications
■ HG1G
Unit: mm

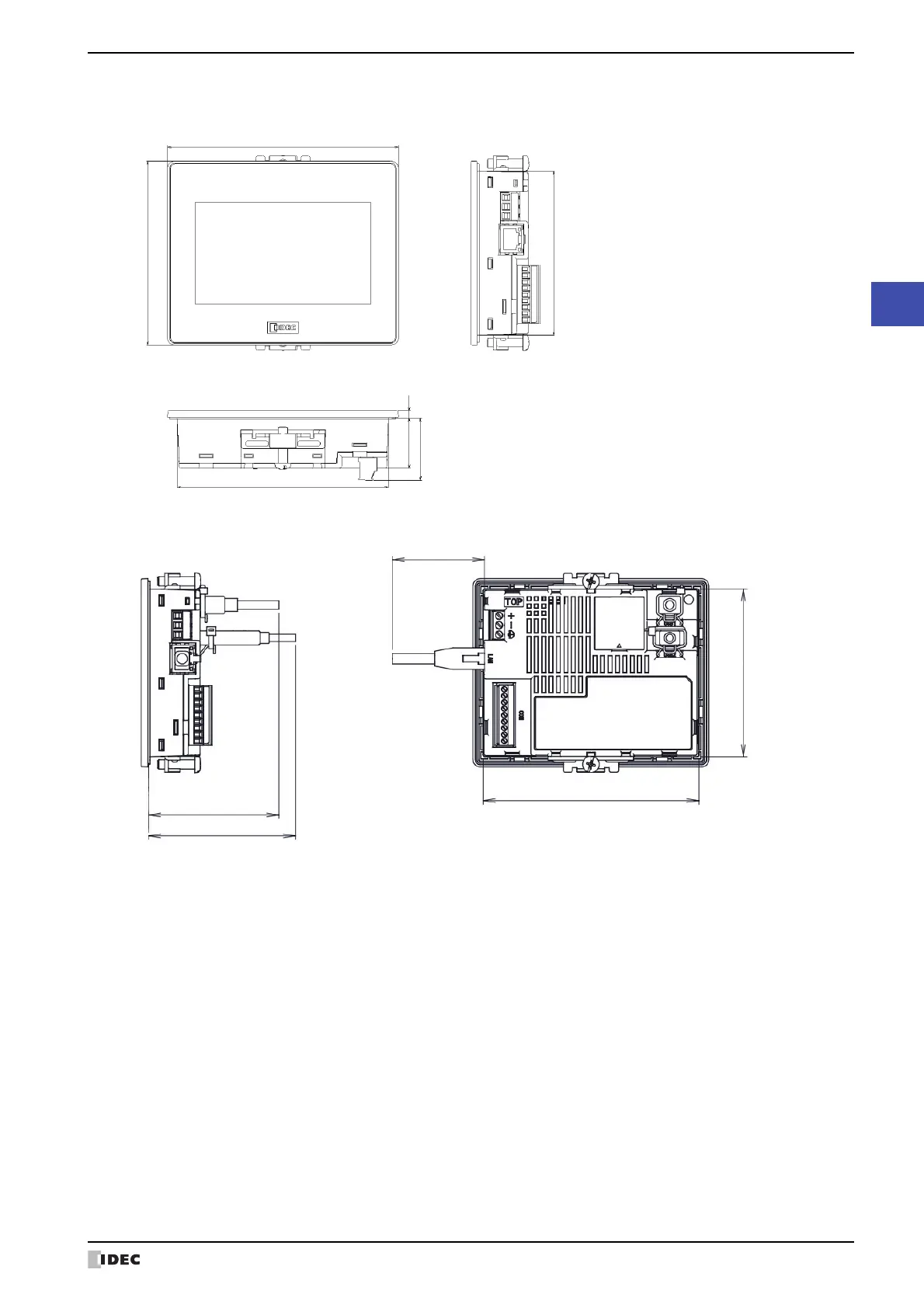

<Cable Attached Dimensions>
Depending on the type of connection cable used the dimensions shown above will change.
The dimensions given here are representative values and are intended for reference only.
91.0
102.0
34.5
27.8
4.0
128.0
117.0
71
80
50
117.0
91.0
Panel surface
