IDEC MICRO/I HG1P-ST32 Series User Manual

4 HG1P
35-58 WindO/I-NV4 User’s Manual

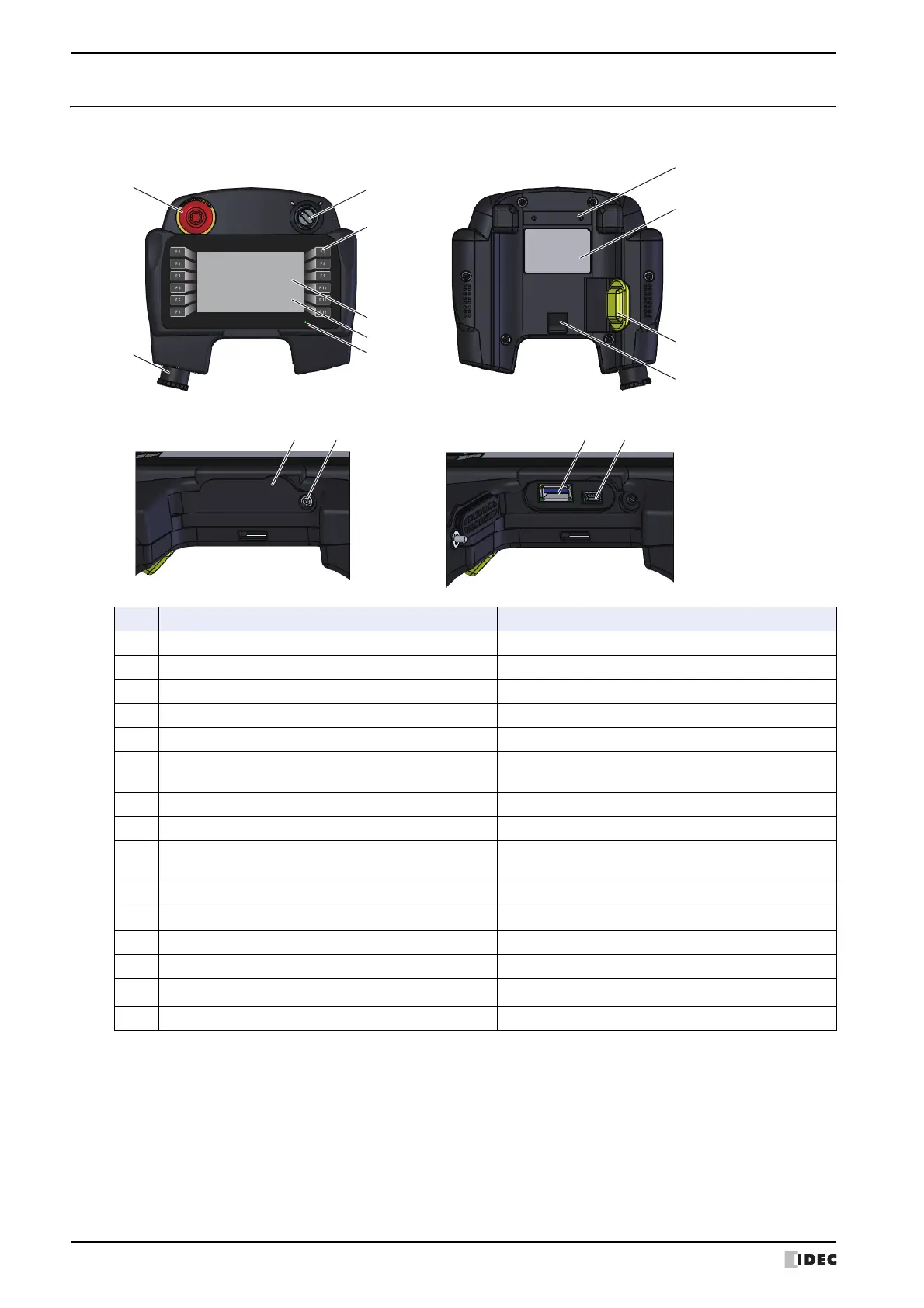

4.3 Part Names
■ HG1P
*1 USB flash drive only
No. Name Description
(1) Emergency Stop Switch 1 (external wiring)
(2) Selector Switch 1 (external wiring)
(3) Function Key 12 (internal wiring)
(4) Display TFT color LCD
(5) Touch Panel Analog Resistive Film
(6) POWER LED
Green (lit) : Normal Operation (Power is on.)
Not lit : Power is off.
(7) Connector Removable 19-pin Female Connector
(8) Mounting Hole For Wall-Mounted Hook Wall-mounted hook screw mounting part (2)
(9) Nameplate
Label printed with Part number, Serial Number and
Consumption Current
(10) Enabling Switch 1 (external wiring)
(11) Hand Strap Mounting Part -
(12) USB Port Cover -
(13) USB Port Cover Mounting Part USB port cover screw mounting part (1)
(14)
USB Interface (USB2)
*1
USB2.0 (Host) Connector : Type A
(15) USB Interface (USB1) USB2.0 (Device) Connector : Mini-B
①
⑦
②
③
⑪
⑧
⑫⑬ ⑭⑮
⑤
⑥
⑩
⑨
④
