WindO/I-NV4 User’s Manual 3-71
5 User Communication
3
Communication

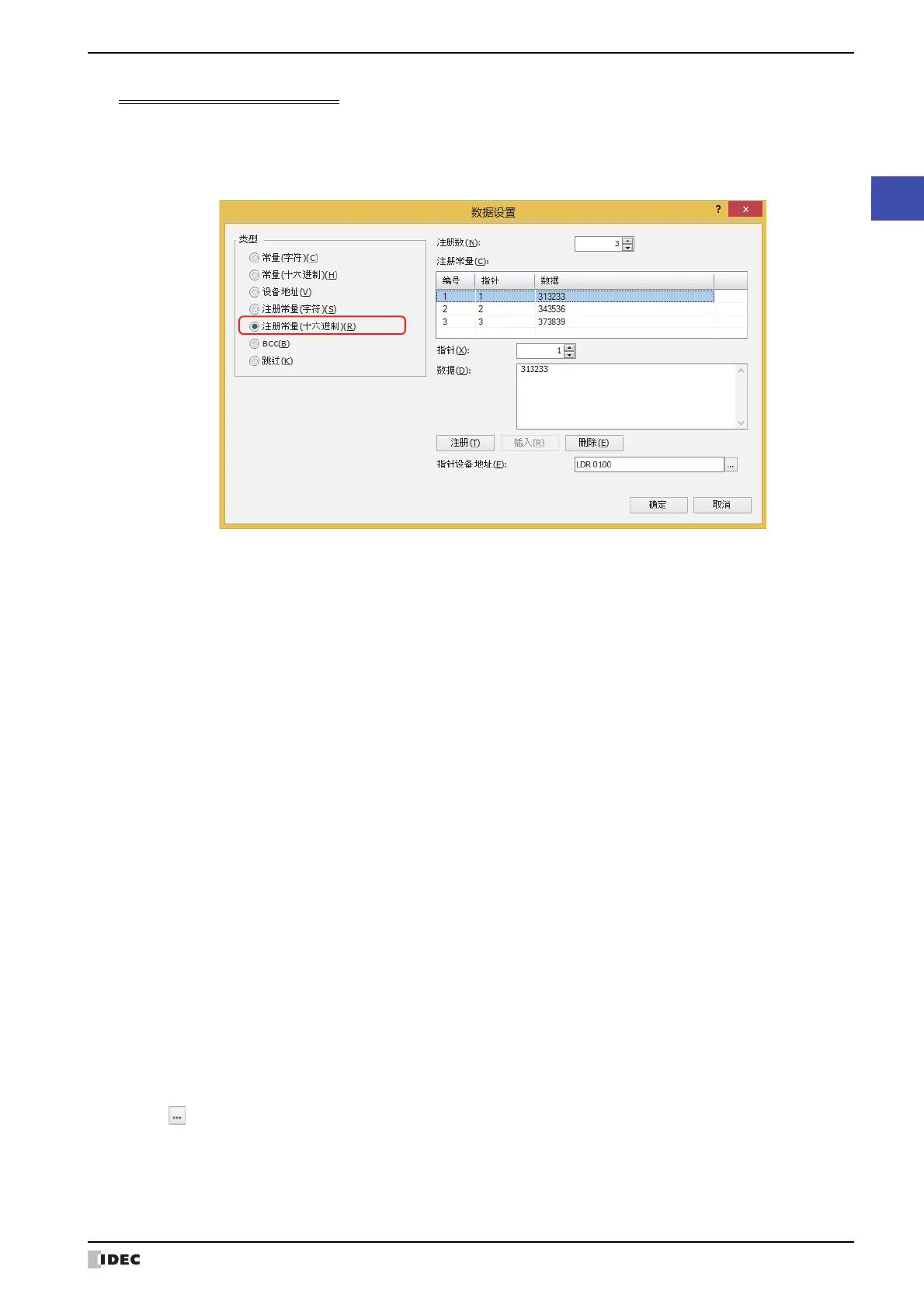

Registering Constant (Hexadecimal)
The received data is compared with the registered hexadecimal data and the number of the matching hexadecimal
data is stored in the device address.
This can be configured only when RXD is selected as Type on the Command Settings dialog box, and Registering
Constant (Hexadecimal) is selected under Type on the Data Settings dialog box.
■ Number of Registering Constants
Specify the number of data of the registered hexadecimal data (1 to 100).
■ Registering Constants
■ Index
Specify the Index No. (0 to 65535) of the hexadecimal data.
■ Data
Enter the hexadecimal data (1 to 1500 bytes) to be registered.
The hexadecimal data of different size or the same data with a different number cannot be registered.
■ Set
Register the Index and Data settings to the list. When a number that is already registered is selected, it is
overwritten with the new setting.
■ Insert
Insert a hexadecimal data setting to the selected number in the list.
Click this button to insert the Index and Data setting. The settings at the insertion point shift down 1 line. Settings
cannot be inserted when all numbers are already set.
■ Delete
Delete the selected settings from the list.
■ Index Device Address
Specify the word device for storing the Index No. of the hexadecimal data matching the received data. You can only
specify an internal device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
No.: Shows the ID No. (1 to 100) of the hexadecimal data.
Index: Shows the Index No. of the hexadecimal data.
Data: Shows the hexadecimal data.
To Next Page
