4 Drawings and Parts Overlapping
6
Drawings and Parts
● Display order of drawing and parts overlapping
•If a drawing and part are overlapping with each other on a base screen or popup screen, the drawing or part
configured in the Properties dialog box as a top layer, then it will be displayed in the front over the other.

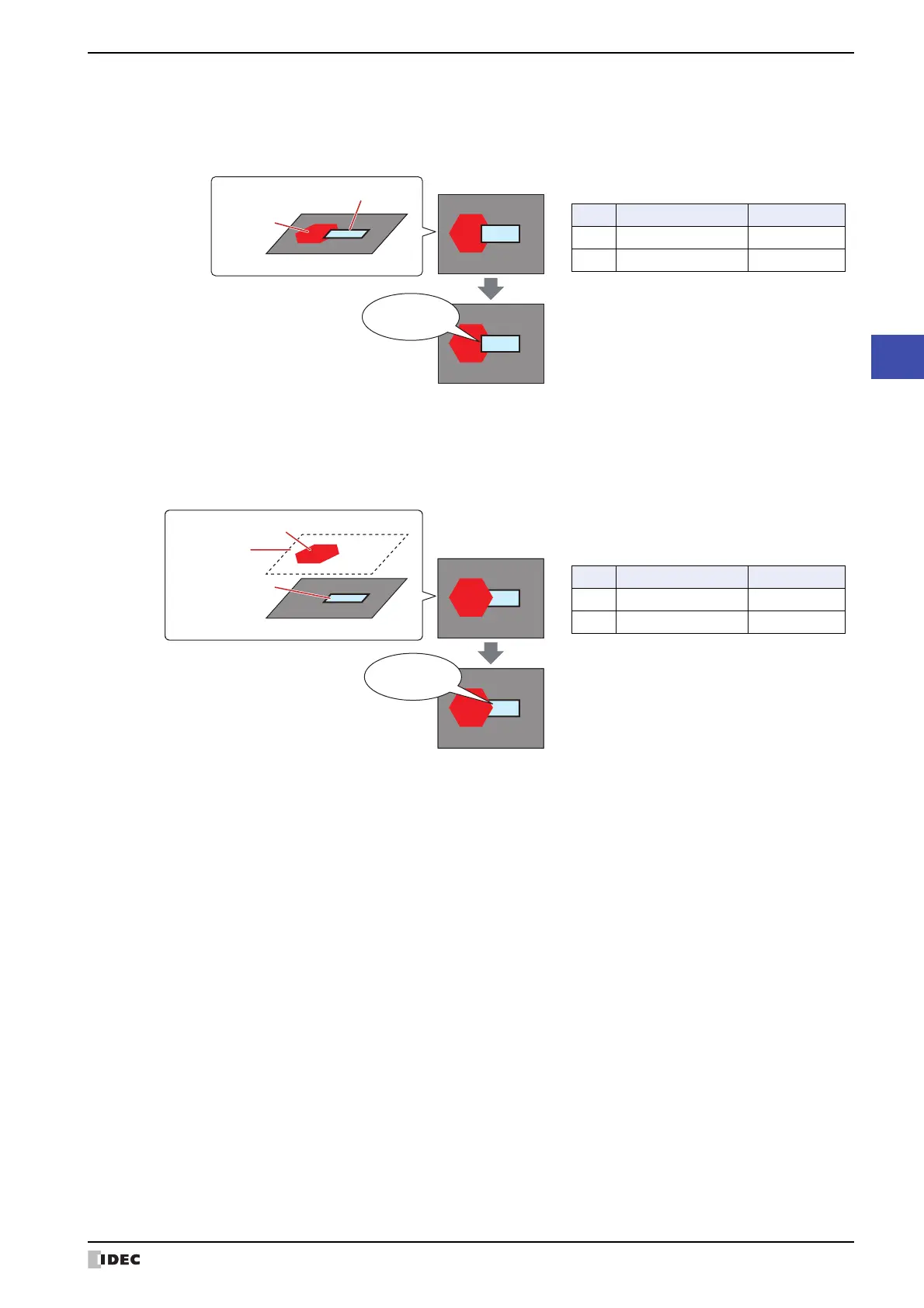

Example: An equilateral hexagon is placed on the base screen and a Numerical Display is placed in front of it.
•If a part placed on a base screen or popup screen and a drawing placed on the top layer overlap, the drawing placed
on the top layer is always displayed in front.
Example: A Numerical Display is placed on the base screen and an equilateral hexagon is placed on the top layer.
Display for Base Screen: 1
The display order of the equilateral hexagon
and Numerical Display is unchanged
1234
9999
Changes the value
1234
Equilateral
Hexagon
Numerical Display
Base Screen: 1
Object list
No. Type Layer
1 Equilateral hexagon
2 Numerical Display
567
Display for Base Screen: 1
The display order of the equilateral hexagon
and Numerical Display is unchanged
1234
9999
Changes the value
1234
Top Layer
Equilateral Hexagon
Numerical Display
Base Screen: 1
Object list
No. Type Layer
1 Numerical Display
2 Equilateral hexagon Top Layer
