4 Drawings and Parts Overlapping
6-8 WindO/I-NV4 User’s Manual

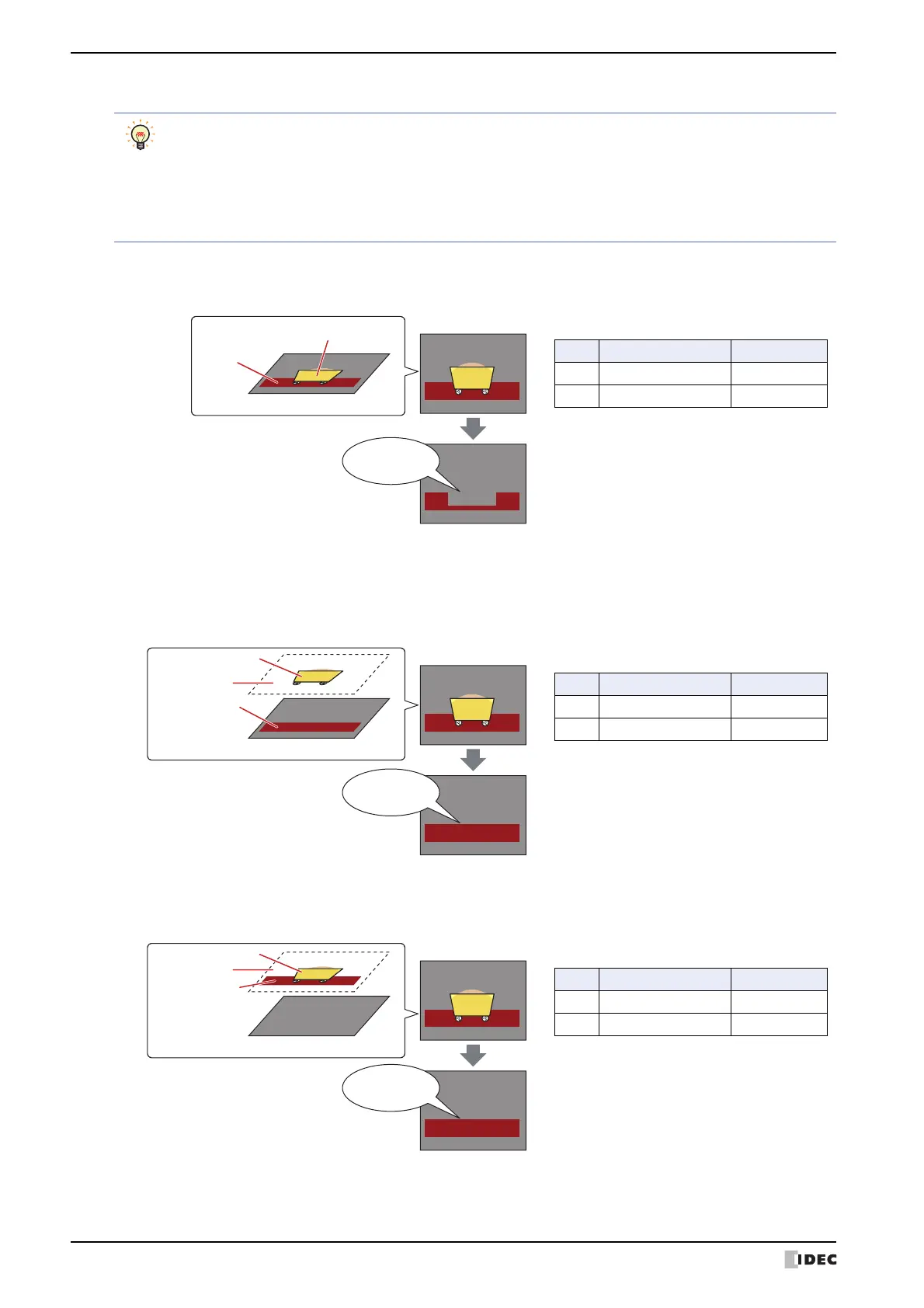

● Drawing and Parts are hidden
•When a drawing and another drawing or part placed on a base screen or popup screen overlap, if the drawing or
part in front becomes hidden, the portion of the background drawing that was overlapped remains missing.
Example: A rectangle is placed on the base screen and a Picture Display is placed in front of it.
•When a drawing placed on a base screen or popup screen and a drawing or part placed on the top layer overlap, if
the drawing or part placed on the top layer becomes hidden, only the drawing that was placed on the base screen or
popup screen is displayed.
Example: A rectangle is placed on the base screen and a Picture Display is placed on the top layer.
•When a drawing and another drawing or part placed on the top layer overlap, if the drawing or part in front becomes
hidden, only the background drawing is displayed.
Example: A rectangle is placed on the top layer and a Picture Display is placed in front of it.
In the following situations, the drawing and the part image type are hidden.
•When the drawing or part is flashing
•When the hidden condition is satisfied in a part configured with display conditions
•When a lamp is off that has its Not Display Image check box selected on the View tab
•When an unregistered state or number is selected for the image type in a Multi-State Lamp or Picture Display
•When moving a Picture Display
Display for Base Screen: 1
Picture Display
is hidden
Overlapping part for the rectangle and Picture Display is the
background for the screen and the rectangle remains missing.
Rectangle
Picture Display
Base Screen: 1
Object list
No. Type Layer
1Rectangle
2 Picture Display
Display for Base Screen: 1
Picture Display
is hidden
Rectangle remains
Top Layer
Rectangle
Picture Display
Base Screen: 1
Object list
No. Type Layer
1Rectangle
2 Picture Display Top Layer
Display for Base Screen: 1
Picture Display
is hidden
Rectangle remains
Top Layer
Rectangle
Picture Display
Base Screen: 1
Object list
No. Type Layer
1 Rectangle Top Layer
2 Picture Display Top Layer
