WindO/I-NV4 User’s Manual 8-149
8 Selector Switch
8
Buttons

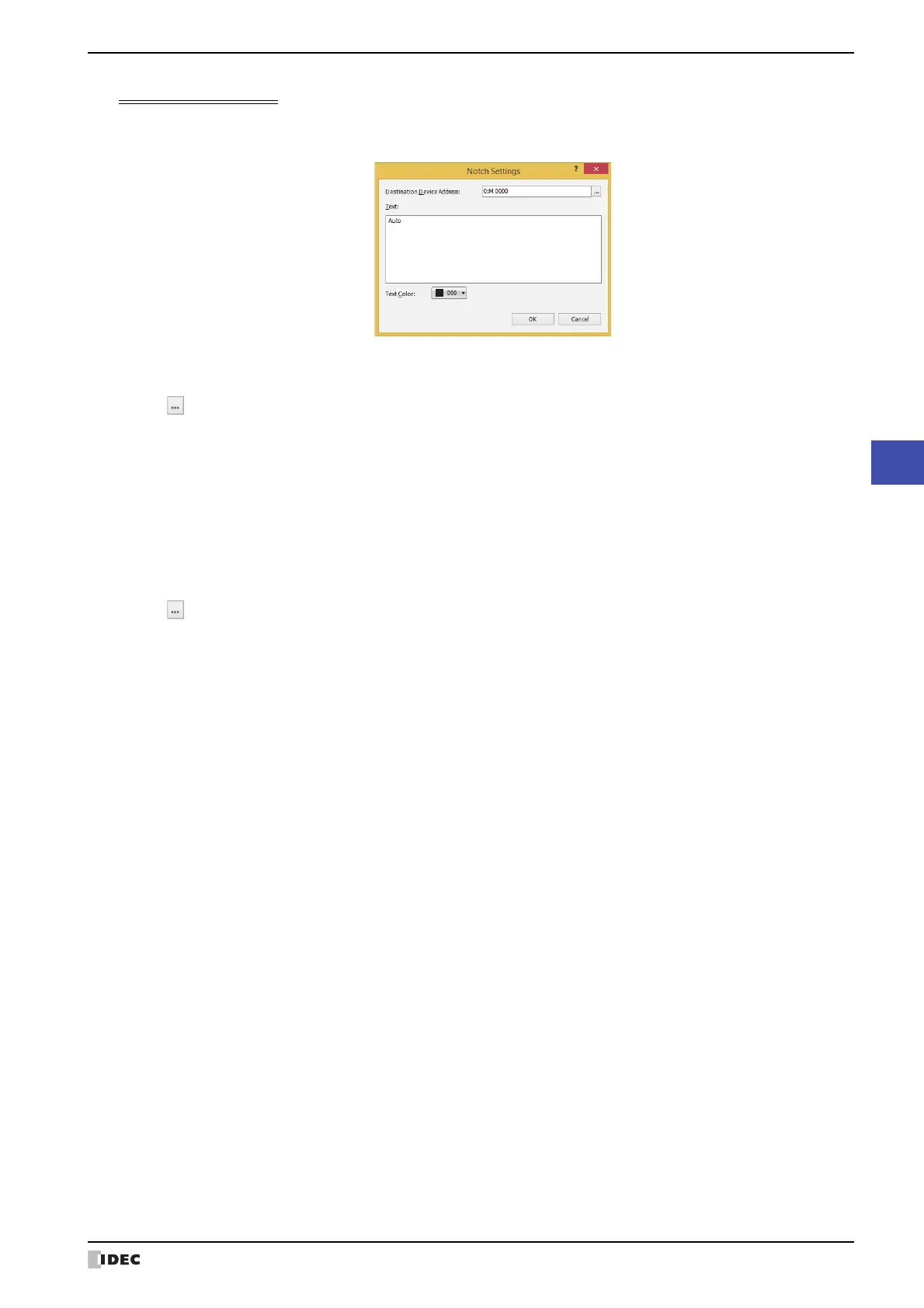

Notch Settings Dialog Box
This dialog configures a notch for a channel. If the channel has already been set with a notch, the setting is
overwritten.
■ Destination Device Address
Specify the destination bit device or the bit number in the destination word device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
■ Text
Enter the Registration Text for the channel.
The characters that can be entered depends on the font selected for Font on the Format tab. For details, refer to
Chapter 2 “1.2 Available Text” on page 2-6.
■ Text ID
To use the text registered in the Text Manager as the Registration Text for the channel, specify the ID number from 1
to 32000.
Click to display Text Manager.
The text ID setting is only enabled if you select the Use Text Manager check box.
■ Text Color
Select the Registration Text color for the channel (color: 256 colors, monochrome: 16 shades).
Displays the Color Palette when Color is clicked. Select a color from the Color Palette.
