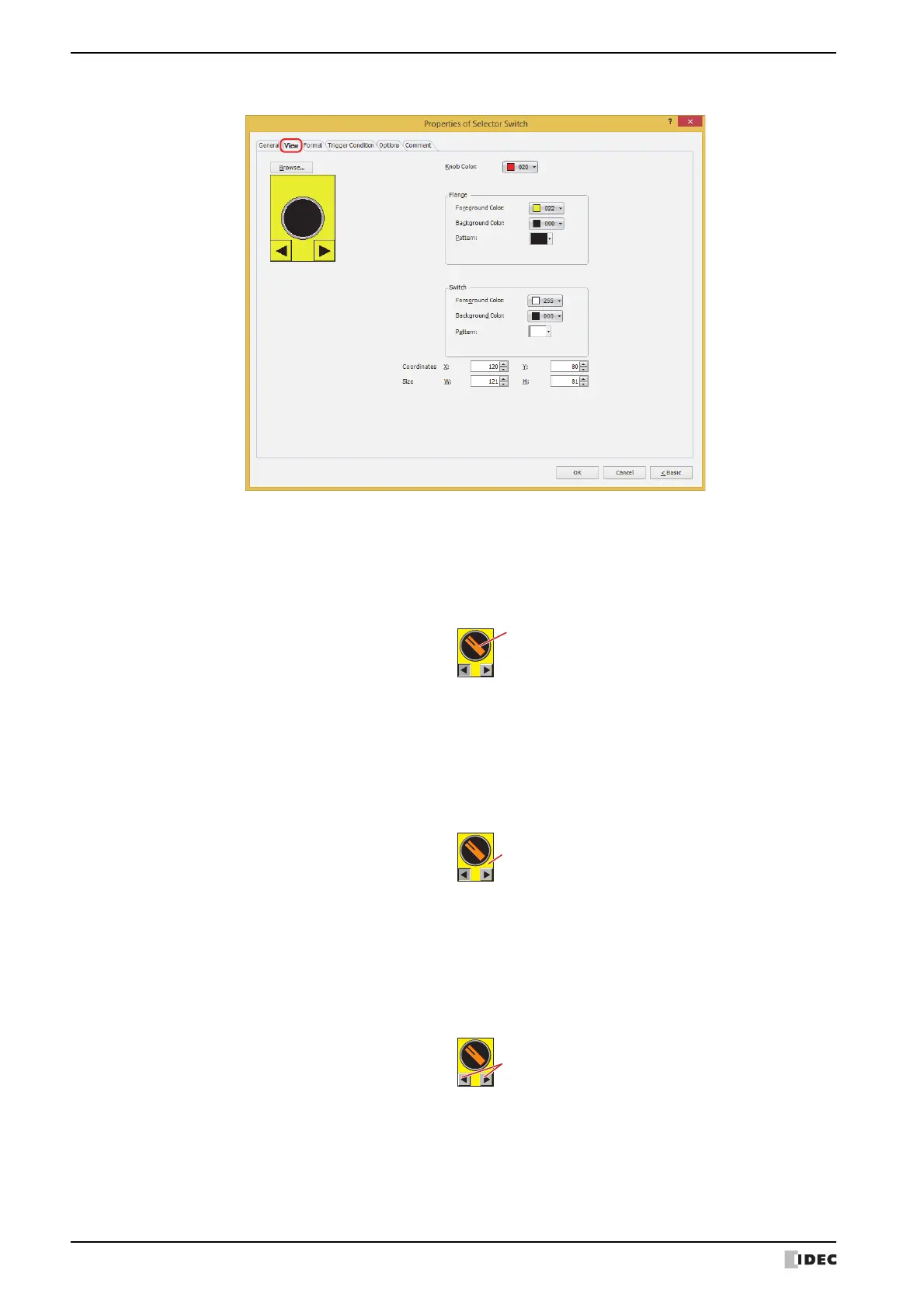

● View Ta b
■ Browse
Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser.
■ Knob Color
Selects the knob color of the Selector Switch (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
■ Flange
■ Switch
Knob
Foreground Color, Background Color: Selects the foreground and background colors of the flange (color: 256
colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange.
Click Pattern to display the Pattern Palette. Select a pattern from the Pattern
Palette.
Flange
Foreground Color, Background Color: Selects the foreground and background colors of the buttons (color: 256
colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern or tonal gradation for the button.
Click Pattern to display the Pattern Palette. Select a pattern or tonal
gradation from the Pattern Palette.
Buttons
