IDEC MICRO/I HG1P-ST32 Series User Manual

WindO/I-NV4 User’s Manual 10-31
2 Character Input
10
Data Displays
Example: If Input Digits is 10 and a string with a length of 6 was input
4847
(Hex)
‘H’ ‘G’
2053
(Hex)
4552
(Hex)
4943
(Hex)
5300
(Hex)
‘ ’ ‘S’
‘E’ ‘R’
‘ I ’ ‘E’
‘S’
(NULL)
4847
(Hex)
‘H’ ‘G’
2053
(Hex)
4552
(Hex)
4943
(Hex)
5300
(Hex)
‘ ’ ‘S’
‘E’ ‘R’
‘ I ’ ‘E’
‘S’
(NULL)
4D49
(Hex)
‘M’ ‘I’
4352
(Hex)
4F49
(Hex)
0000
(Hex)
5300
(Hex)
‘C’ ‘R’
‘O’ ‘I’
(NULL)(NULL)
‘S’
(NULL)
4D49
(Hex)
‘M’ ‘I’
4352
(Hex)
4F49
(Hex)
0000
(Hex)
0000
(Hex)
‘C’ ‘R’
‘O’ ‘I’
(NULL)(NULL)
(NULL)(NULL)

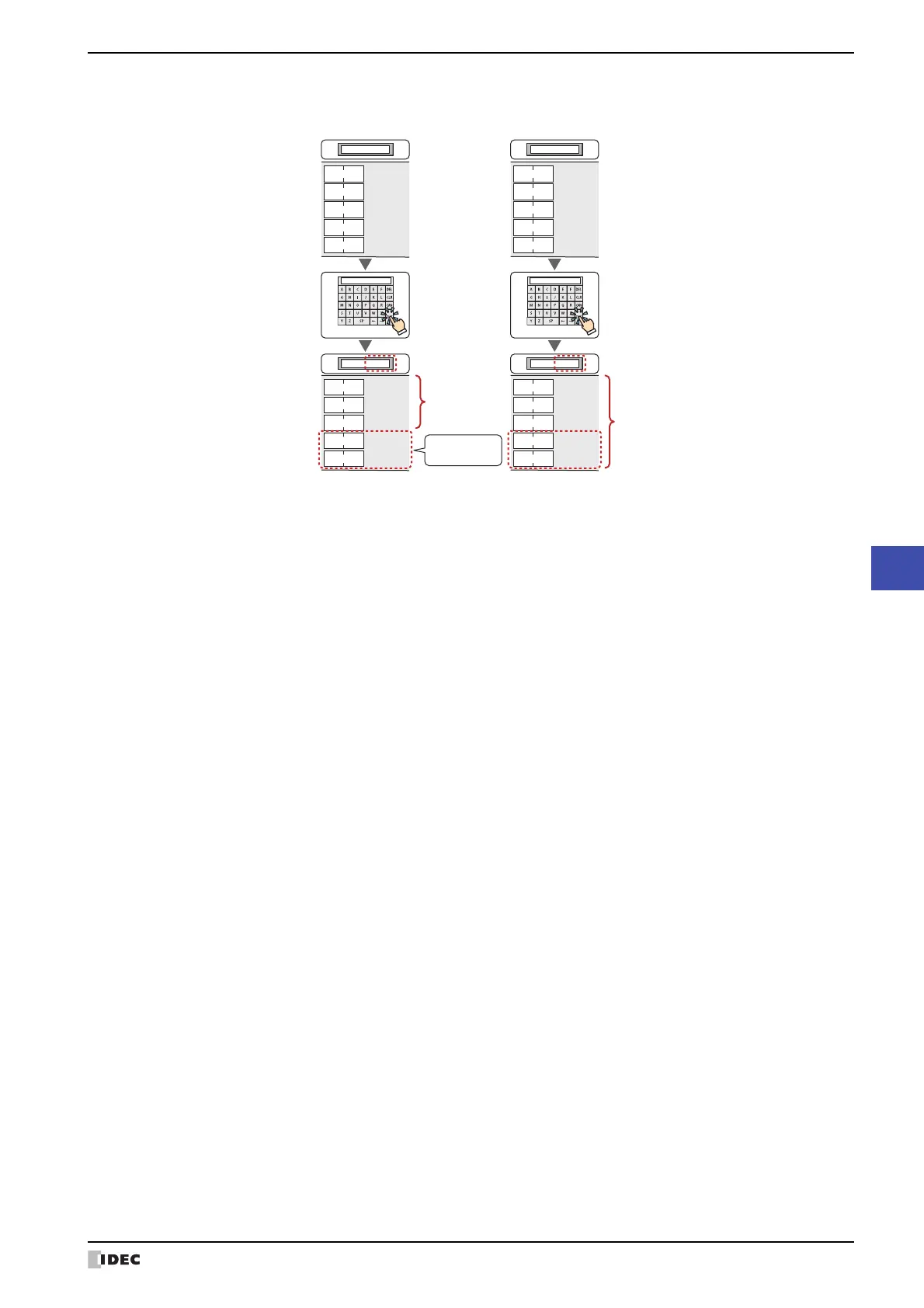

Enter MICROI
(Length of the string is 6)
Check box: Selected Check box: Cleared
Character Input
display
MICROI_
Value of
destination
device address
HG SERIES
MICROI
MICROI_
HG SERIES
MICROI
Character Input
display
Value of
destination
device address
Values updated
to 8th character
NULL (0x00) is written
from 9th character
and the values of
all 10 characters
are updated
Values are not
updated
