2 Character Input
10-36 WindO/I-NV4 User’s Manual

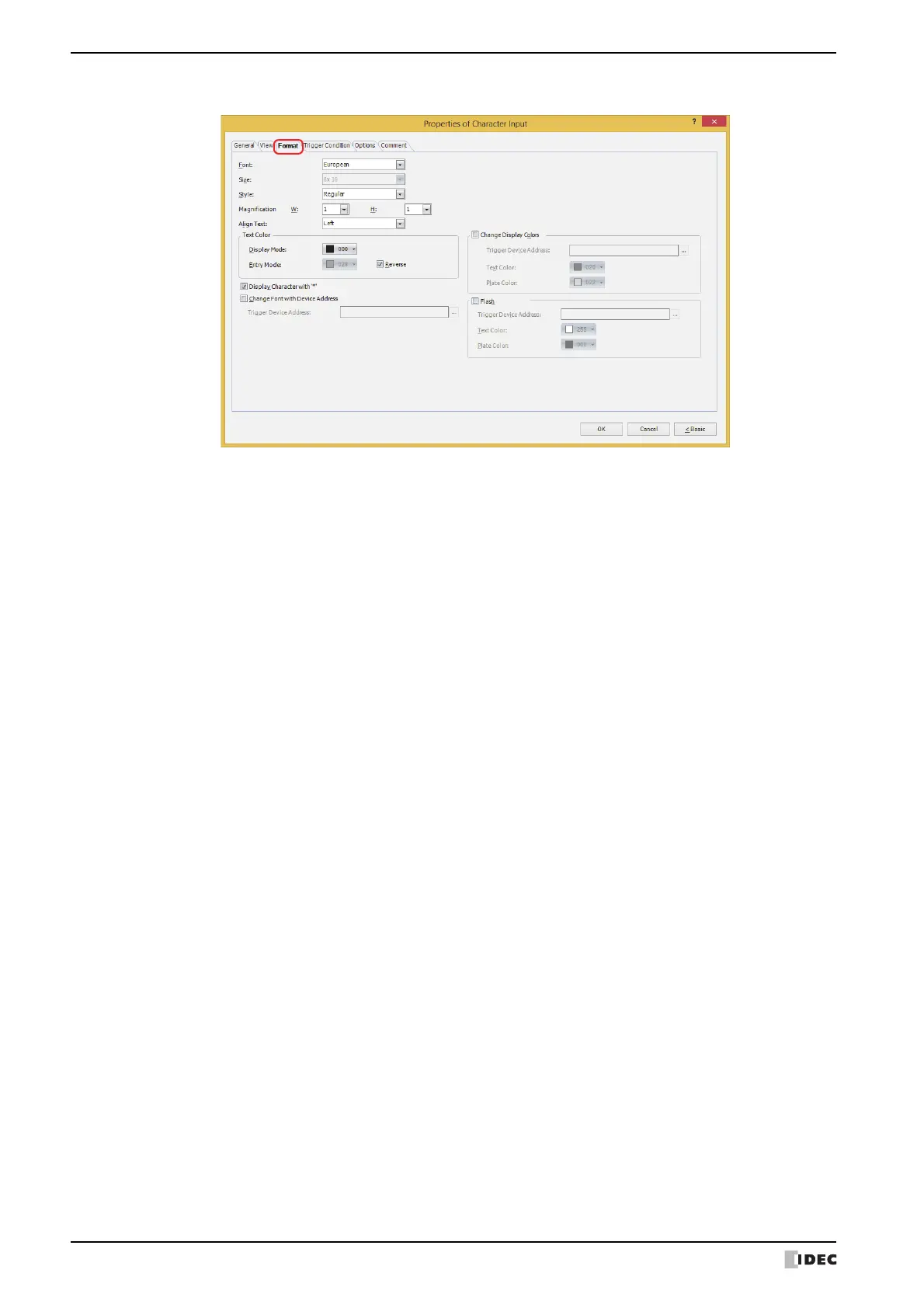

● Format Ta b
■ Font
Selects the font used for displaying text from the following.
Japanese, European, Central European, Baltic, Cyrillic, Stroke
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.2 Available Text” on page 2-6.
■ Size
When Japanese is selected, selects the text size as 8x16 or 16x16.
When Stroke is selected, specifies the text size (8 to 128).
Can only be set when Japanese or Stroke is selected for Font.
■ Style
Selects Regular or Bold for text style.
Can only be set when Japanese, European, Central European, Baltic, or Cyrillic is selected for Font.
■ Magnification
Can only be set when Japanese, European, Central European, Baltic, or Cyrillic is selected for Font.
■ Align Text
Selects the text alignment in the horizontal direction from the following.
Left, Center, Right
For details, refer to Appendix “5 Text Alignment” on page A-7.
■ Text Color
Selects the color of displayed text (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
This option can configure the text color in display mode and in entry mode. However, for Entry Mode text color can
be set only when the Reverse check box is cleared.
■ Reverse
Select this check box to reverse the text color and plate color during display mode when in entry mode.
Can only be set when Standard is selected for Image Type under the View tab.
W, H: Selects text magnification (0.5, 1 to 8).
