WindO/I-NV4 User’s Manual 10-41
2 Character Input
10
Data Displays

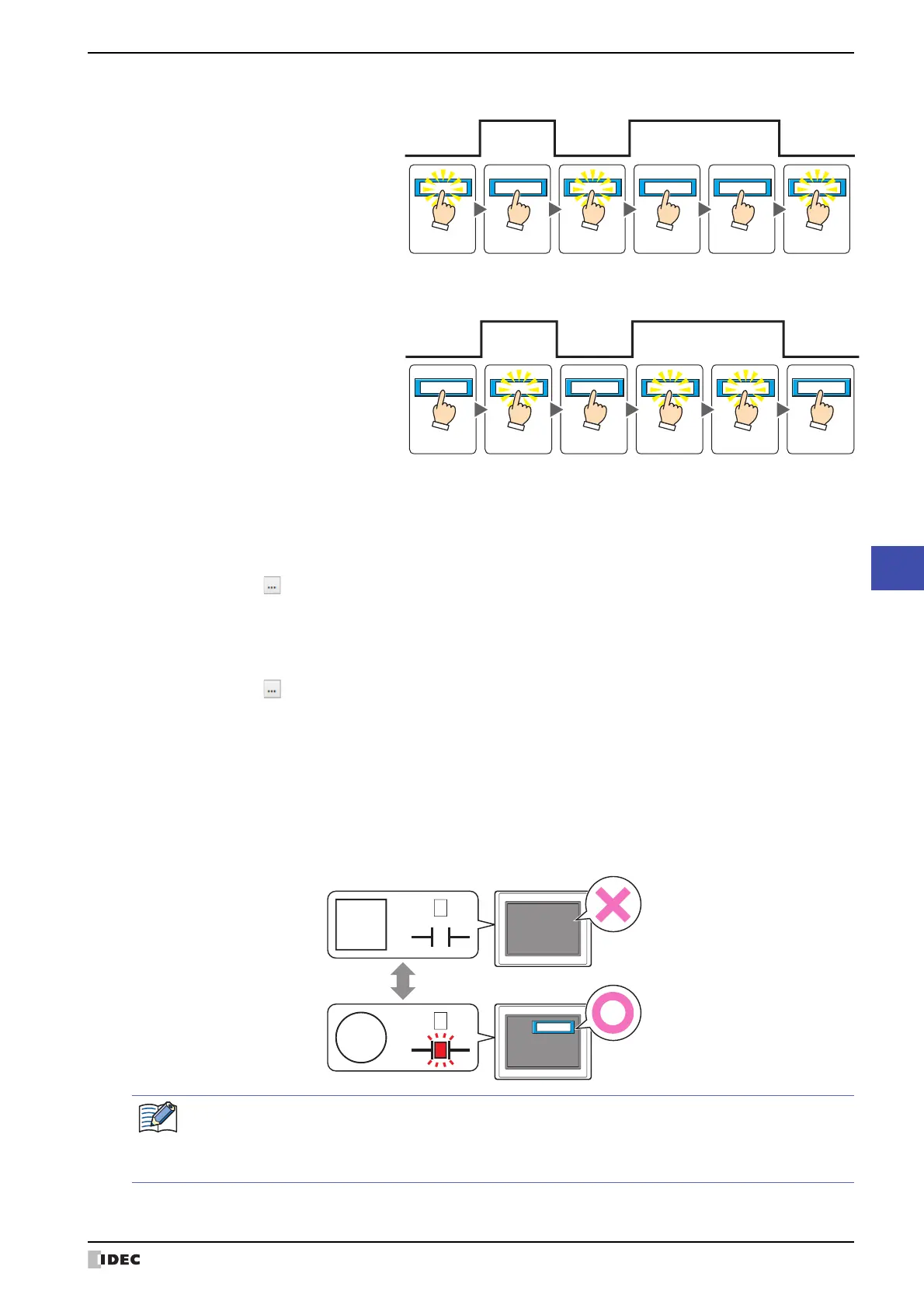

■ Visible Condition
The Character Input is displayed while the condition is satisfied. The Character Input is hidden while the condition is
not satisfied.
While OFF: Enables the Character Input when the value of device address is 0.
While satisfying the condition:
Enables the Character Input when the condition is satisfied.
Data Type: Selects the type of data handled by the conditional expression for the input condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
Device Address:
Specifies the bit device or the bit number of the word device to serve as the input condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-68.
Condition: Specifies the conditional expression for the input condition.
This option can only be configured when While satisfying the condition is selected for Trigger
Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-71.
Comment: Used for entering a comment for the input condition. The maximum number is 80 characters.
1
0
Enabled Enabled EnabledDisabled Disabled Disabled
Value of
Device Address
Character Input
state
IDEC IDEC IDECIDEC IDEC IDEC
Disabled Disabled Disabled
Enabled Enabled Enabled
Satisfied
Not satisfied
Condition
Character Input
state
IDEC IDEC IDEC
IDEC IDEC IDEC
Example: When Trigger Type is While ON and Device Address is LM0
While LM0 is 0, the condition is not satisfied and the Character Input is hidden.
While LM0 is 1, the condition is satisfied and the Character Input is displayed.
LM0
:
MICRO/I
0
LM0
:
1
Show
Condition
Satisfied
Condition
Not
satisfied
IDEC
Hide
• If the Character Input is hidden while entering a value, the input is canceled. If a popup screen
configured as the standard keypad or a keypad is displayed, these screens are closed.
• When multiple Character Inputs are arranged on the screen and the Focus is moved by ENT button
check box is selected, entry mode is canceled if the Character Input is hidden while entering a value.
To Next Page
