2 Character Input
10-40 WindO/I-NV4 User’s Manual

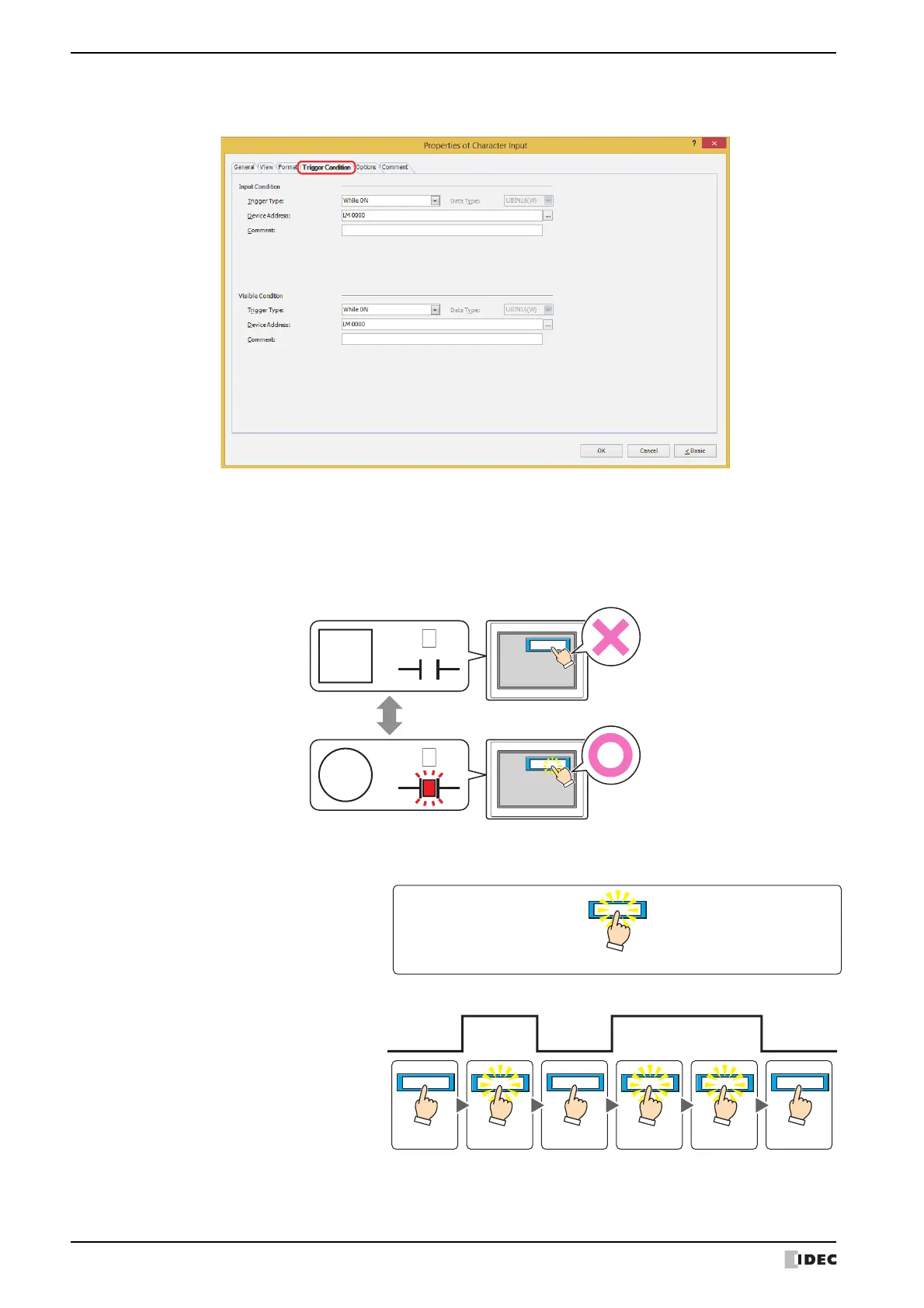

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
■ Input Condition
The Character Input is enabled and operational while the condition is satisfied. The Character Input is disabled and
not operational while the condition is not satisfied.
Example: When Trigger Type is While ON and Device Address is LM0
While LM0 is 0, the condition is not satisfied and the Character Input is not operational.
While LM0 is 1, the condition is satisfied and the Character Input is operational.
Trigger Type: Selects the condition to enable the Character Input from the following.
Always enable: The Character Input is always enabled.
While ON: Enables the Character Input when the value of device address is 1.
LM0
:
MICRO/I
0
LM0
:
1
Operational
Condition
Satisfied
Condition
Not
satisfied
IDEC
IDEC
Not
operational
Always enabled
Character Input
state
IDEC
1
0
Disabled
Enabled
Disabled Disabled
Enabled Enabled
Value of
Device Address
Character Input
state
IDEC
IDEC
IDEC IDEC
IDEC IDEC
