3 Picture Display
10-62 WindO/I-NV4 User’s Manual

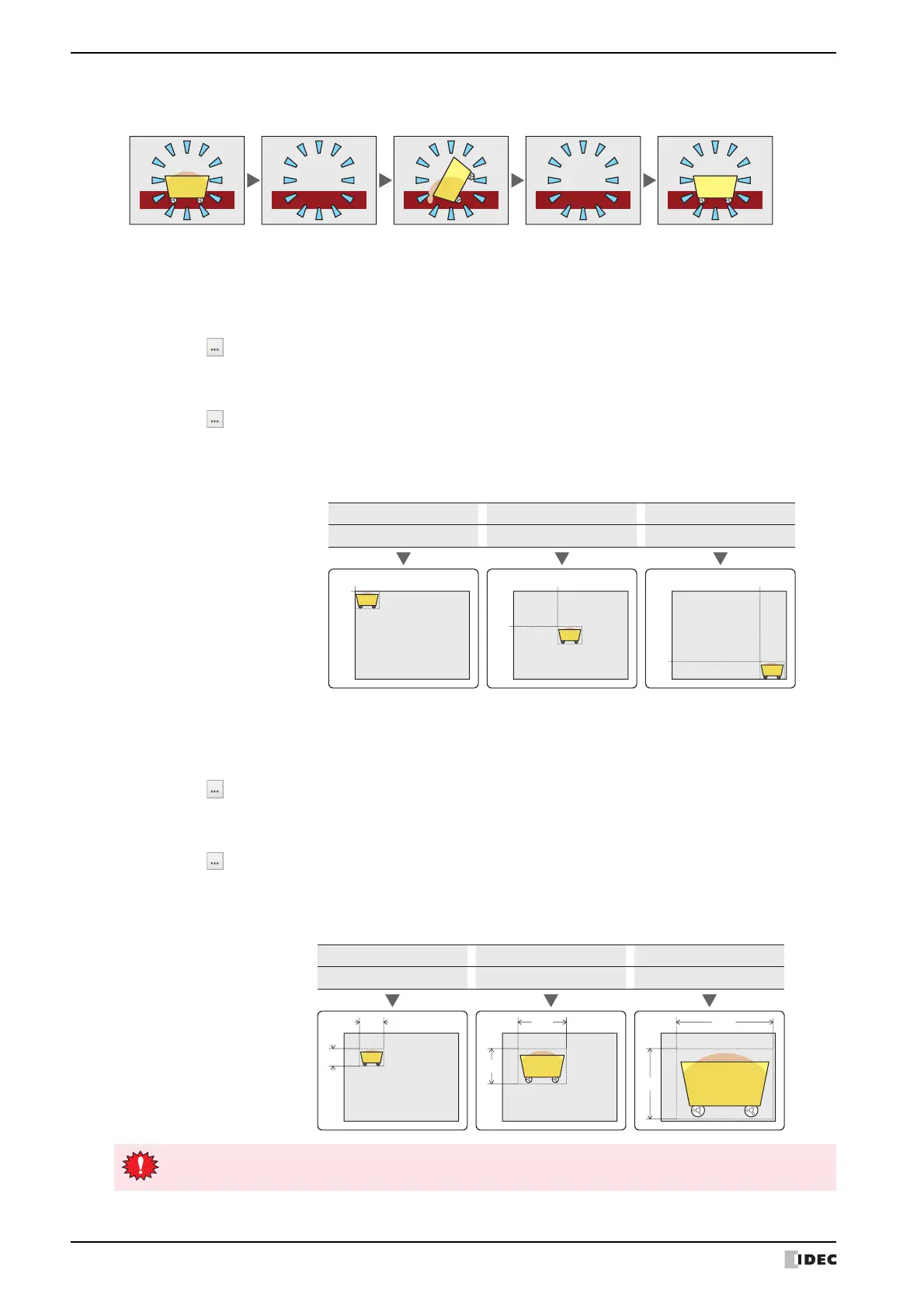

■ Flash
Select this check box to flash the displayed pictures. The picture is repeatedly shown and hidden.
■ Dynamic Position
*1
Select this check box to move and display the picture by specifying the coordinates of the picture as values of device
addresses.
■ Dynamic Size
*1
Select this check box to scale the picture by specifying the size of the picture as values of device addresses.
*1 Advanced mode only
X Point: Specifies the word device that is the X-coordinate of the picture.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1
Device Address Settings” on page 2-68.
Y Point: Specifies the word device that is the Y-coordinate of the picture.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1
Device Address Settings” on page 2-68.
Example: When a device address for the X-coordinate is D100 and a device address for the Y-coordinate is D101
The picture is moved to the values of D100 and D101.
0
0
300
250
600
500
Position of picture to display
Value of the Y-coordinate
device address D101
Value of the X-coordinate
device address D100
0
0
300
250
600
500
Width: Specifies the word device that is the width of the picture.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1
Device Address Settings” on page 2-68.
Height: Specifies the word device that is the height of the picture.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1
Device Address Settings” on page 2-68.
Example: When a device address for the width is D100 and a device address for the height is D101
The picture is displayed with its size scaled to the values of D100 and D101.
The top layer cannot be set when the Dynamic Size check box is selected.
180
120
360
240
720
480
180
120
360
240
720
480
Size of picture to display
Value of
Height Device Address D101
Value of
Width Device Address D100
