5 Message Display
10-106 WindO/I-NV4 User’s Manual
■ Change Display Colors
To switch the text and plate colors, select this check box and select the method to the display colors from the
following.
*1 Advanced mode only
Specify Color: Switches the text and plate to the specified colors.

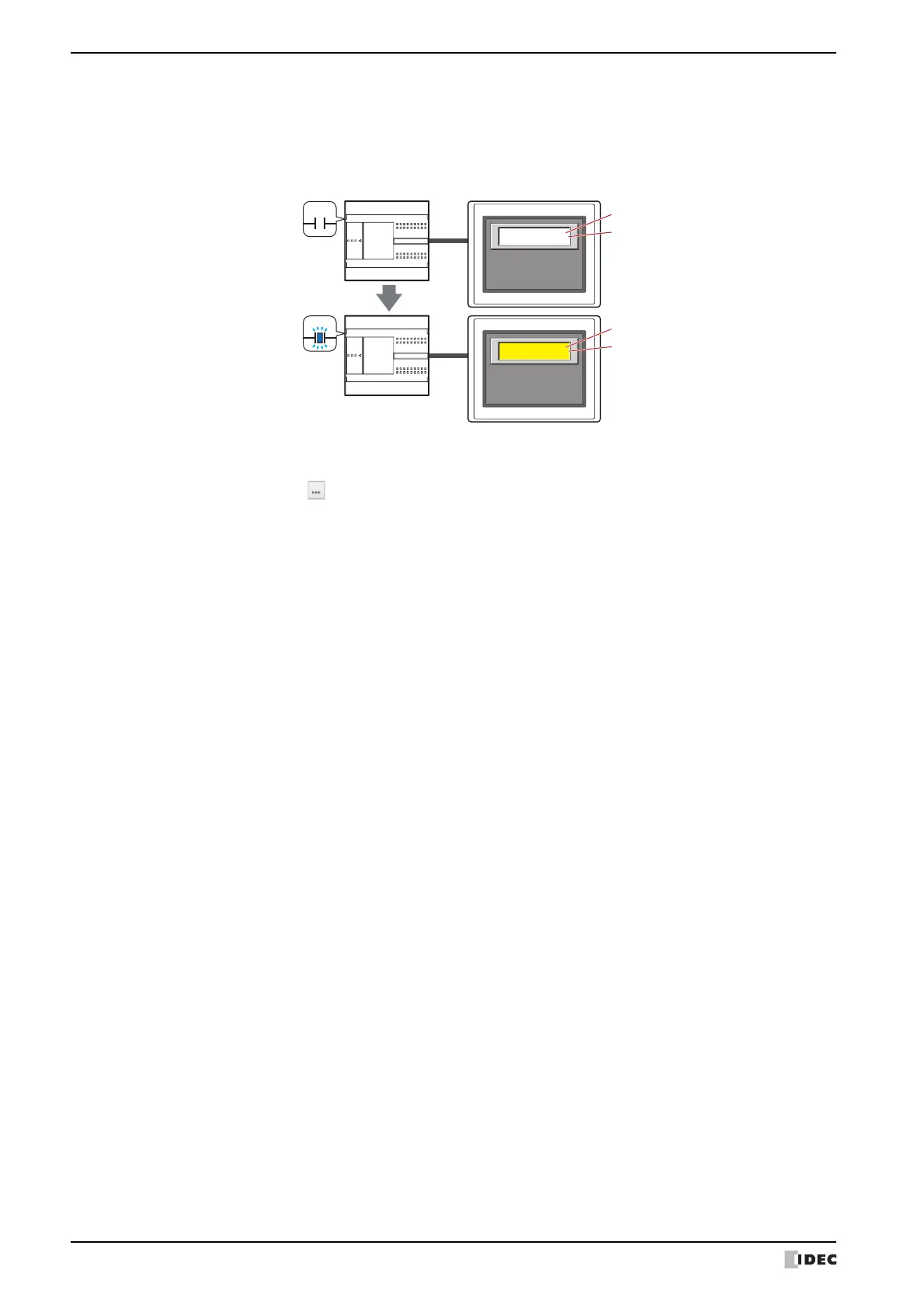

Trigger Device Address: Specifies the bit device or the bit number of the word device to use as the trigger to switch
the text and plate colors.
Click to display the Tag Editor. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-68.
When the value of device address is 0, the color specified in Text Color or in Plate Color
on the View tab will be displayed.
When the value of device address is 1, the color displayed and specified in Text Color or
Plate Color under the Specify Color.
Text Color: Selects the color (color: 256 colors, monochrome: 16 shades) of the text when switching.
Click this button to display the Color Palette. Select a color from the Color Palette.
Plate Color: Selects the plate color (color: 256 colors, monochrome: 16 shades) when switching.
Click this button to display the Color Palette. Select a color from the Color Palette.
This option can only be configured when Standard is selected for Image Type on the View
tab.
MICRO/I
HGSERIES
HGSERIES
0
1
Trigger Device Address
Trigger Device Address
External device
Text Color
Plate Color on the View tab
Text Color under Specify Color
Plate Color under Specify Color
