IDEC MICRO/I HG1P-ST32 Series - Page 713

WindO/I-NV4 User’s Manual 10-107
5 Message Display
10
Data Displays
Specify Color by Device Address: Specifies the text and plate colors by the value of the device
address.
Device Address: Specify the word device that stores the color data for the text or plate.
Click to display the Tag Editor. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-68.
This uses address number+1 to specify the text and plate colors when the
Flash check box has been selected.

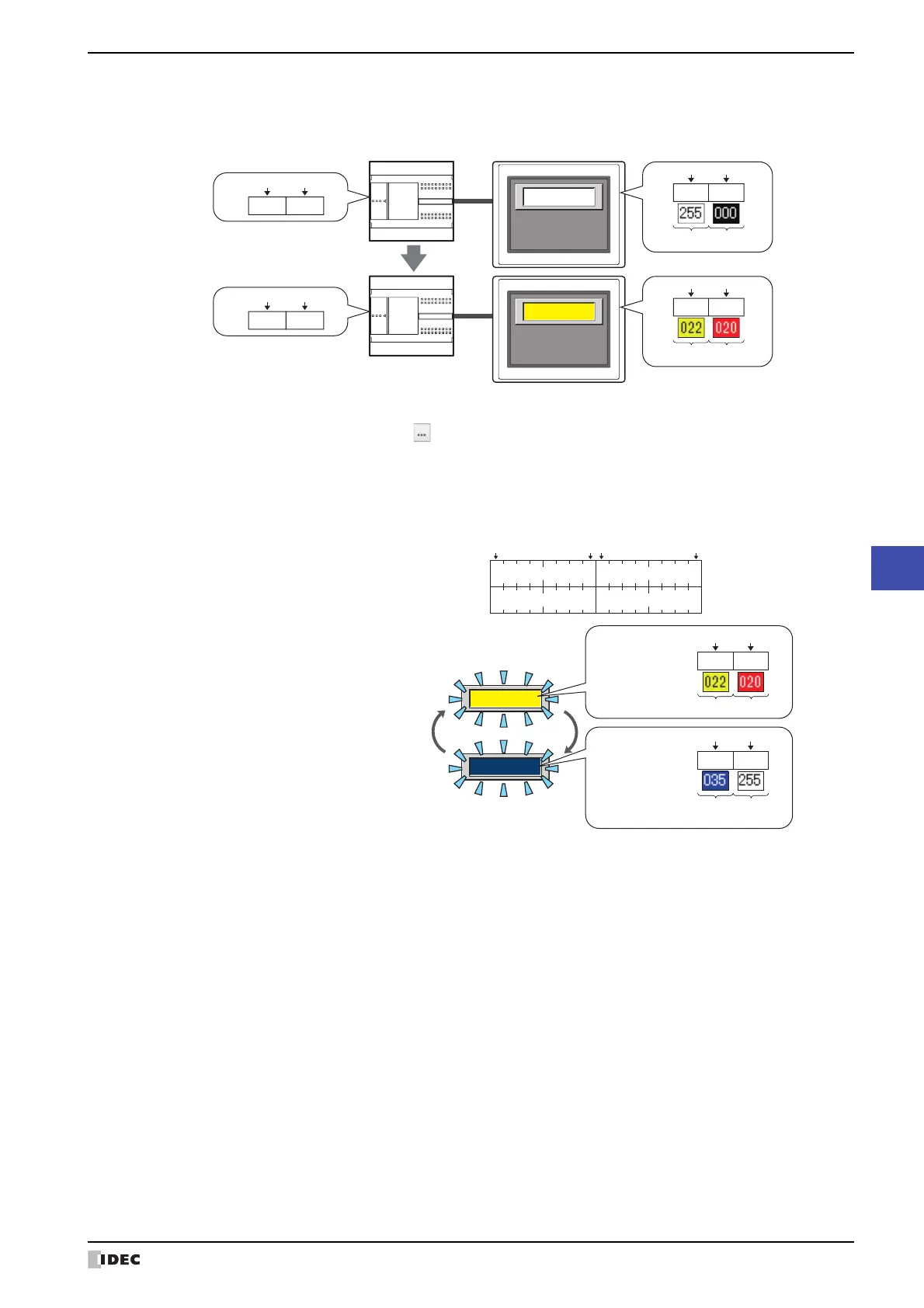

Color data assignments that are stored to device addresses are given below.
For color data, refer to Appendix “1 Color Number” on page A-1.
D0=
Lower byteUpper byte
0x00
Lower byteUpper byte
0xF7
D0=
Lower byteUpper byte
0x140x16
D0
0x00
0xF7
Lower byteUpper byte
D0
0x14
0x16
HGSERIES
HGSERIES
MICRO/I External device
Text colorPlate color
Text color
Plate color
Device Address
bit bit
15 8
bit
7
bit
0
Upper byte
Plate color
Device Address
Text color
Plate color when flashing
Device Address+1
Text color when flashing
Lower byte
HGSERIES
HGSERIES
Flashing
Lower byteUpper byte
0x14
0x16
Lower byteUpper byte
0xF7
0x23
Text colorPlate color
Device Address
Device Address+1
Text color
when flashing
Plate color
when flashing
