WindO/I-NV4 User’s Manual 10-127
6 Message Switching Display
10
Data Displays
■ Change Display Colors
Select this check box to switch the text and plate colors.
Trigger Device Address: Specifies the bit device or the bit number of the word device to use as the trigger to switch
the text and plate colors.
Click to display the Tag Editor. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-68.
When the value of device address is 0, the color specified in Text Color or in Plate Color
on the View tab will be displayed.
When the value of device address is 1, the color displayed and specified in Text Color or
Plate Color
under the Change Display Colors.
Text Color: Selects the color (color: 256 colors, monochrome: 16 shades) of the text when switching.
Click this button to display the Color Palette. Select a color from the Color Palette.
Plate Color: Selects the plate color (color: 256 colors, monochrome: 16 shades) when switching.
Click this button to display the Color Palette. Select a color from the Color Palette.
This option can only be configured when
Standard
is selected for
Image Type
on the
View
tab.

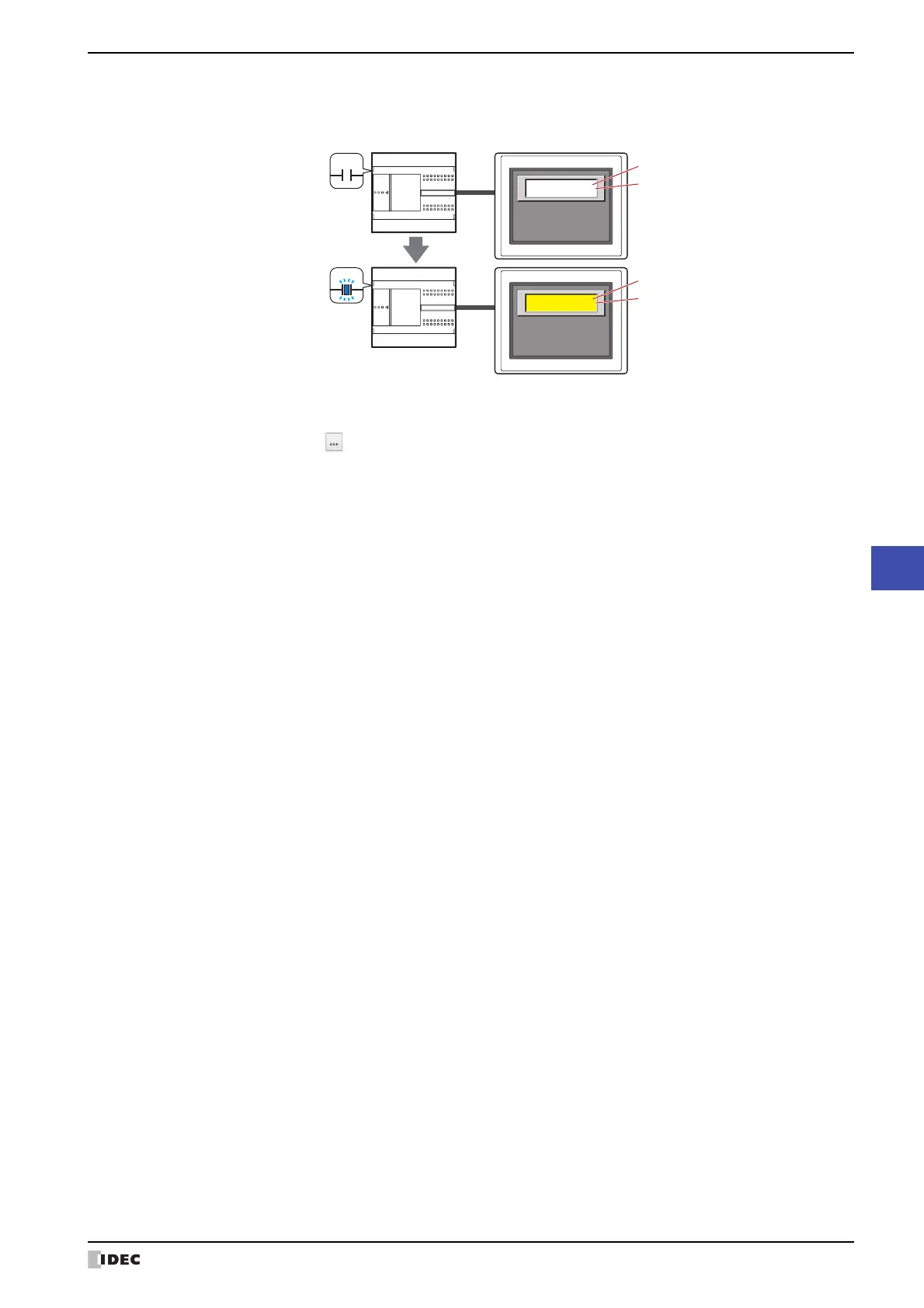

MICRO/I
0
1
Trigger Device Address
Trigger Device Address
External device
HGSERIES
HGSERIES
Text Color
Plate Color on the View tab
Text Color under Change Display Colors
Plate Color under Change Display Colors
