9 Numerical Display
10-174 WindO/I-NV4 Users Manual

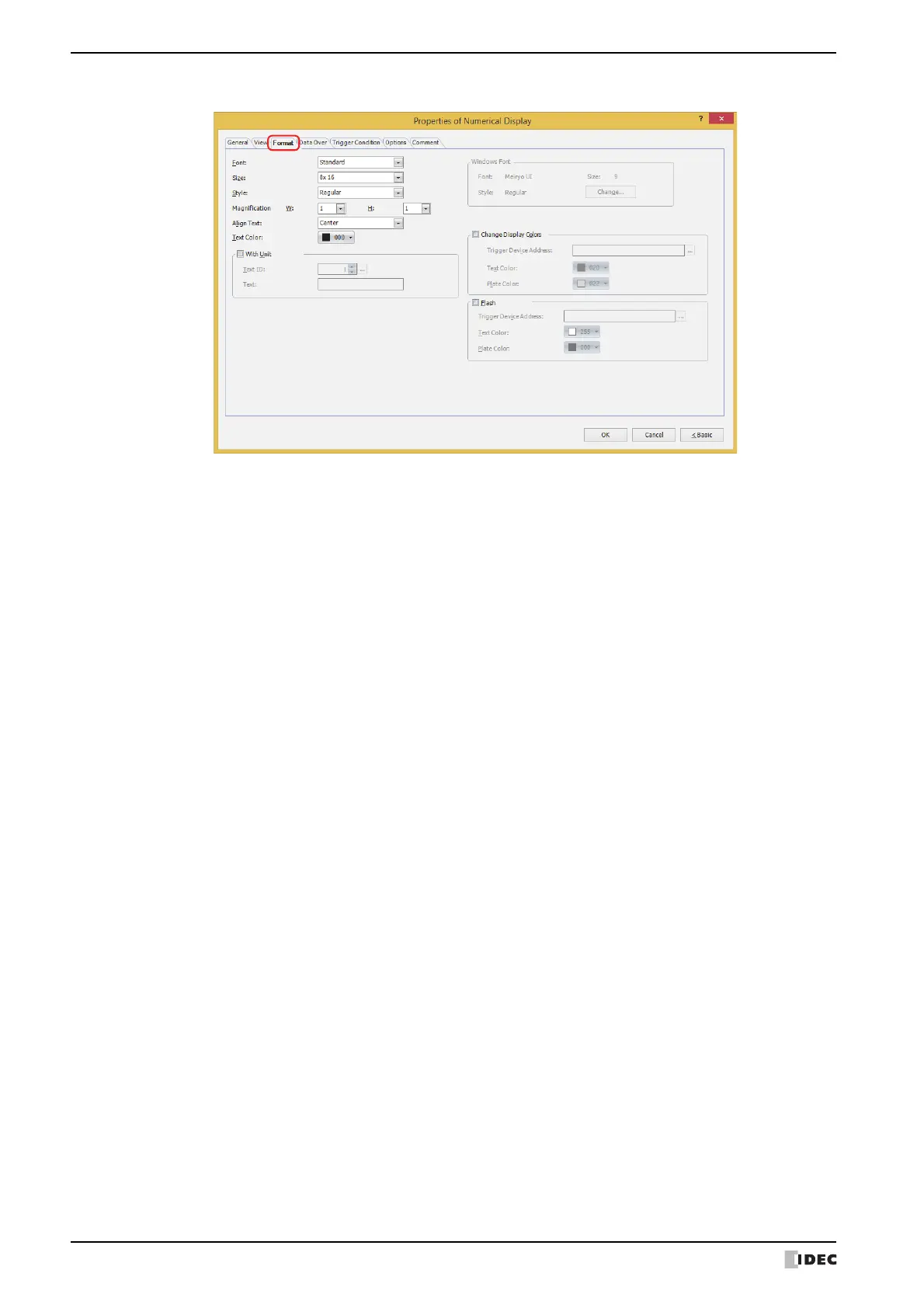

Format Ta b
Font
Selects the font used for displaying text from the following.
Standard, Windows, Stroke, 7-Segment
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.2 Available Text” on page 2-6.
Size
When Standard is selected, selects the text size as 8x16 or 16x16.
When Stroke or 7-Segment is selected, specifies the text size (8 to 128).
Style
Selects Regular or Bold for text style.
Can only be set when Standard is selected for Font.
Magnification
Can only be set when Standard is selected for Font.
Align Text
Selects the text alignment in the horizontal direction from the following.
Left, Center, Right
For details, refer to Appendix “5 Text Alignment” on page A-7.
Text Color
Selects the color of displayed text (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
W, H: Selects text magnification (0.5, 1 to 8).
