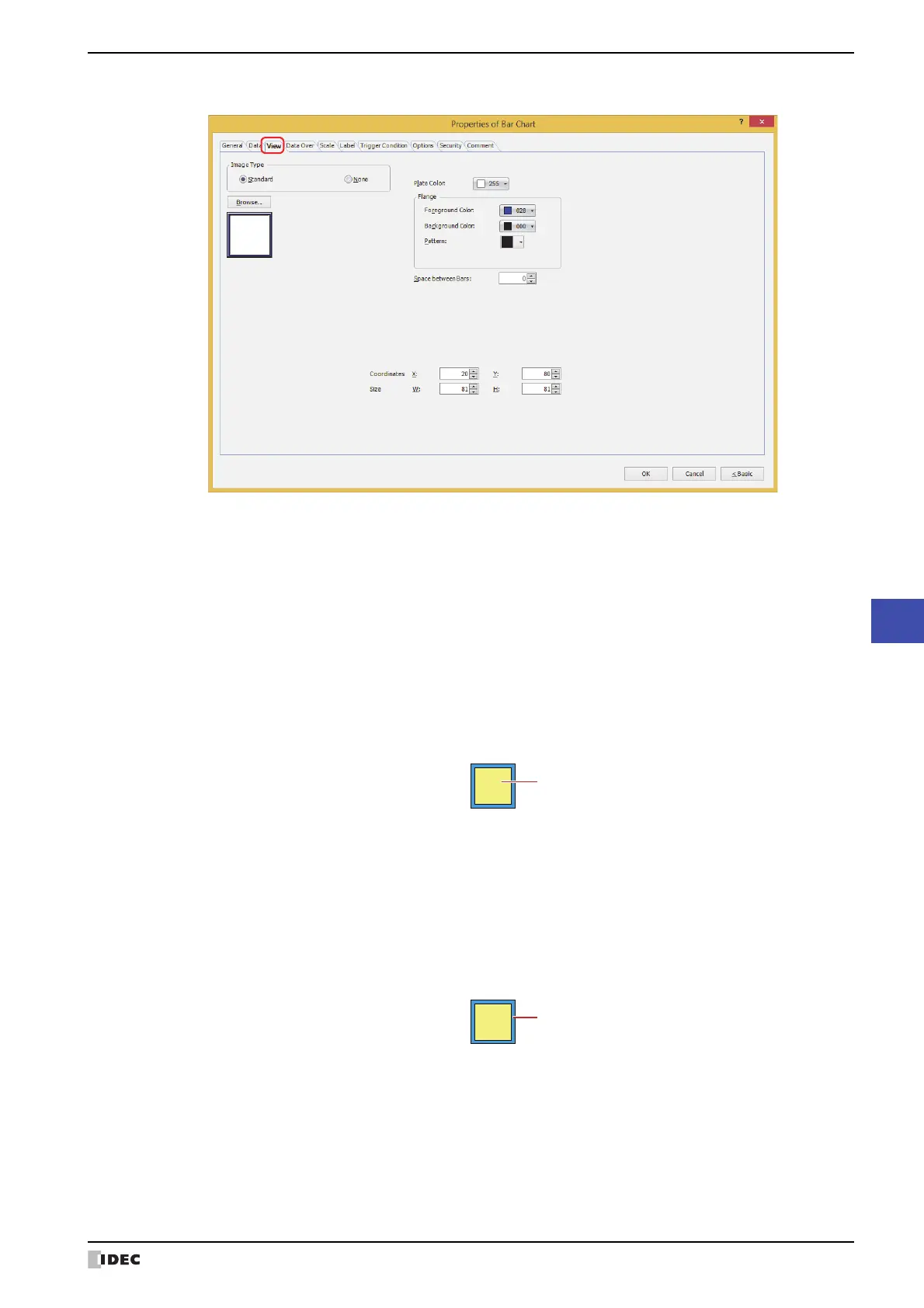

WindO/I-NV4 Users Manual 11-7
1 Bar Chart
11
Charts
View Ta b
Image Type
Select the type of graphic to be used to represent the part.
Browse
Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser.
Plate Color
Selects the plate color of the standard graphic (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Flange
Standard: Uses the default graphic for WindO/I-NV4.
None: The plate and the flange of the part are not displayed.
Plate color
Foreground Color, Background Color: Selects the foreground and background colors of the flange of the standard
graphic (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange of the standard graphic.
Click Pattern to display the Pattern Palette. Select a pattern from the Pattern
Palette.
Flange
