WindO/I-NV4 User’s Manual 11-11
1 Bar Chart
11
Charts

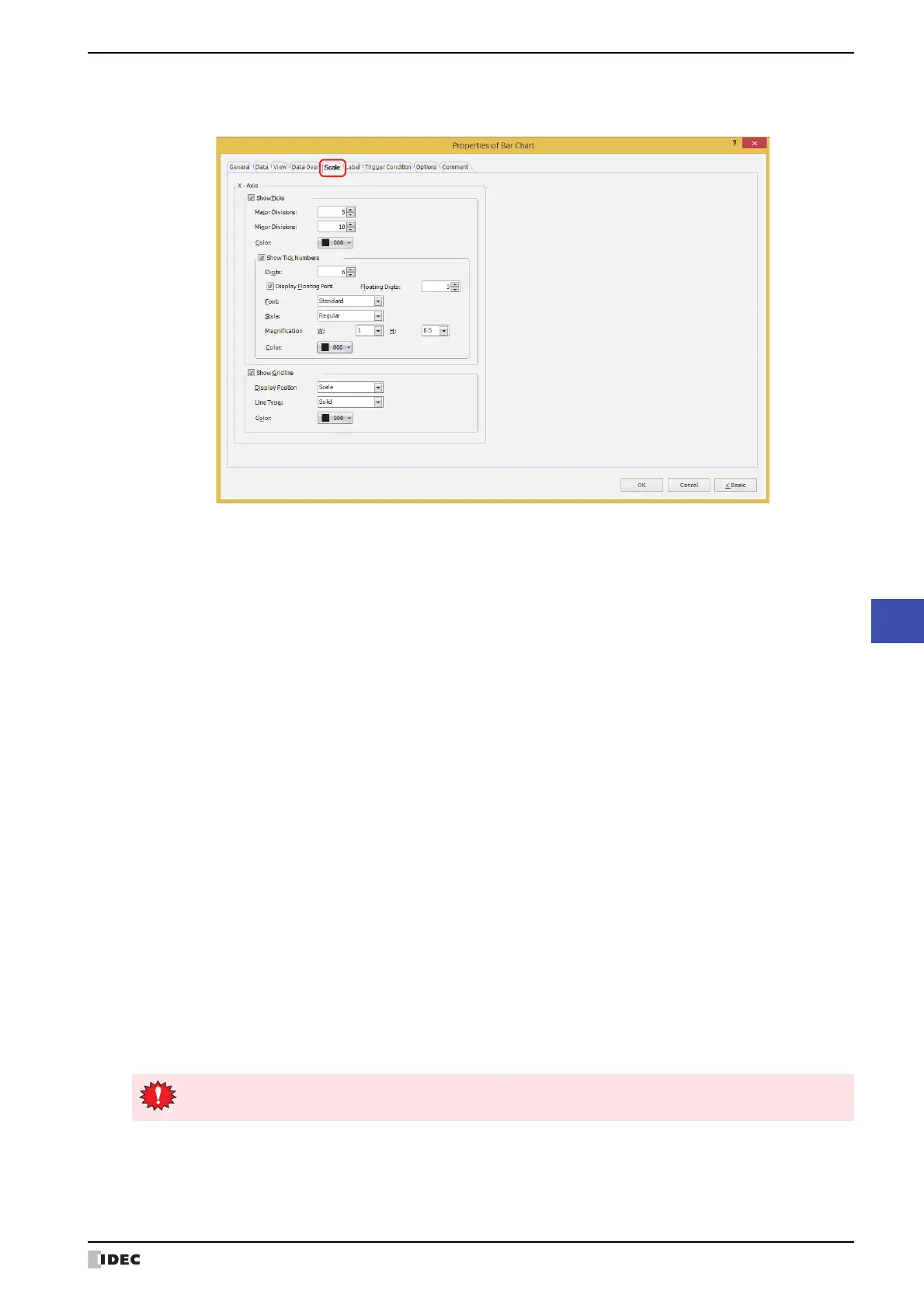

● Scale Tab
The Scale tab is displayed in Advanced mode.
The options on the Scale tab vary based on the type selected with Chart Type on the General tab.
Horizontal Bar, Horizontal Peak: X-Axis
Vertical Bar, Vertical Peak: Y-Axis
■ Show Ticks
Select this check box to display a scale on a chart.
Major Divisions: Enter the number of major scale divisions (1 to 20).
Minor Divisions: Enter the number of minor scale divisions (1 to 20).
Color: Selects the color of scales (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Show Tick Numbers: Select this check box to display numbers along the scale.
Digits: Sets the number of digits to be displayed (1 to 10).
Can only be set when Float32(F) is selected for Data Type under the
General tab.
Display Floating Point: Select this check box to display a floating point along the scale.
Can only be set when Float32(F) is selected for Data Type under the
General tab.
Floating Digits: Sets the number of digits for the fractional parts of numbers (1 to 8)
from the number of digits specified for Digits.
Can only be set when the
Display Floating Point
check box is selected.
Font: Selects the font used for displayed text from the following.
Standard, Stroke, 7-Segment
The characters that can be displayed depend on the font. For details,
refer to Chapter 2 “1.2 Available Text” on page 2-6.
Style:
Selects
Regular
or
Bold
for the character style to be displayed.
Can only be set when
Standard
is selected for
Font
.
Magnification W, H: Selects magnification (0.5, 1 to 8) for the displayed text.
Can only be set when
Standard
is selected for
Font
.
Size: Sets character size (8 to 128) for displayed text.
Can only be set when Stroke or 7-Segment is selected for Font.
Color:
Selects the color of displayed text (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
If the area for displaying the scale is small, the scale will not be displayed properly.
