WindO/I-NV4 User’s Manual 11-37
2 Line Chart
11
Charts
Data No.: Out of the data contained in the selected Data Log channel number, specifies the data number to
display on the chart (1 to 128).
Double clicking the cell allows you to edit the data number.
Line Type: Selects the type of line from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Double clicking the cell allows you to change the chart line type.
Line Size: Selects the line size from the following.
1 dot, 2 dots, 3 dots, 5 dots
Double clicking the cell allows you to change the chart line size.
Line Color: Selects the line color for the chart (color: 256 colors, monochrome: 16 shades).
Double clicking the cell displays the Color Palette where you can change the chart line color.
You can register the settings from arbitrary numbers, they are aligned filled from the beginning after clicking
OK on the dialog box. Therefore, when the Properties dialog box is closed and reopened, the list is
displayed filled from the beginning.

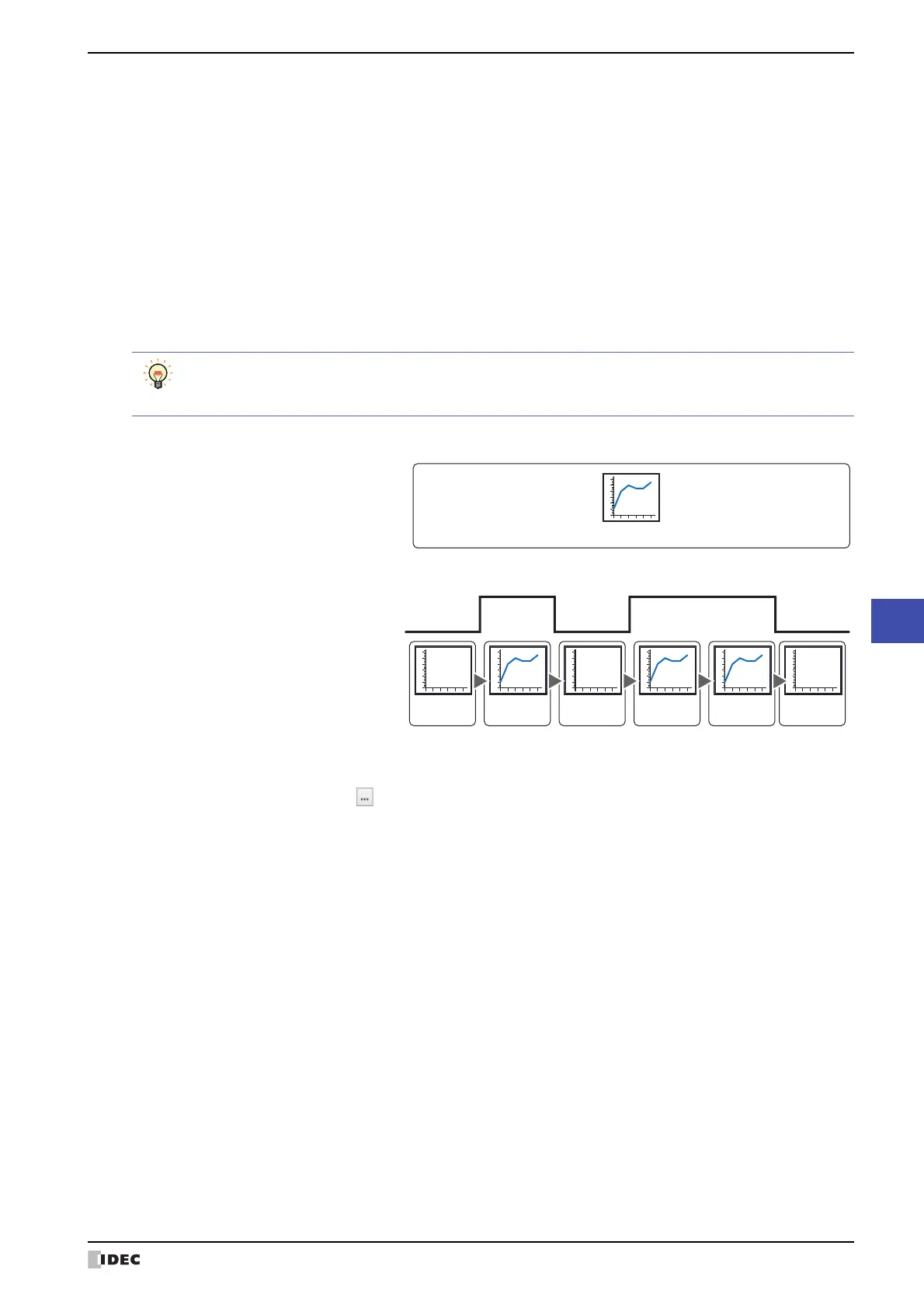

Trigger Type: Always visible: Always display the graph.
While ON: The graph is displayed when the value of device address is 1.
Device Address: Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-68.
Add: Adds a channel to the list. Up to 20 channels total for all Y-axis.
Up: Shifts the selected settings upward in the list.
Down: Shifts the selected settings downward in the list.
Remove: Deletes the selected contents from the list.
Data Log Settings: Displays the Data Log Settings dialog box where you can configure the channel
while checking the data to display.
Always show chart
Chart state
0
20
40
60
80
100
-20
1
0
Hide chart Show chart Hide chart Show chart Show chart Hide chart
Chart state
Value of
device address
0
20
40
60
80
100
-20
0
20
40
60
80
100
-20
0
20
40
60
80
100
-20
0
20
40
60
80
100
-20
0
20
40
60
80
100
-20
0
20
40
60
80
100
-20
To Next Page
