2 Line Chart

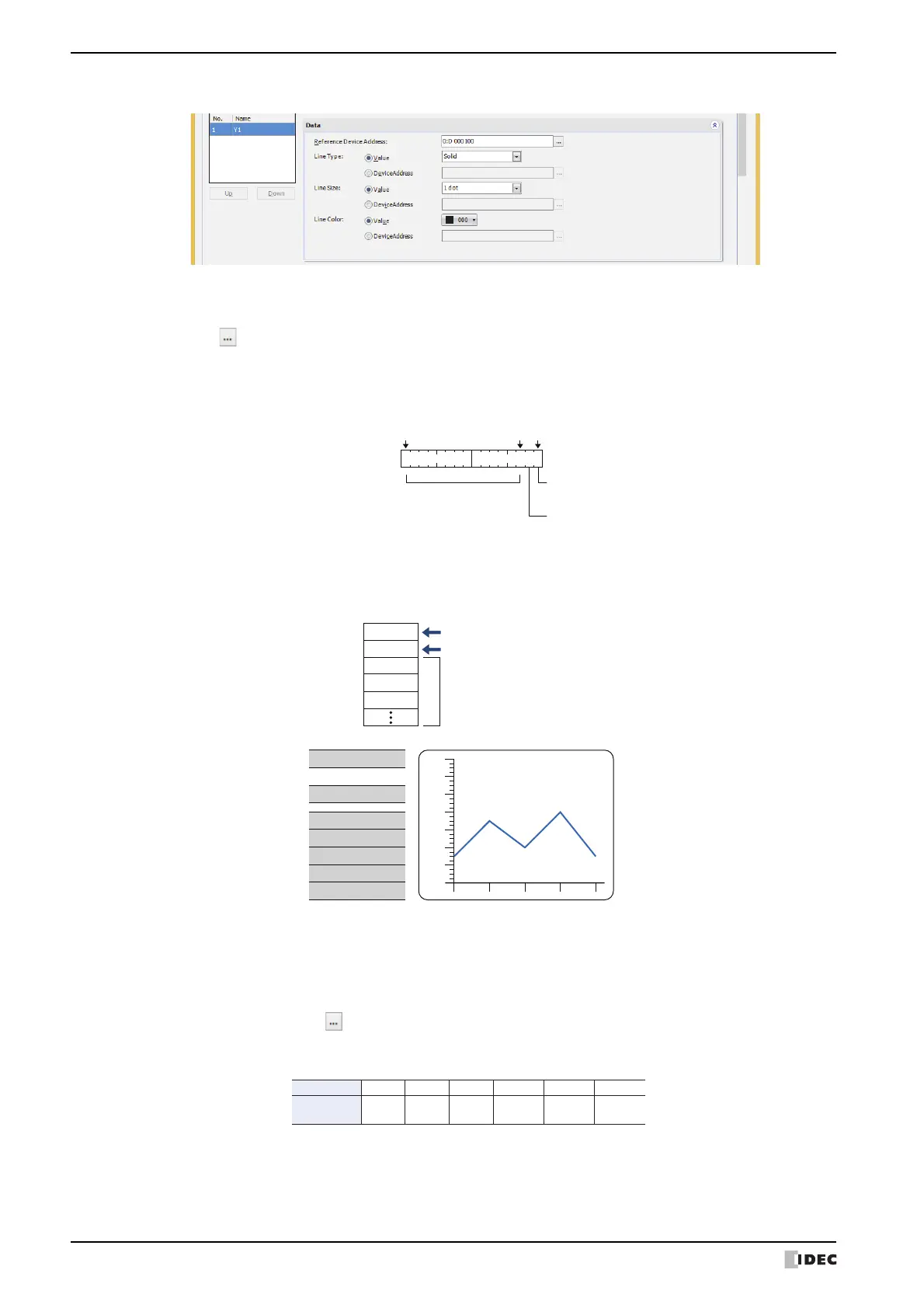

11-38 WindO/I-NV4 User’s Manual
■ Data
*3
*3 This option can only be configured when Device Address Display is selected from Chart Type on the General tab.
Reference Device Address:
Specifies the start address number of the data to display on the chart.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1
Device Address Settings” on page 2-68.
The data size for the device addresses is 16 bits.
Updating and erasing the display is controlled by the lower 2 bits of the start address number value
(control status).
The number of values of device addresses to display is specified by the value of start address number + 1.
The values of device addresses from start address number + 2 are displayed on the chart.
Example: If Reference Device Address is set to D100, continuous device addresses are used starting
from D100. The used device addresses are as follows.
Line Type: Specifies the type of line. You can also specify it using the value of device address.
Value: Selects the type of line from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Device Address: Specifies the line type using the value of device address.
Click to display the Tag Editor. For the device address configuration procedure, refer
to Chapter 2 “5.1 Device Address Settings” on page 2-68.
Line type is as follows:
The line will be displayed with Solid when the value of device address is not 1 to 6 or
when the line width is not 1 (1 dot).
Bit 15 Bit 0
Bit 2
0 : Do not update
1 : Update
0 : Do not erase
1 : Erase
Reserved
D100
D101
D102
D103
D104
Control status (display operation)
Number of data to display values of device addresses on chart
Data to display values of device addresses on chart
(Start address number)
+1
+2
+3
+4
D106
D105
D104
D103
D102
D101
D100
10
50
20
60
10
1
5
D102
D103
Values of device addresses Displayed chart
D104
D105
D106
0
20
40
60
80
100
-20
120
Preset Value 123 4 5 6
Line Type Solid Dot Dash
Long Dash
Long Dash
Dot
Long Dash
Dot Dot
